Theatrixx xVision SDI Repeater True1 - XVVSDI2SDIT1

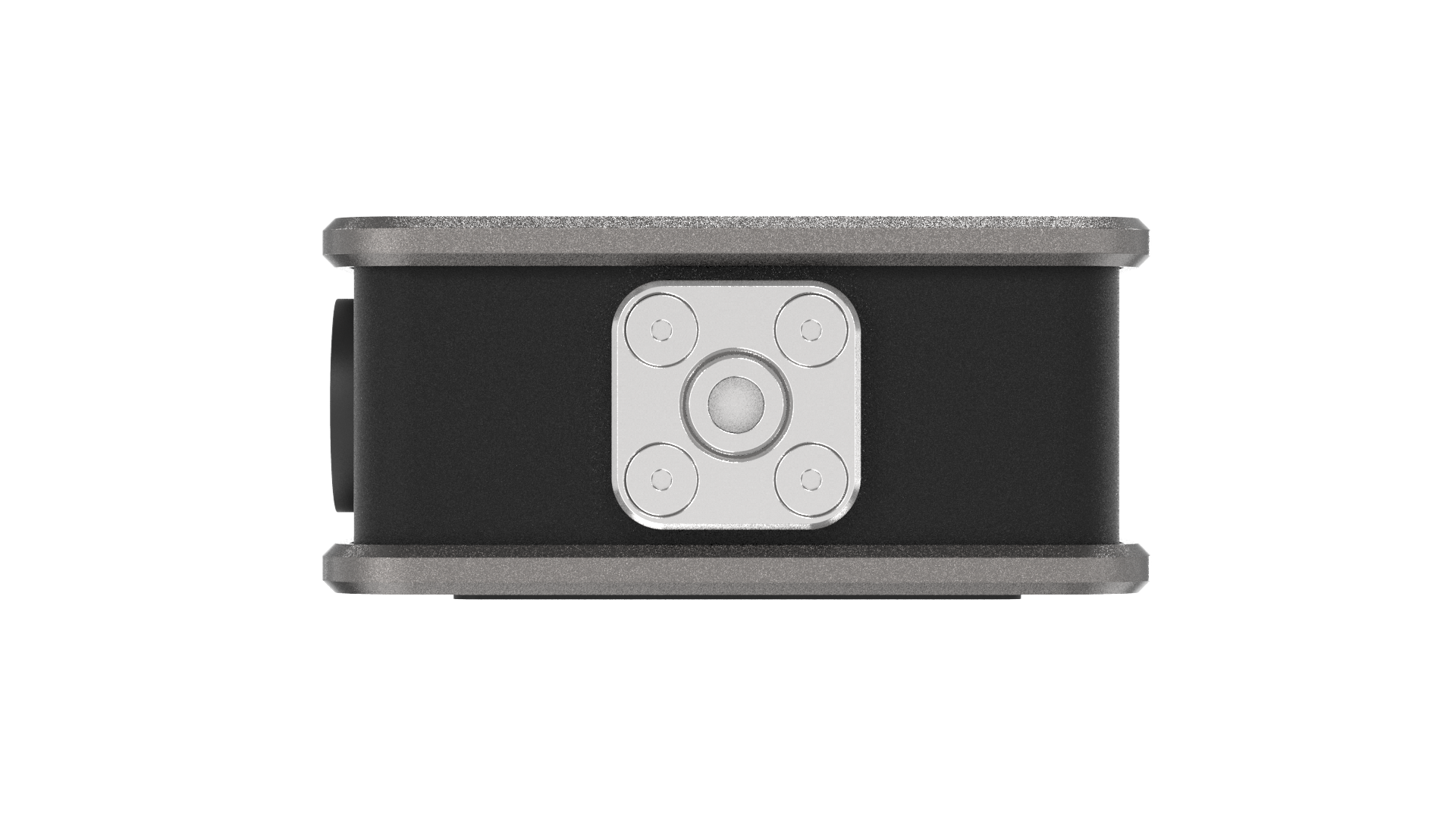

XVVSDI2SDIT1 is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It restores signal budget on a long BNC run. Input is 2 x 3G/HD/SD SDI BNC and output is 2 x 3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M, 292 M, 259 M.

Power is Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
