Theatrixx xVision SDI to HDMI - XVVSDI2HDMI

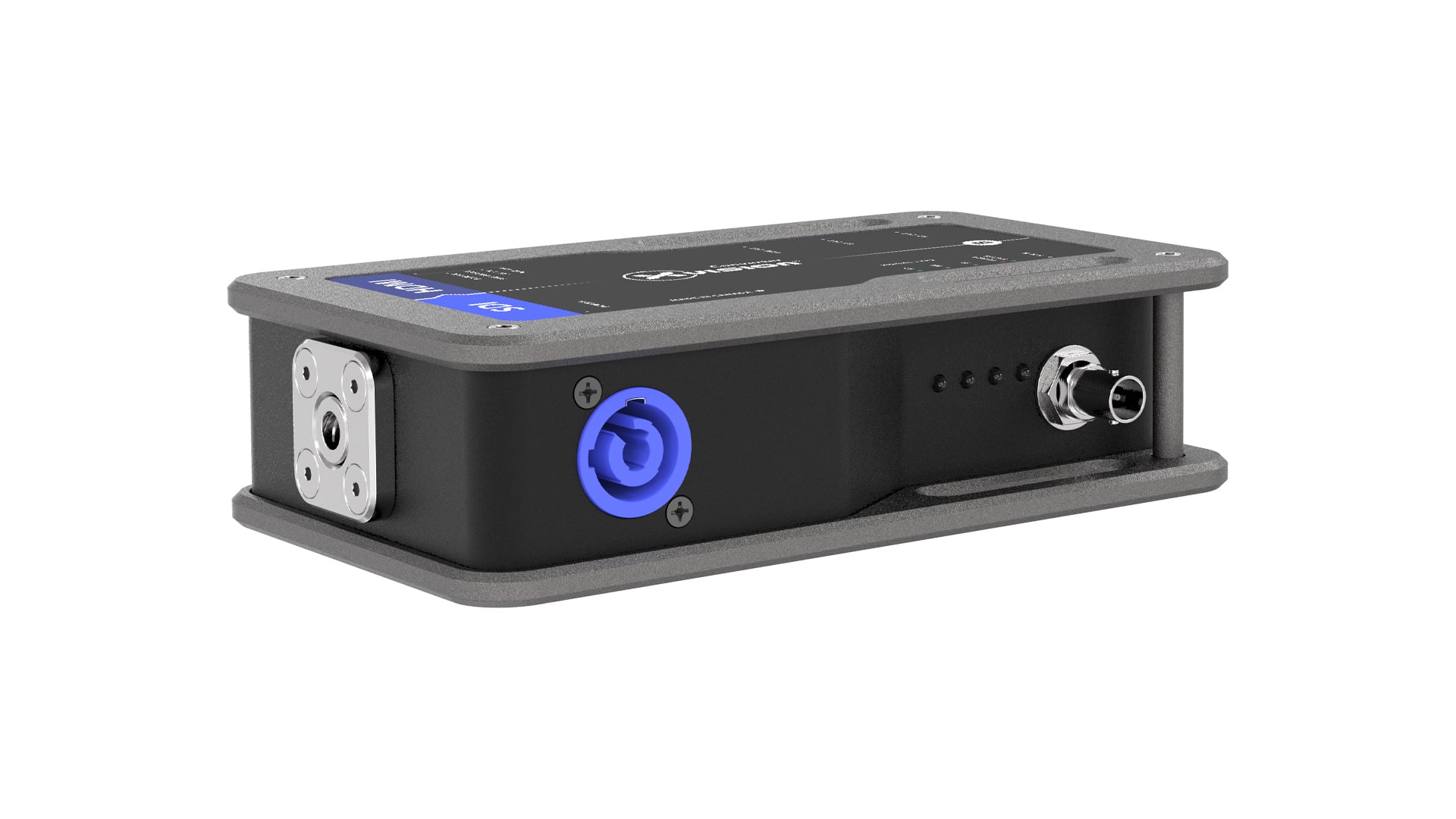

XVVSDI2HDMI is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It drives an HDMI display, projector or recorder from an SDI feed. Input is x 3G/HD/SD SDI BNC. Signal handling follows SMPTE 425M Level A & B, 424M Level A, 292M, 259M.

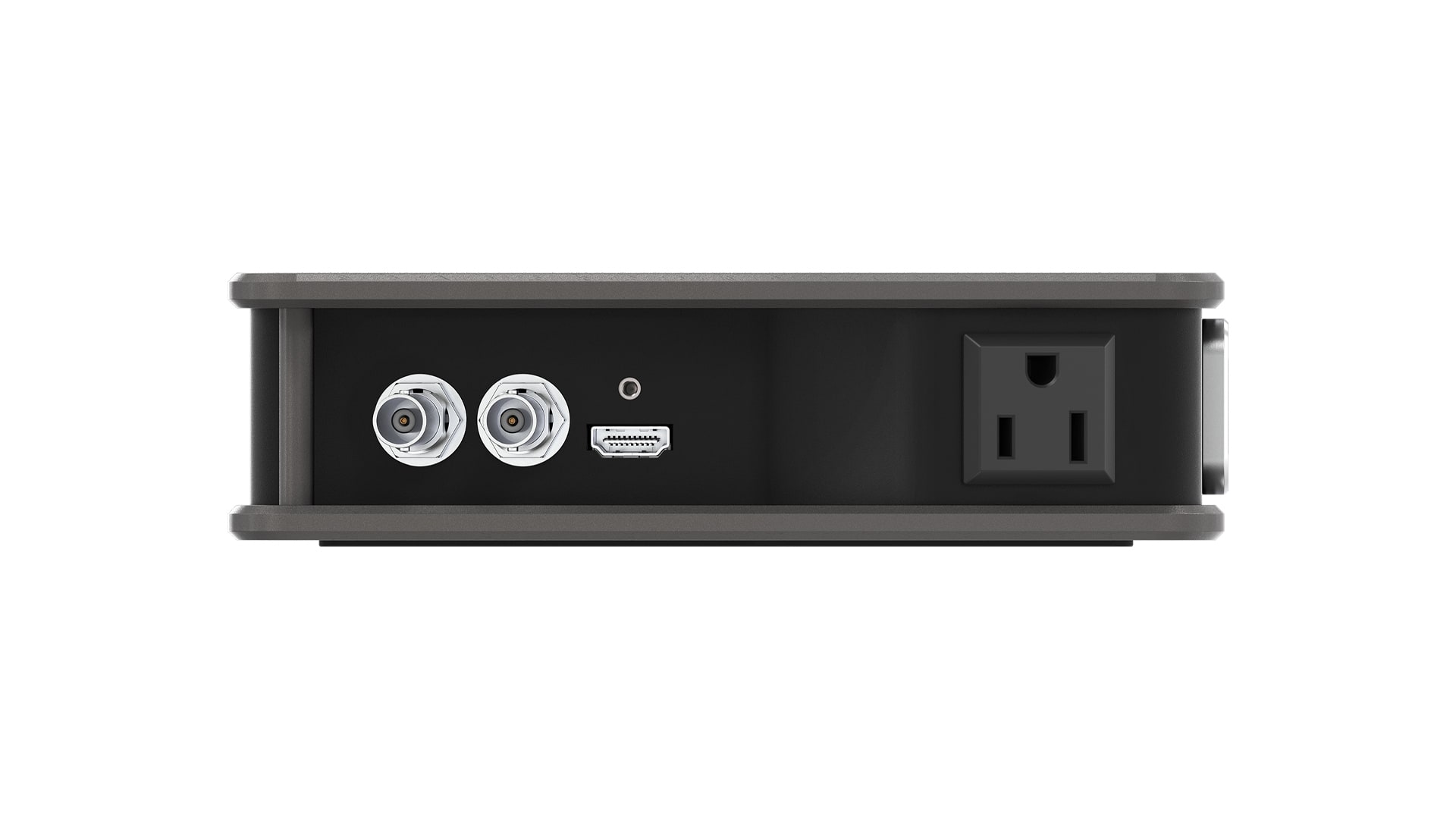

Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop. In the box: xVision Converter SDI to HDMI, AC Mains to PowerCON cable (1.5m, specify plug type at ordering)).
