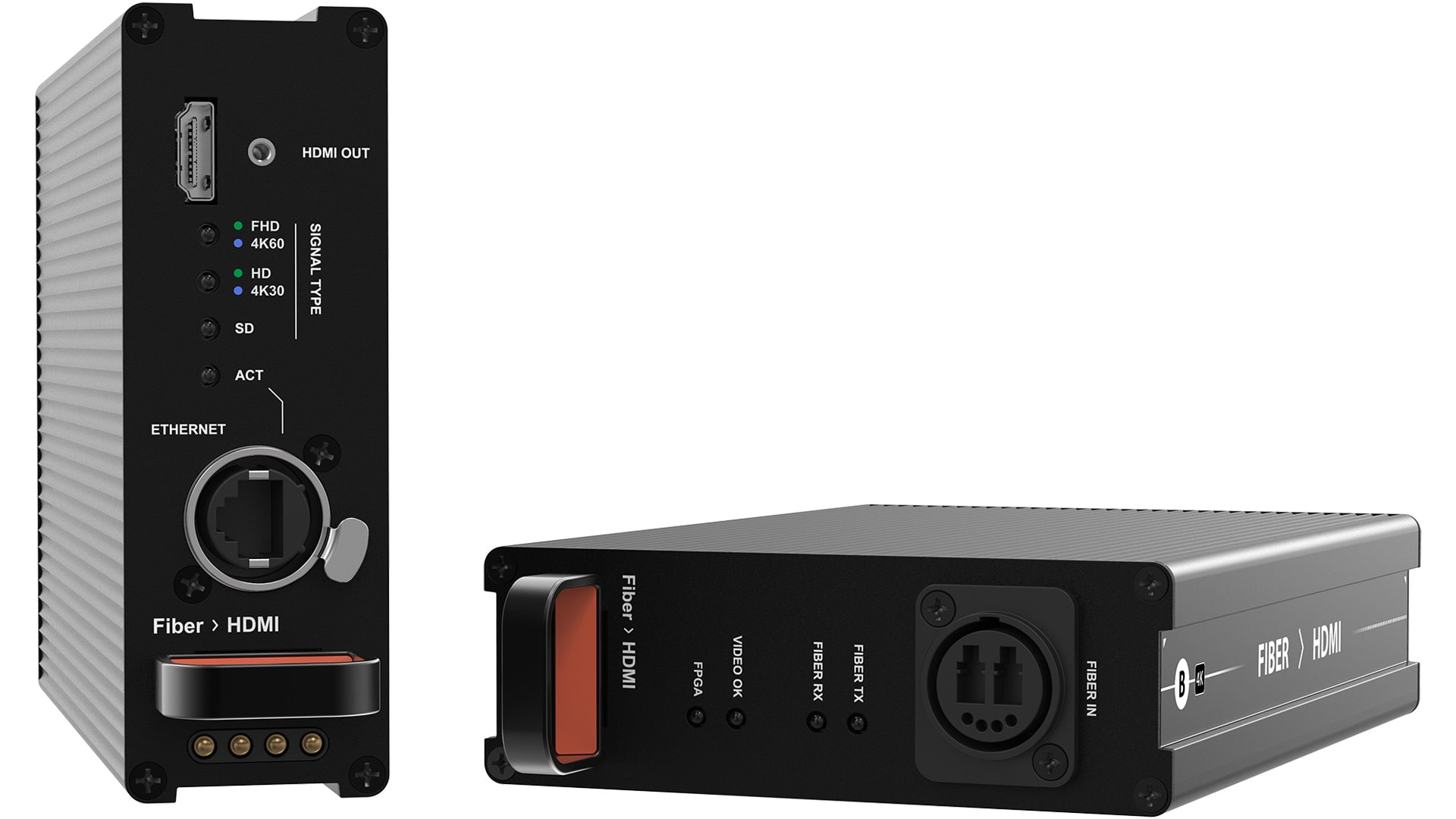

Theatrixx xVision Fiber to HDMI Reversible Module - XVVRMFIBER2HDMI Rack

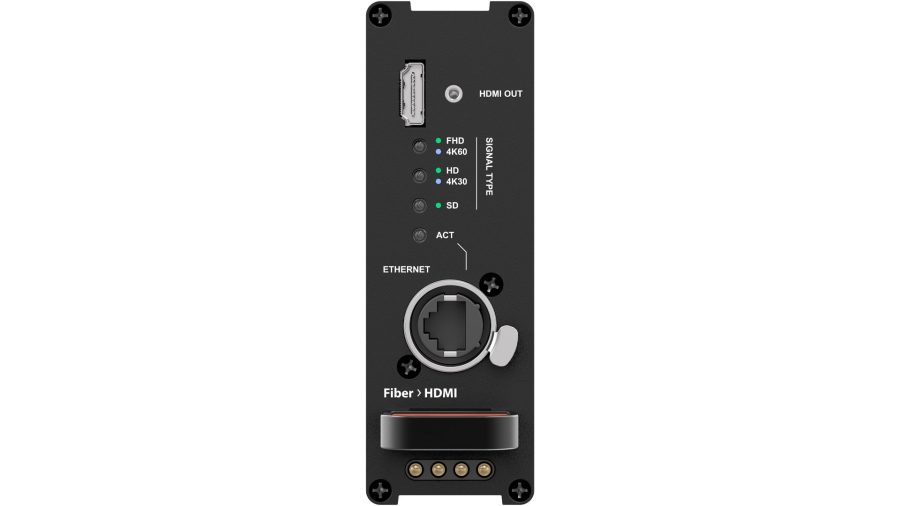

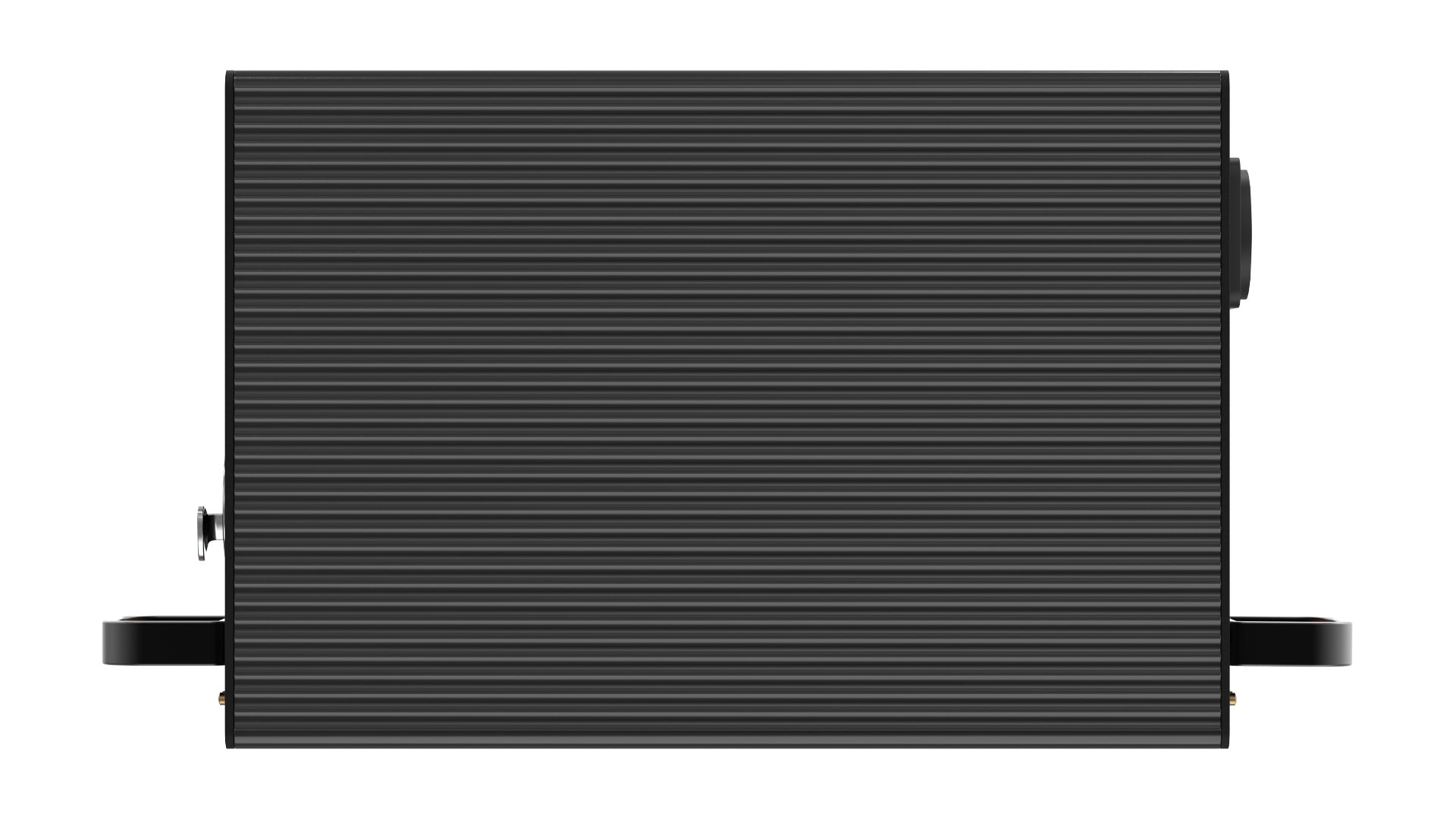

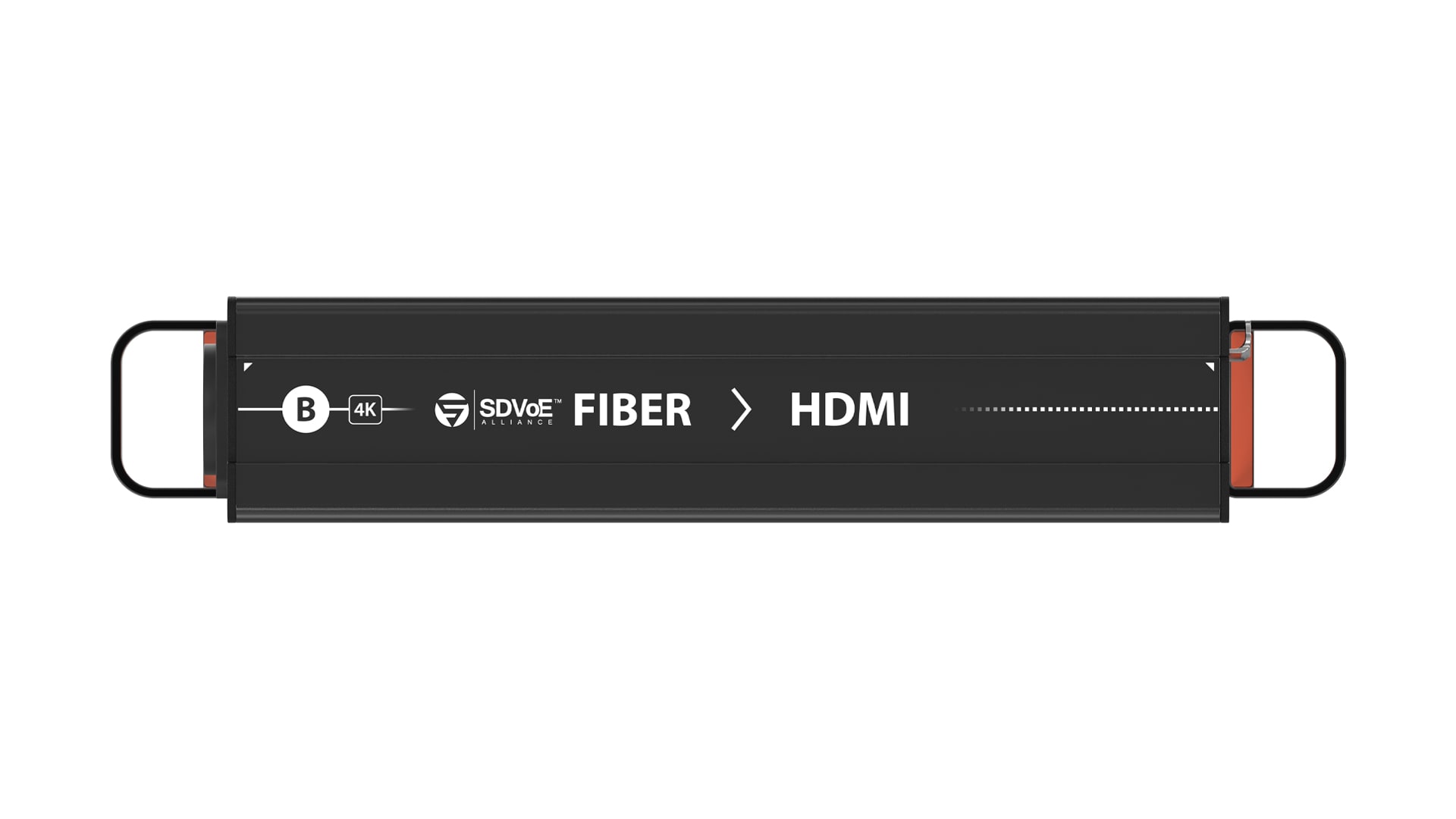

XVVRMFIBER2HDMI is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It brings a fiber run back to copper at the far end. Input is optical SDI, singlemode or multimode, on ST, opticalCON DUO or opticalCON QUAD and output is 1 x HDMI 2.0 type A with locking system.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
