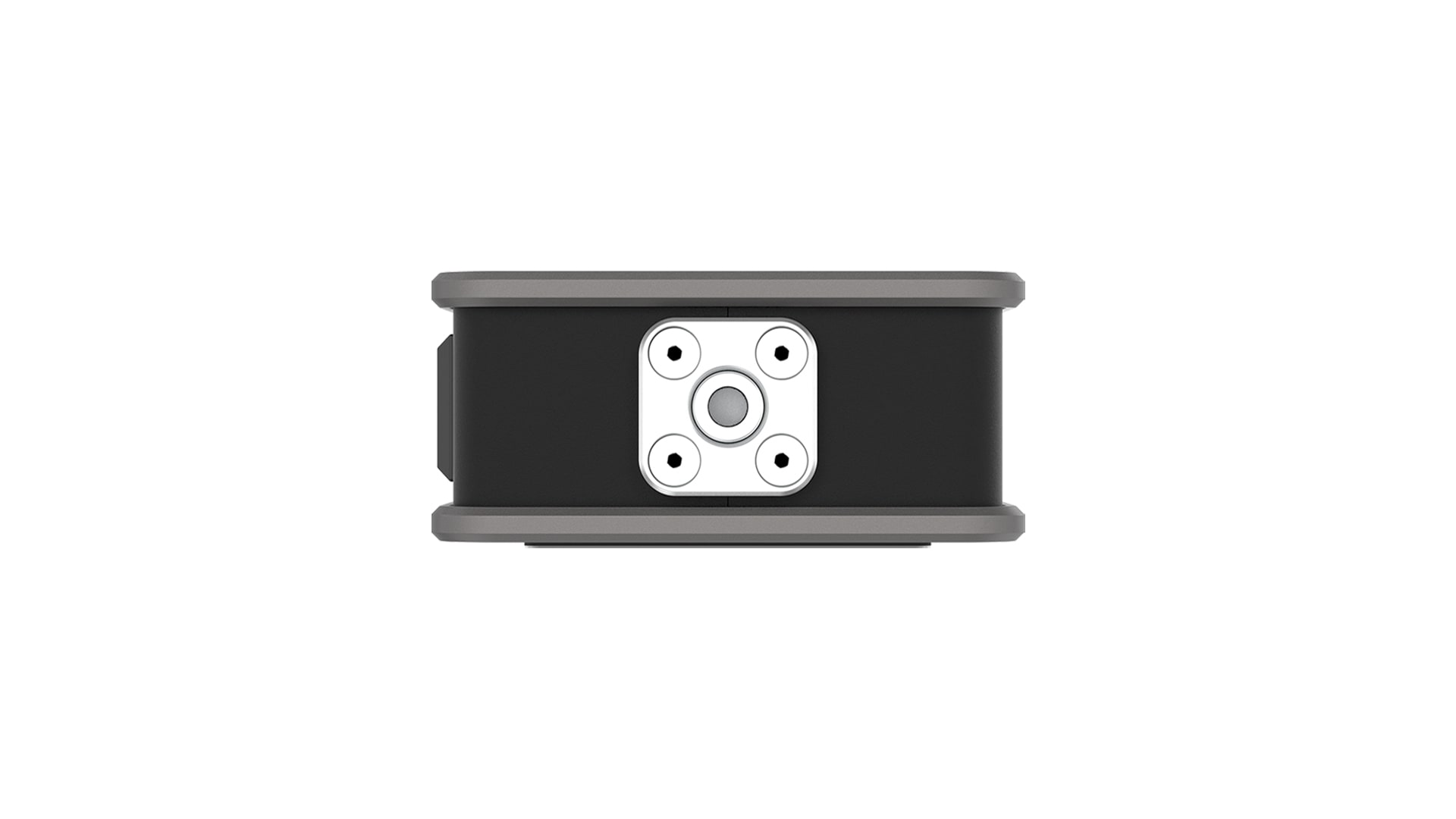

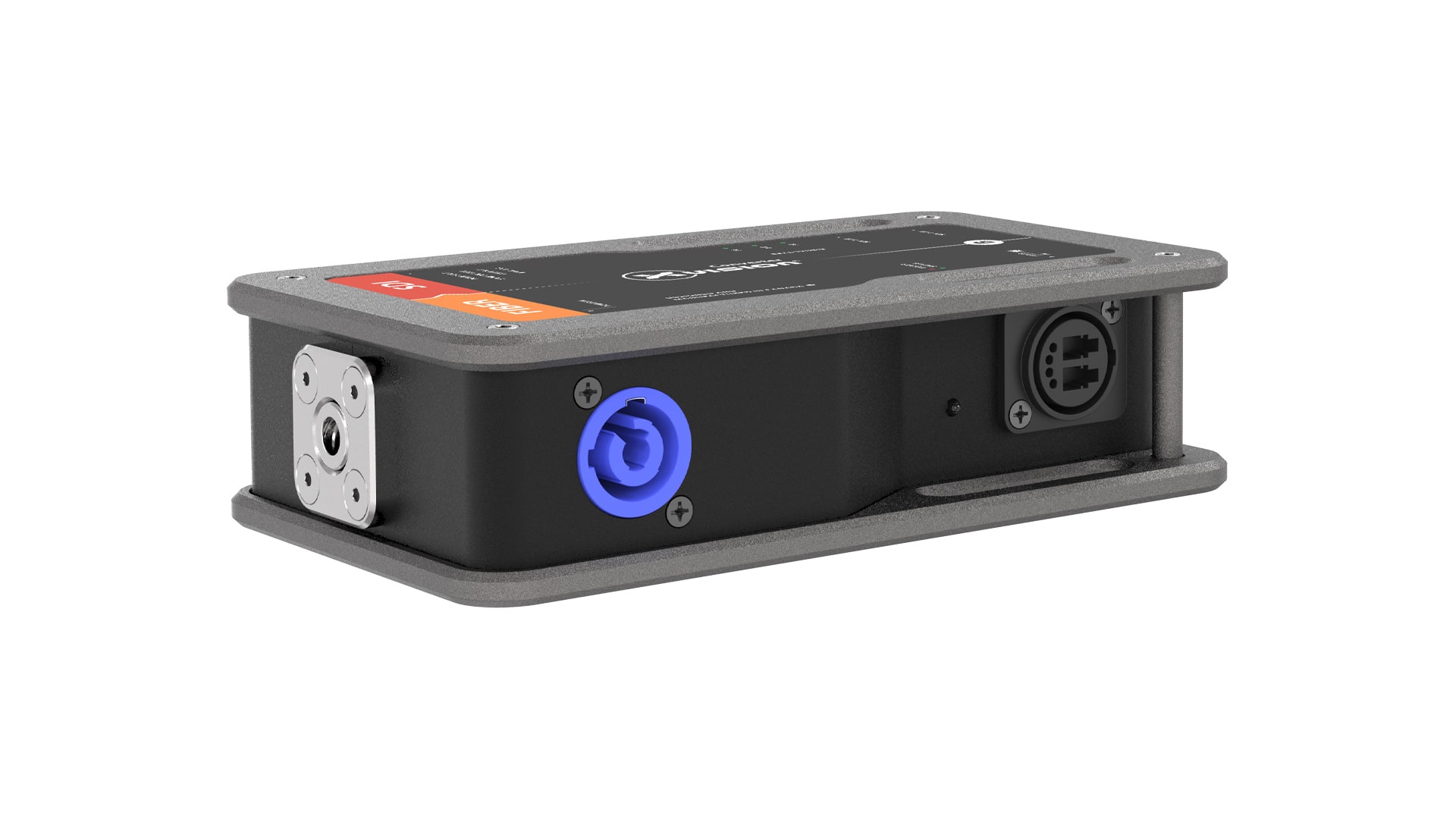

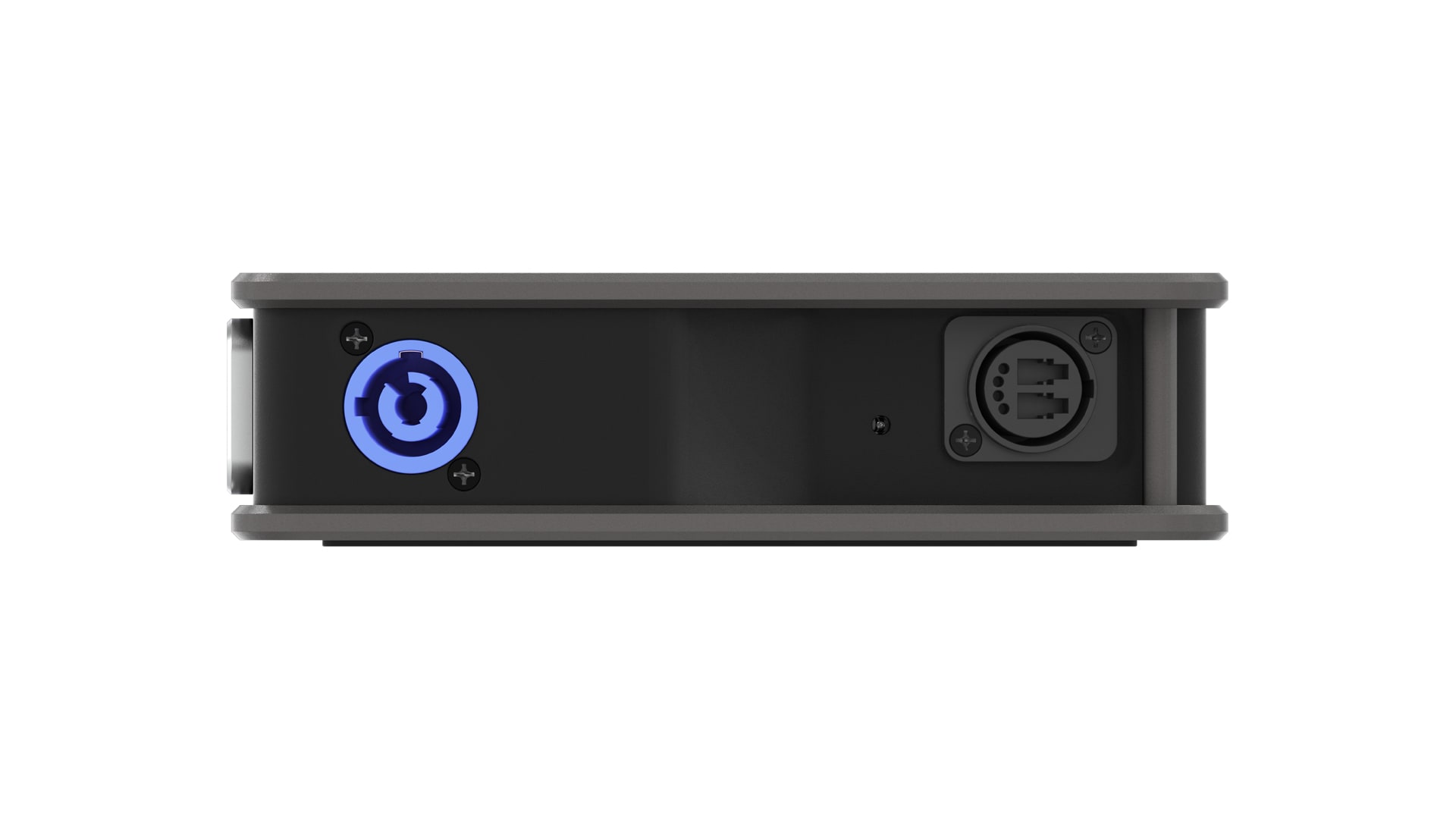

Theatrixx xVision Fiber to SDI - XVVFIBER2SDI

XVVFIBER2SDI is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It brings a fiber run back to copper at the far end. Input is optical SDI, singlemode or multimode, on ST, opticalCON DUO or opticalCON QUAD. Signal handling follows SMPTE 425 M Level A & B, 424 M, 292 M, 259 M.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
