Theatrixx DisplayPort to Quad SDI, 4-Channel 1U - XVVR-4DP2QSDI

The XVVR-4DP2QSDI does one job: take a 4K50/60 DisplayPort 1.2 input and slice it into four 1080p60 quadrants on 3G-SDI. It is the bridge between 4K sources such as media servers and computers and the very large installed base of Full-HD displays, projectors and 3G-SDI infrastructure.

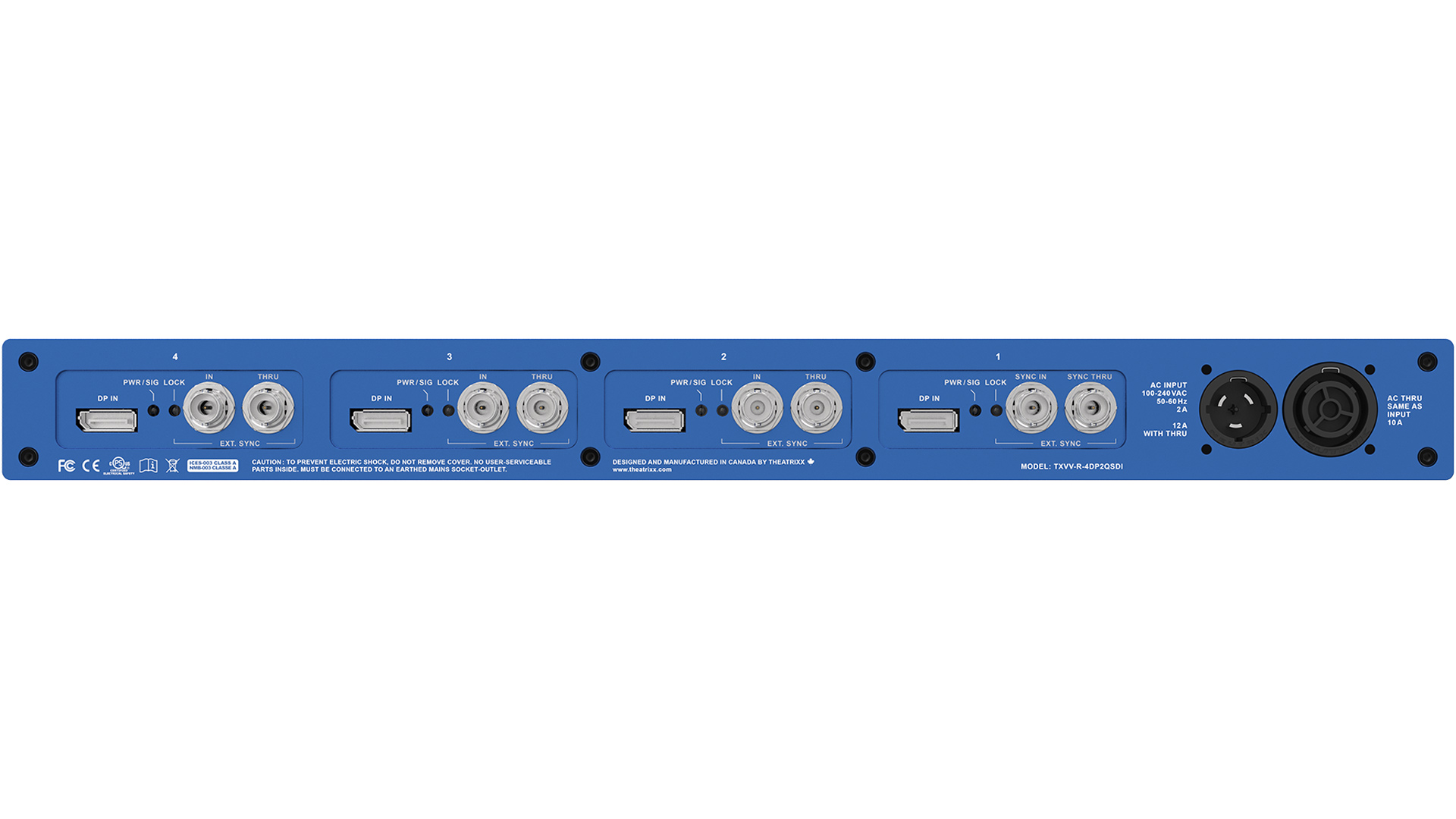

Four processing channels fit in a 1U enclosure, so the unit takes up to four 4K60 DisplayPort inputs and delivers sixteen 1080p60 outputs at once with no configuration. Each channel has its own genlock input and loop-thru for external sync, and the processing path is deliberately simple to keep latency down.

Video Input	4 x DisplayPort 1.2
Power Supply	Built-in power supply, PowerCon input/loop thru
Power Consumption	100W max
Operating Temperature	0-40 deg C
Dimensions (H x W x D)	43.43 mm (1.7 in) - 1 RU x 482.6 mm (19 in) x 178 mm (7 in)
Weight	3.75 kg (8.25 lbs)
Features	Internal or external (tri-level) sync source with automatic detection, Less than 2 frames latency , Built-in test pattern automatically enabled when no signal present (or black field,
Processing Modules	4 fully independant DP to Quad SDI with sync
