Theatrixx xVision 12G-SDI to Fiber True1 - XVVSDI2FIBERT1-12G

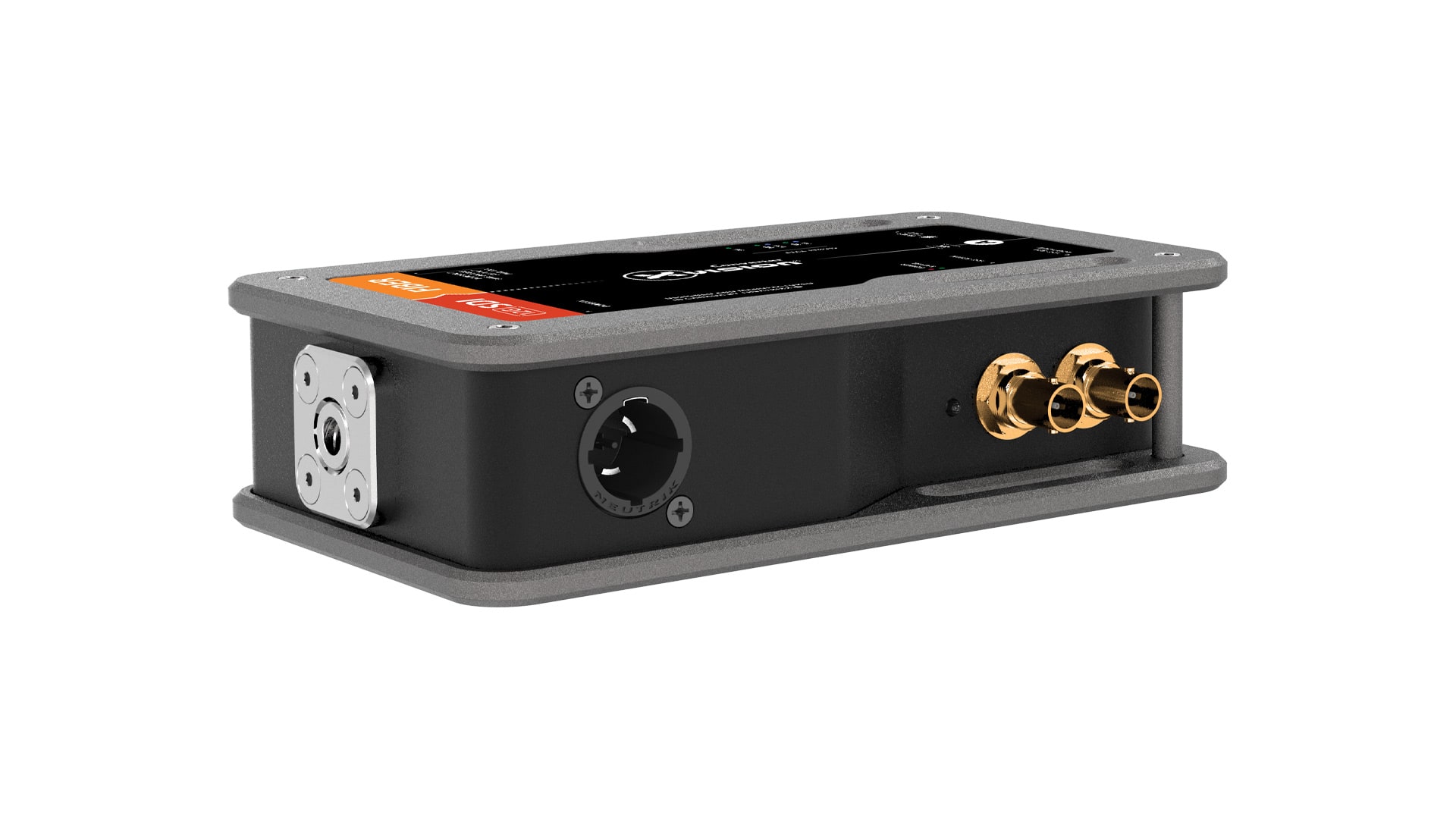

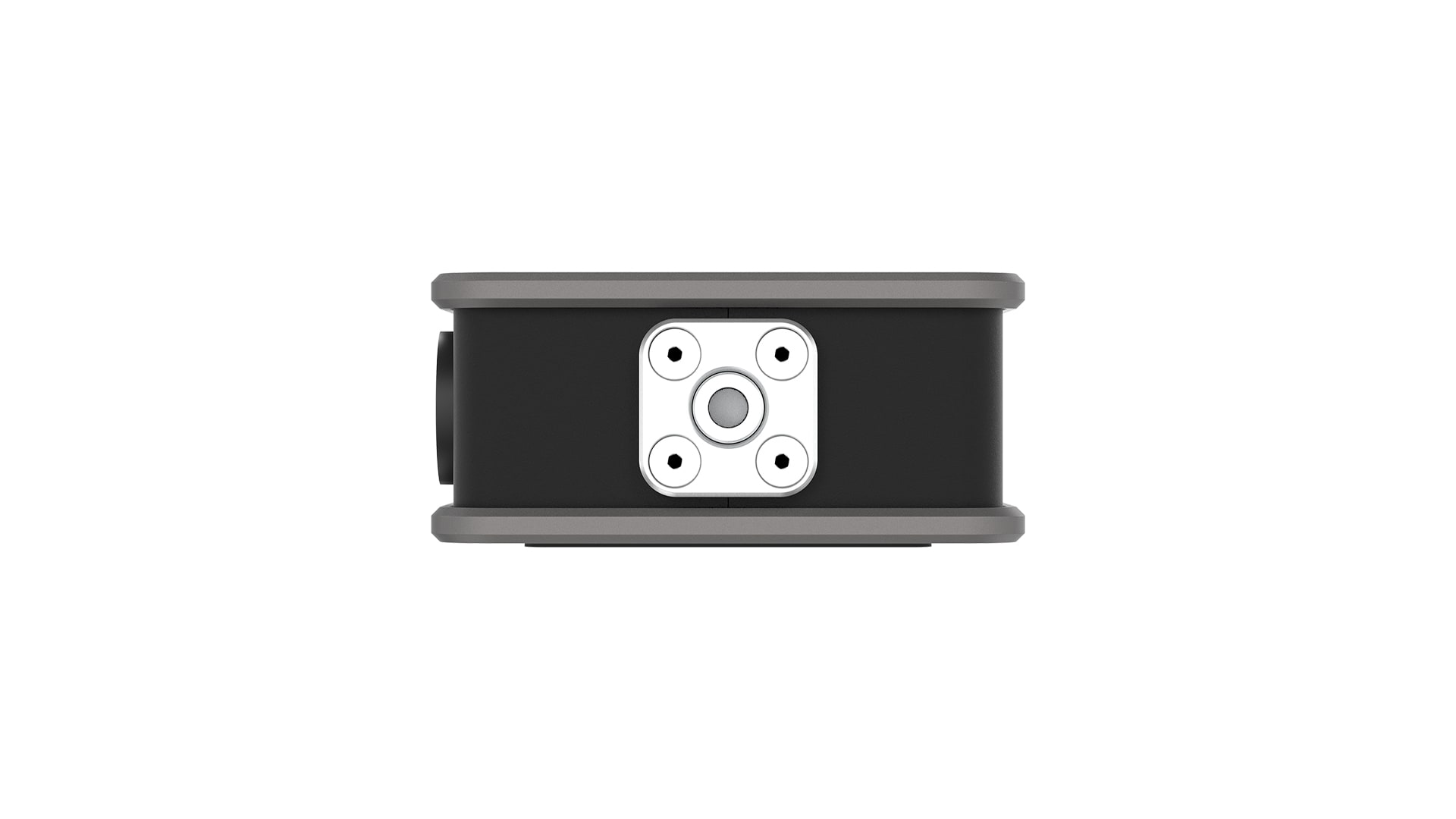

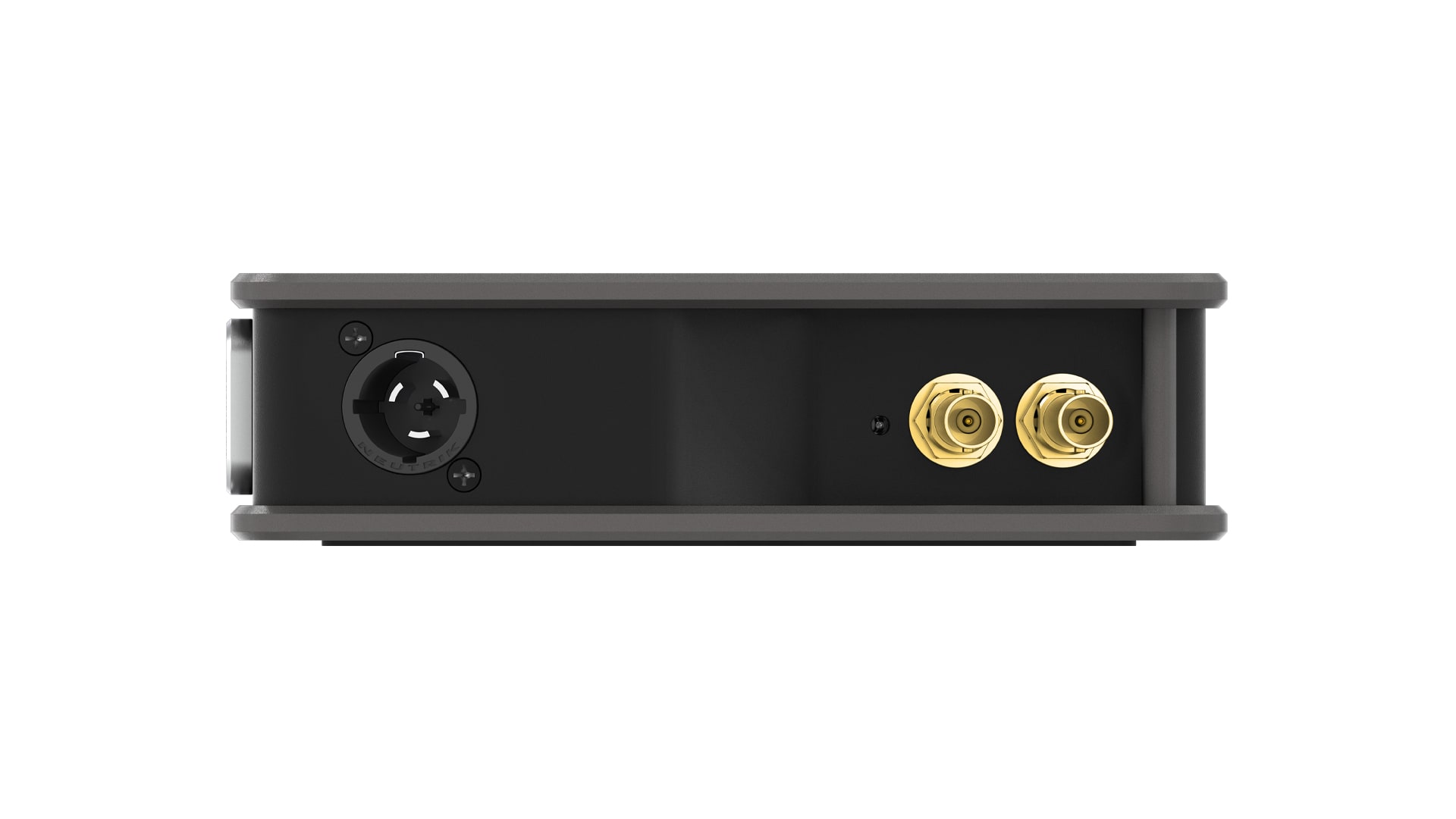

XVVSDI2FIBERT1-12G is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It gets video onto fiber for a long or electrically isolated run. Input is 1 x 12G/6G/3G/HD/SD SDI BNC. A reclocked and amplified loop-thru on 1 x 12G/6G/3G/HD/SD SDI BNC lets a local monitor tap the same feed. Signal handling follows SMPTE 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
