Theatrixx xVision DisplayPort to Quad SDI - XVVDP2QSDI

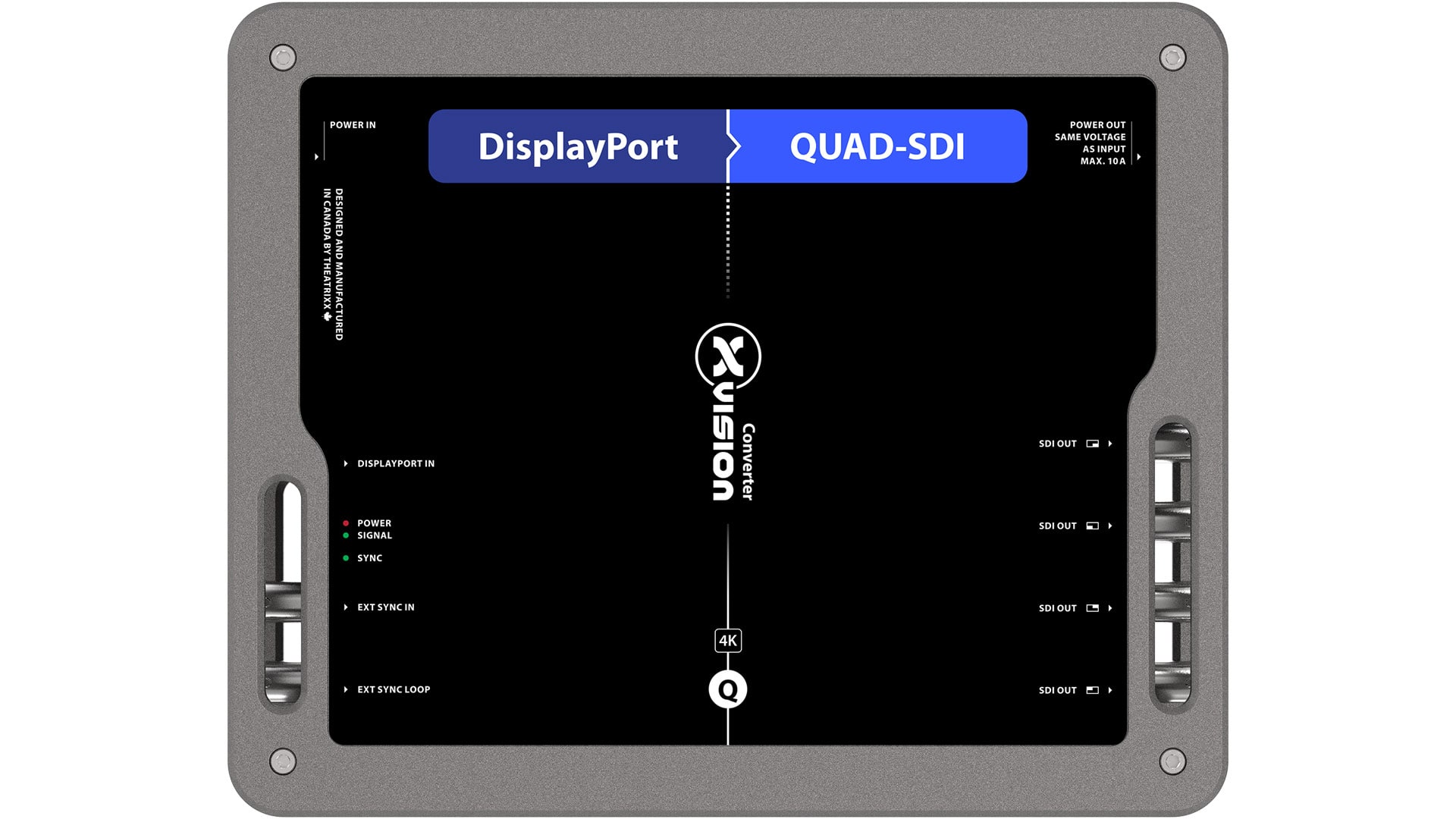

XVVDP2QSDI is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It takes a computer output to SDI for the video system. Input is 4 x DisplayPort 1.2 and output is Tri-level sync (BNC) with loop-thru. Signal handling follows SMPTE ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M.

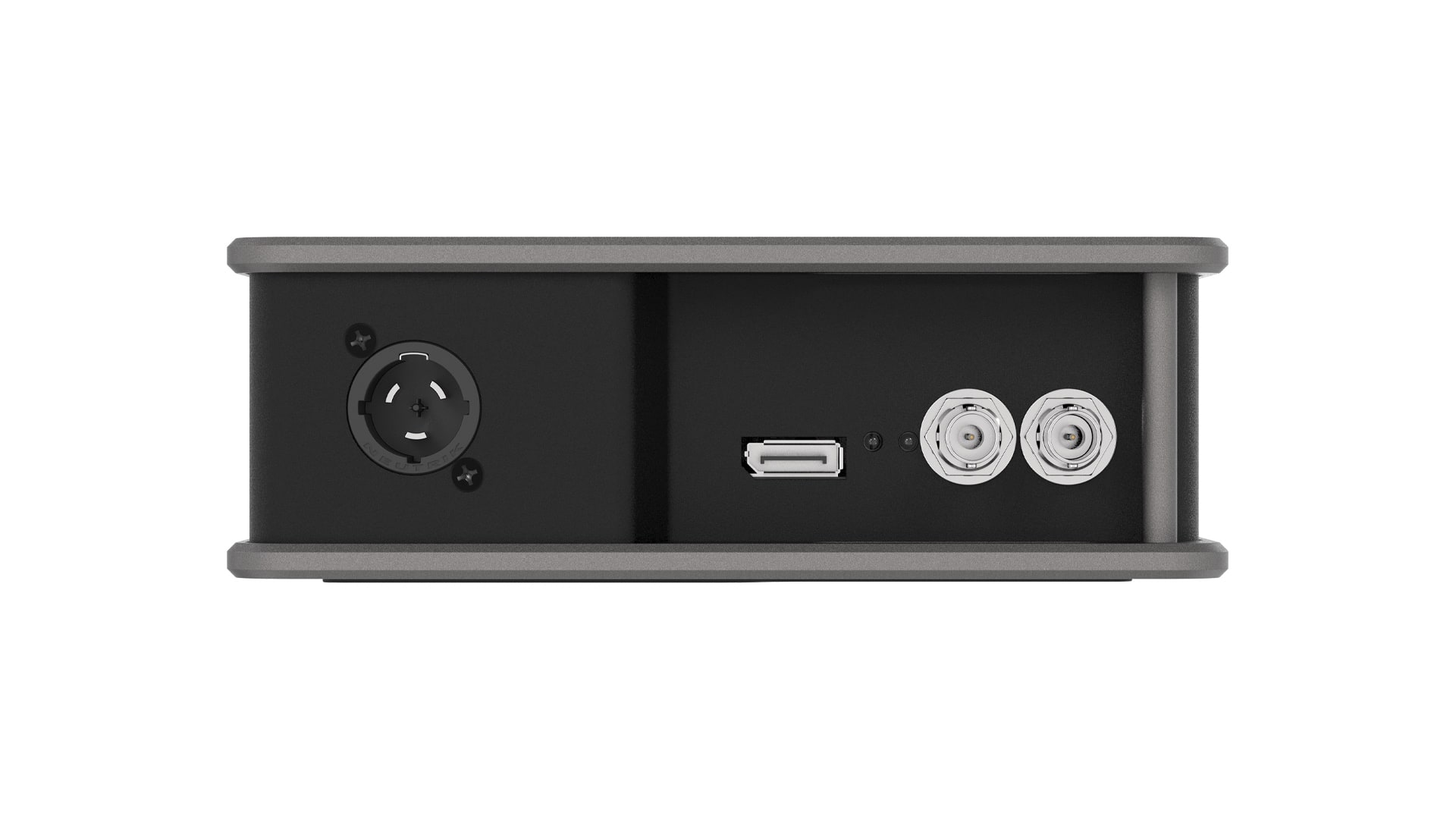

Power is Built-in power supply, PowerCON True1 in / loop thru. Draw is 45 W max. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
