Theatrixx xVision 12G-SDI to HDMI Reversible Module - XVVRMSDI2HDMI12G

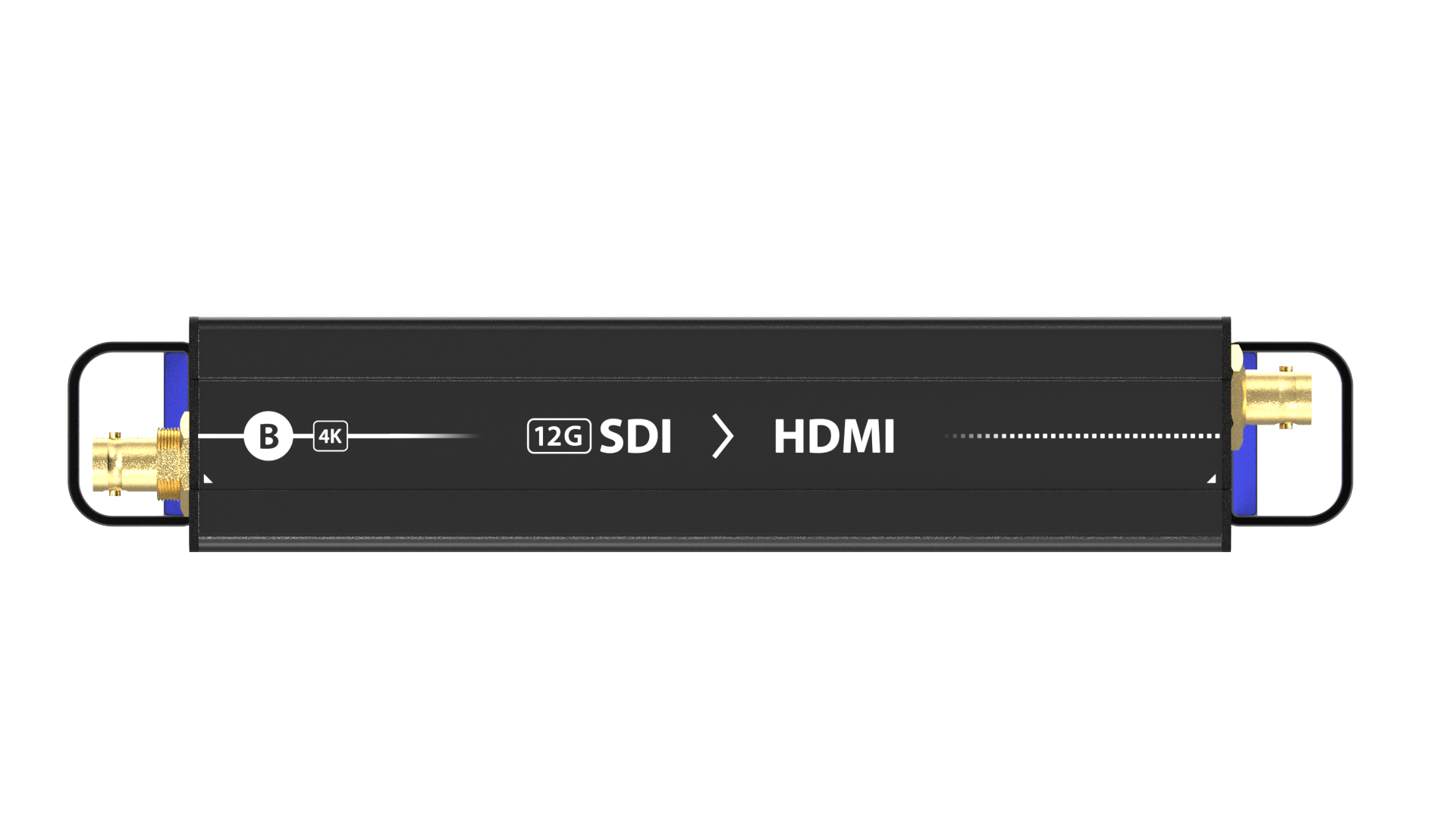

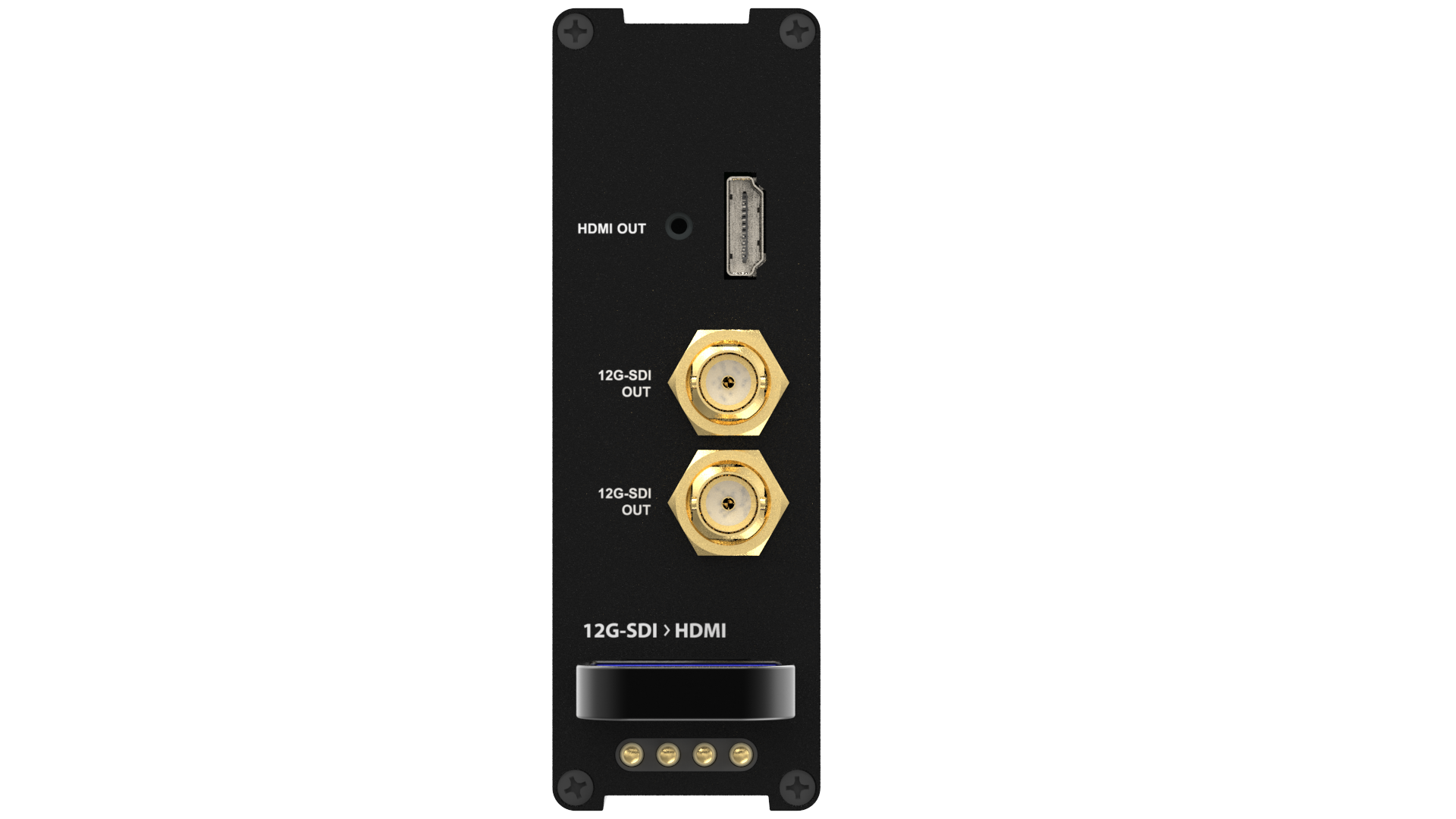

XVVRMSDI2HDMI12G is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It drives an HDMI display, projector or recorder from an SDI feed. Input is 1 x 12G/6G/3G/HD/SD SDI BNC and output is 1 x HDMI 2.0 type A with locking system, 2 x 12G/6G/3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M Level A, 292 M, 259 M.

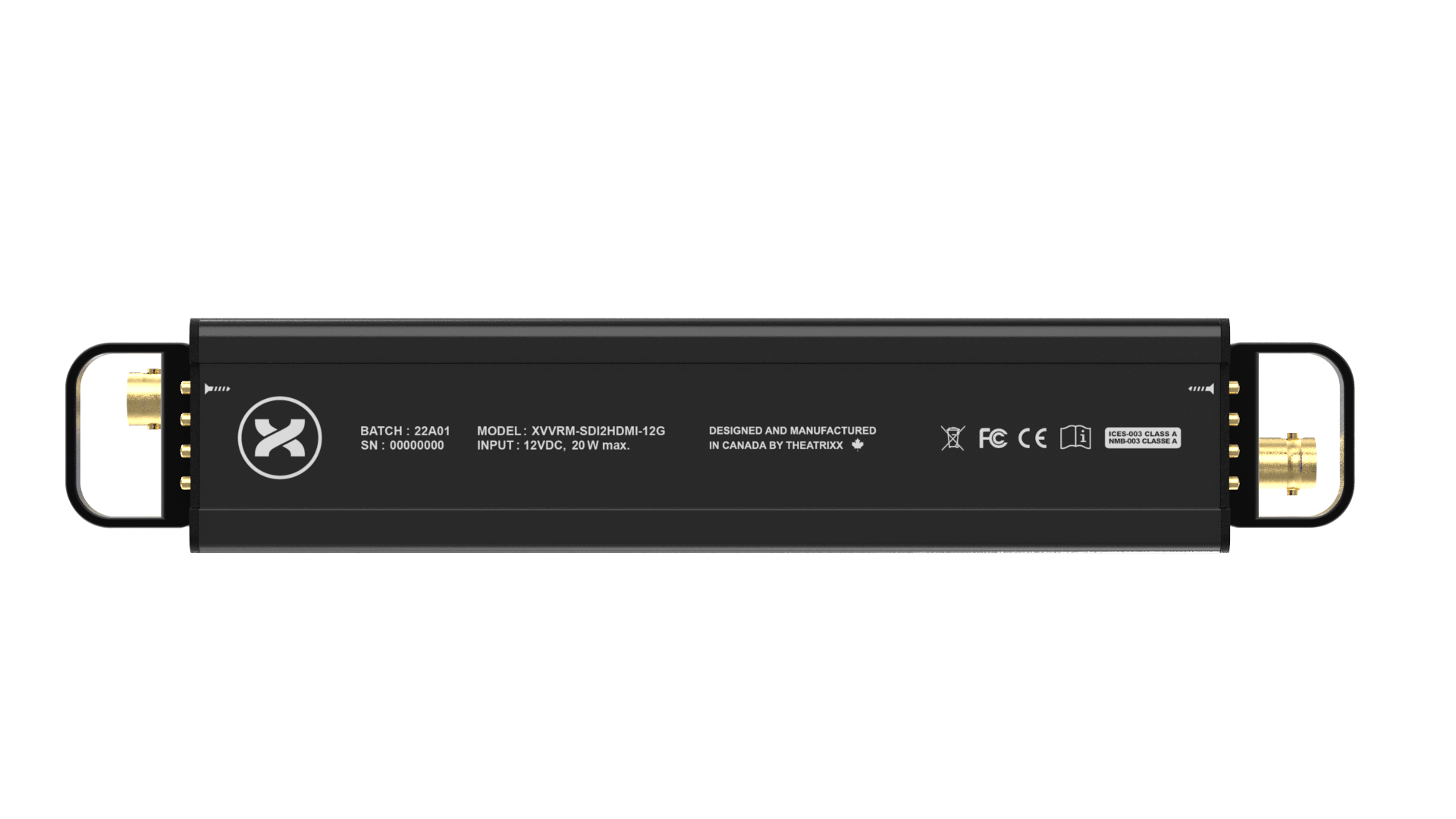

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
