Teradek RT Lens Motor Gear

Name: Teradek RT Lens Motor Gear
Brand: Teradek
SKU: 11-1423
Availability: InStock

$59.00

11-1423

Choose an option

CNC-hobbed drive gear for an RT lens motor, in the module pitch your lens rings use.

Lens gearing is not standard across the industry, and a motor gear that is one module out will skip under load in the middle of a pull. Teradek cuts these gears on a hobbing machine for every RT motor, so the tooth profile meshes cleanly rather than riding on the tips.

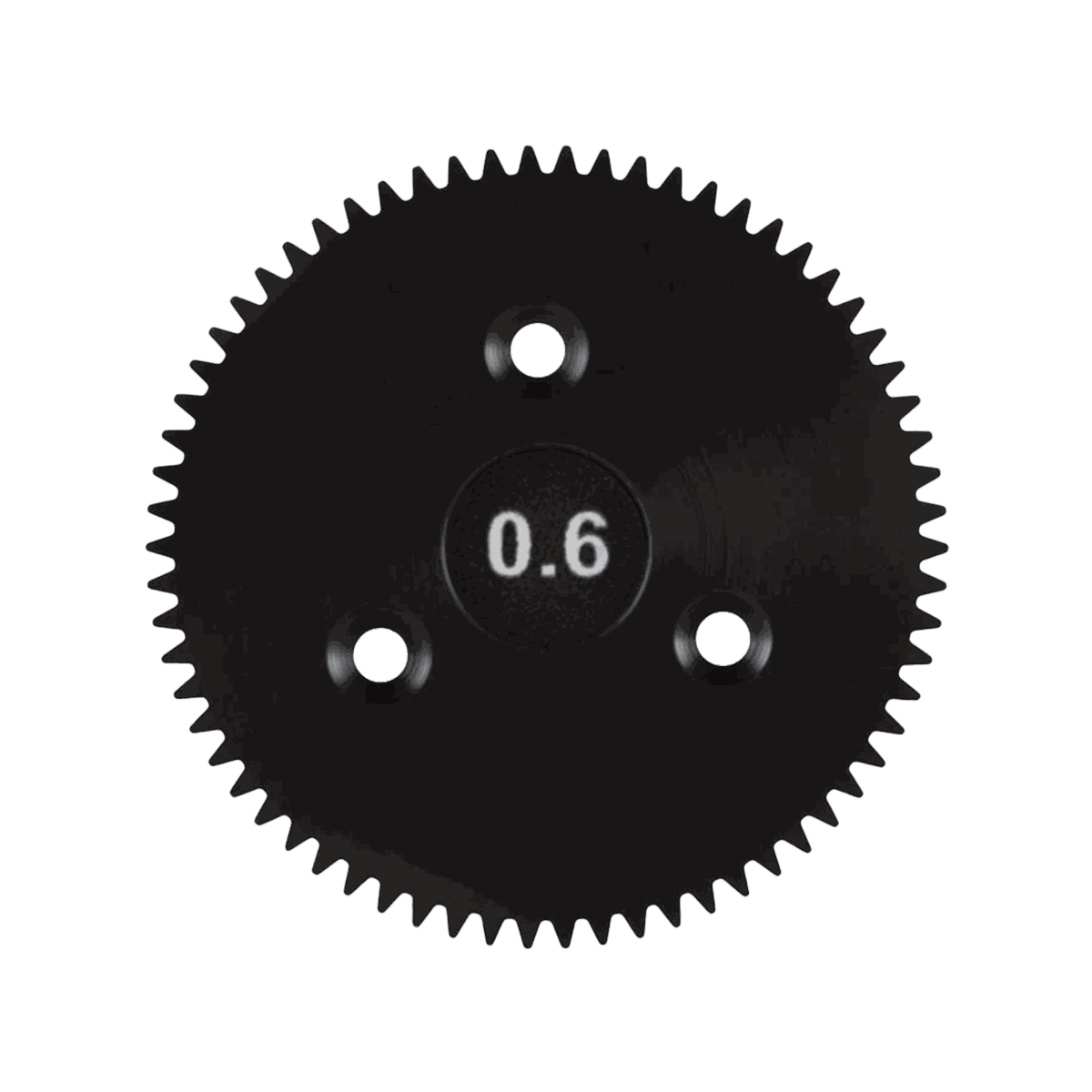

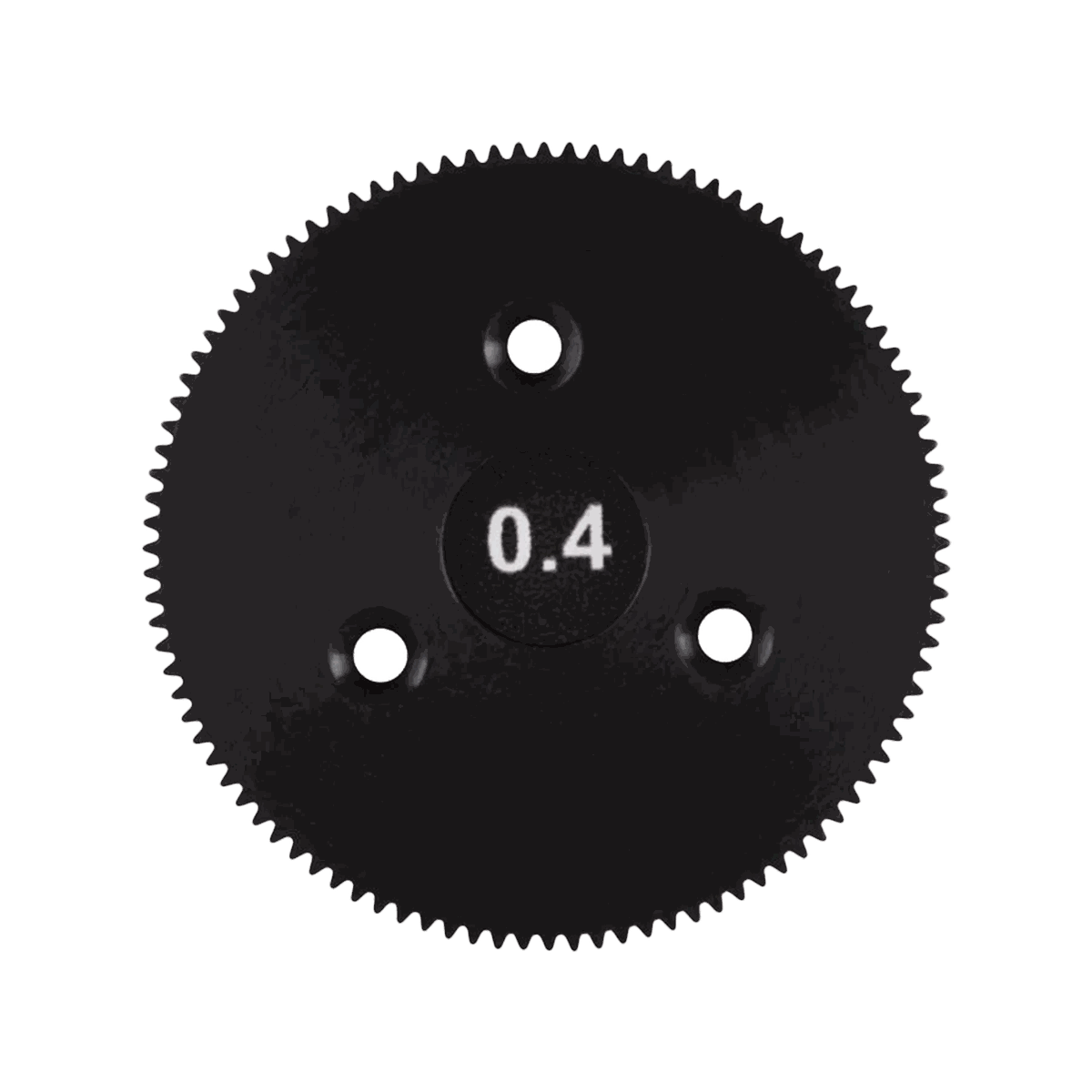

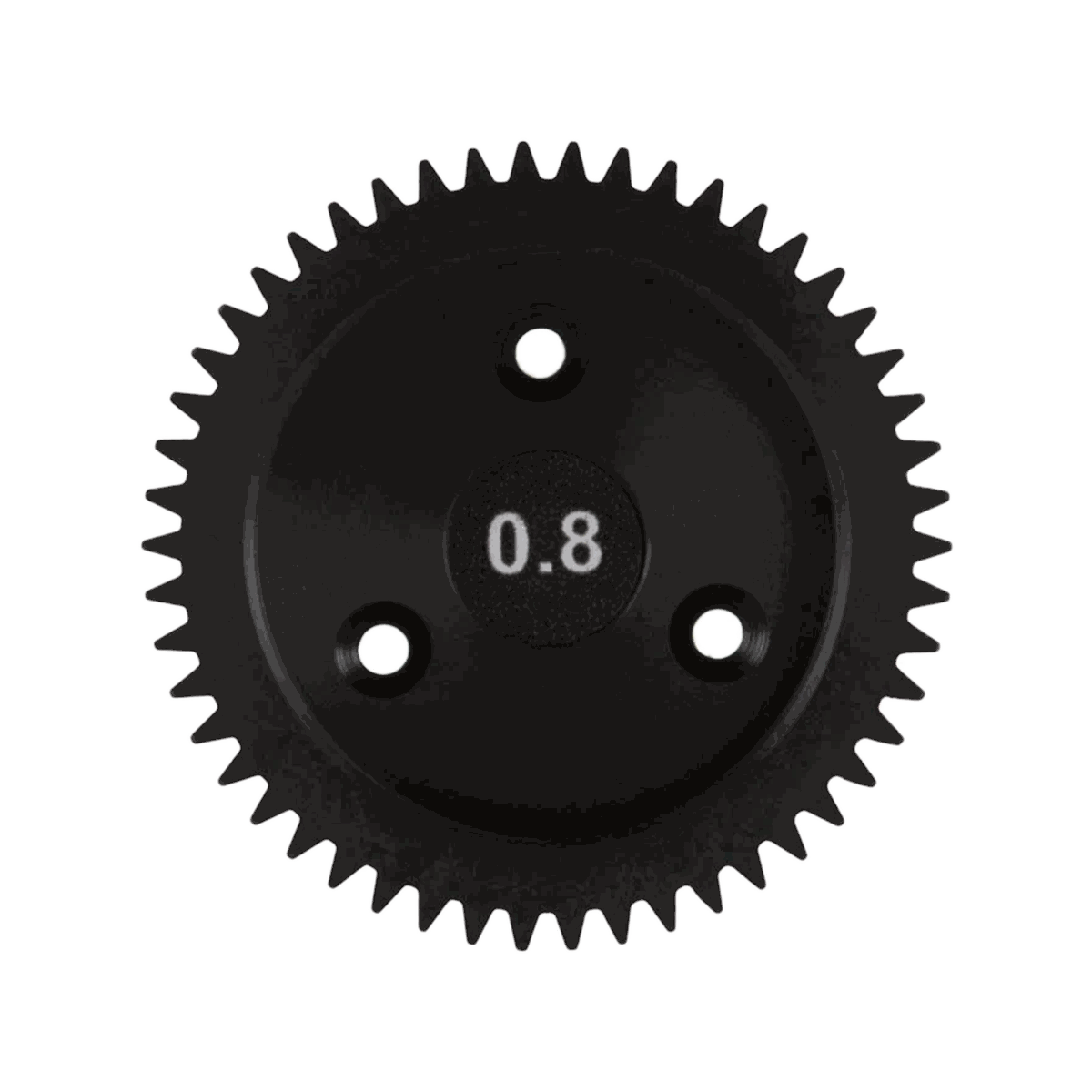

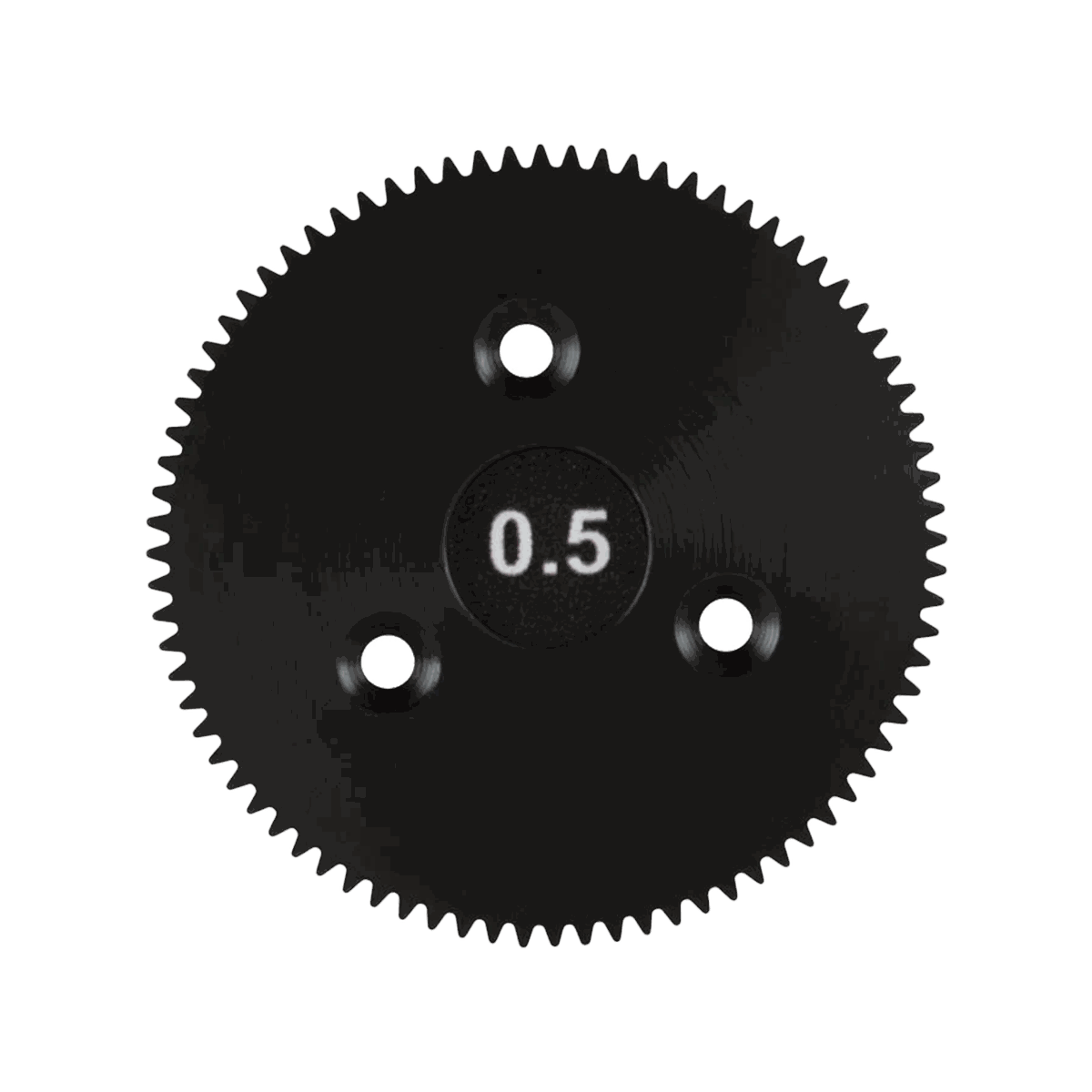

Cine glass from ARRI, Zeiss and Sony is almost always 0.8 mod, and the 12 mm wide version of that gear is the one for a broad focus ring or a lens with a lot of side play. Panavision and Canon C-mount take 0.4, Canon and Angenieux ENG take 0.5, and Fujinon ENG takes 0.6.

Type	Lens motor gear
Compatible With	The Teradek RT lens control system
Versions	0.8 mod, for cine, ARRI, Zeiss, 32 pitch and Sony; 0.8 mod wide, 12 mm, for cine, ARRI, Zeiss, 32 pitch and Sony; 0.4 mod, for Panavision and Canon C-mount; 0.5 mod, for Canon and Angenieux ENG; 0.6 mod, for Fujinon ENG; Motor Gears for MOTR.S/MAX (Individual) - Thick Gear - 0.8 Mod, 50 Teeth, 12mm Width; Motor Gears for MOTR.S/MAX (Individual) - Standard Gear - 0.8 Mod, 50 Teeth, 7mm Width; Motor Gears for MOTR.S/MAX (Individual) - Large - 0.8 Mod, 80 Teeth, 6mm Width
Sold As	8 stocked versions, ordered individually
Teradek Part #	11-1423, 11-1424, 11-1420, 11-1421, 11-1422, 11-0939, 11-0940, 11-0941
Manufacturer	Teradek (Creative Solutions / Videndum)
