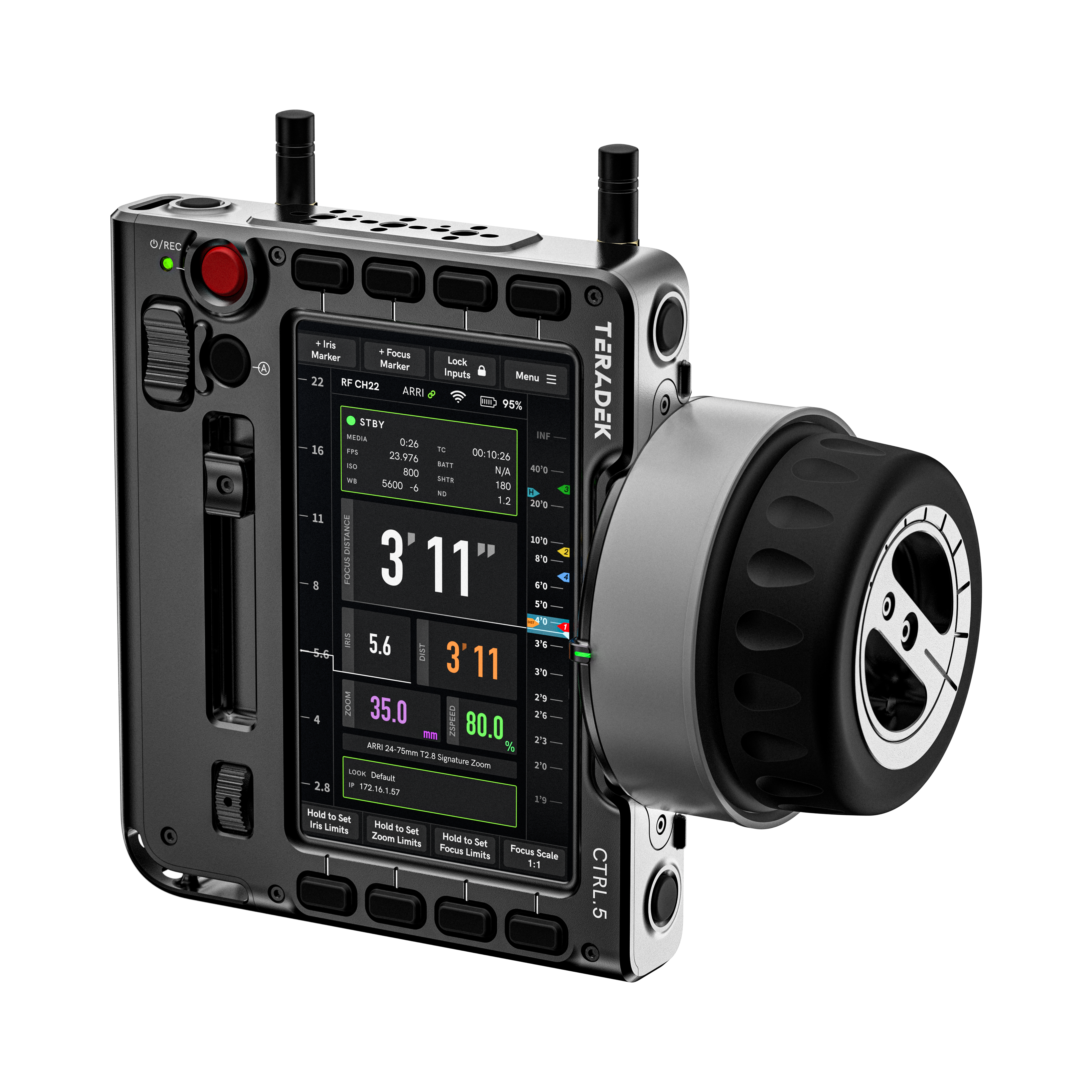

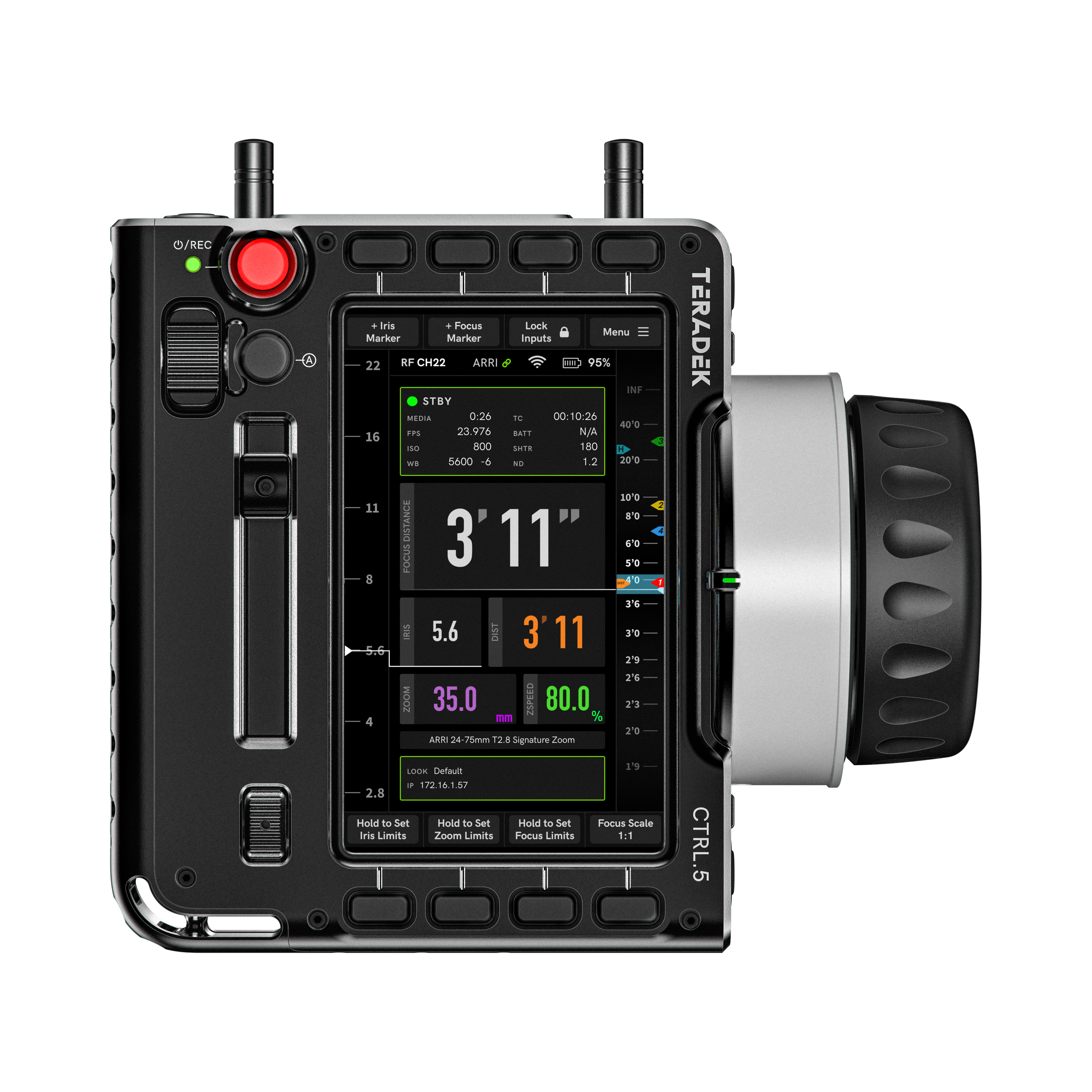

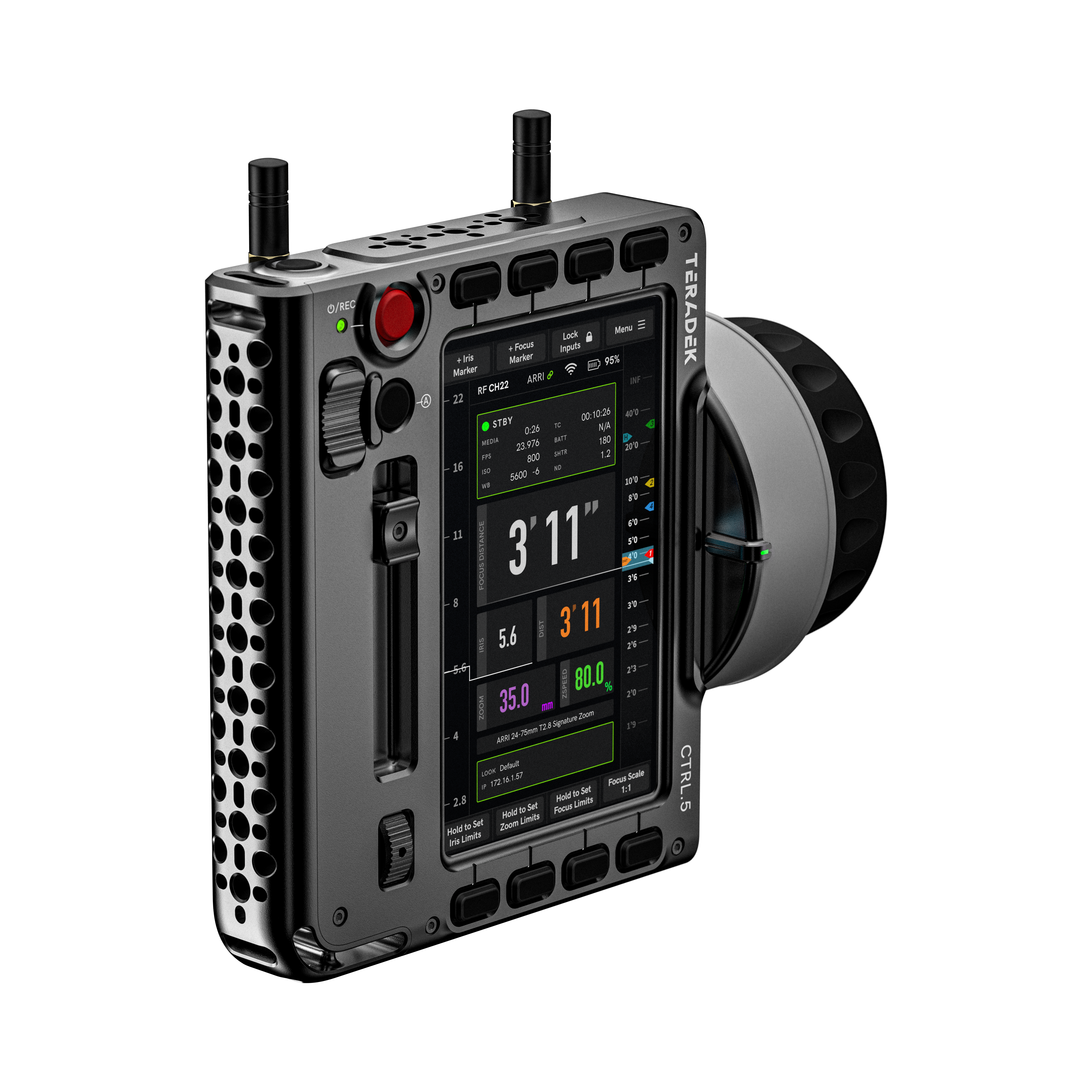

Teradek RT CTRL.5 Wireless FIZ Lens Control Handset
CTRL.5 puts a 5-inch SmallHD ultra-bright touchscreen on the hand unit itself, running CTRL.OS, a version of SmallHD's PageOS built for lens control. The focus puller reads lens data and the camera's picture on the same screen while pulling, instead of looking between a monitor and a knob.
Lenses calibrate to pre-marked focus rings through the touchscreen, and eleven programmable function buttons put the settings you use most under a thumb. The handset carries mounting points across the body for accessories and is cross-compatible with the rest of the Teradek RT ecosystem. Note that CTRL.5 does not work with the older RT overlay cables; it needs a 5-pin to USB-A or 5-pin to 5-pin lead.
| Power Draw | 4w with back light off, 9w with back light full |
|---|---|
| Connectors | 5-pin USB port and 4-pin AUX port |
| Run/Stop Control | RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100 / 300 / 500 Sony FS7) |
| Axes | 4 total: knob / slider / rocker / wheel |
| Bluetooth | Bolt Pairing and Control (coming soon) |
| Display | 5 inch Highbright SmallHD |
| Teradek Part # | 15-0051 |
| Manufacturer | Teradek (Creative Solutions / Videndum) |
