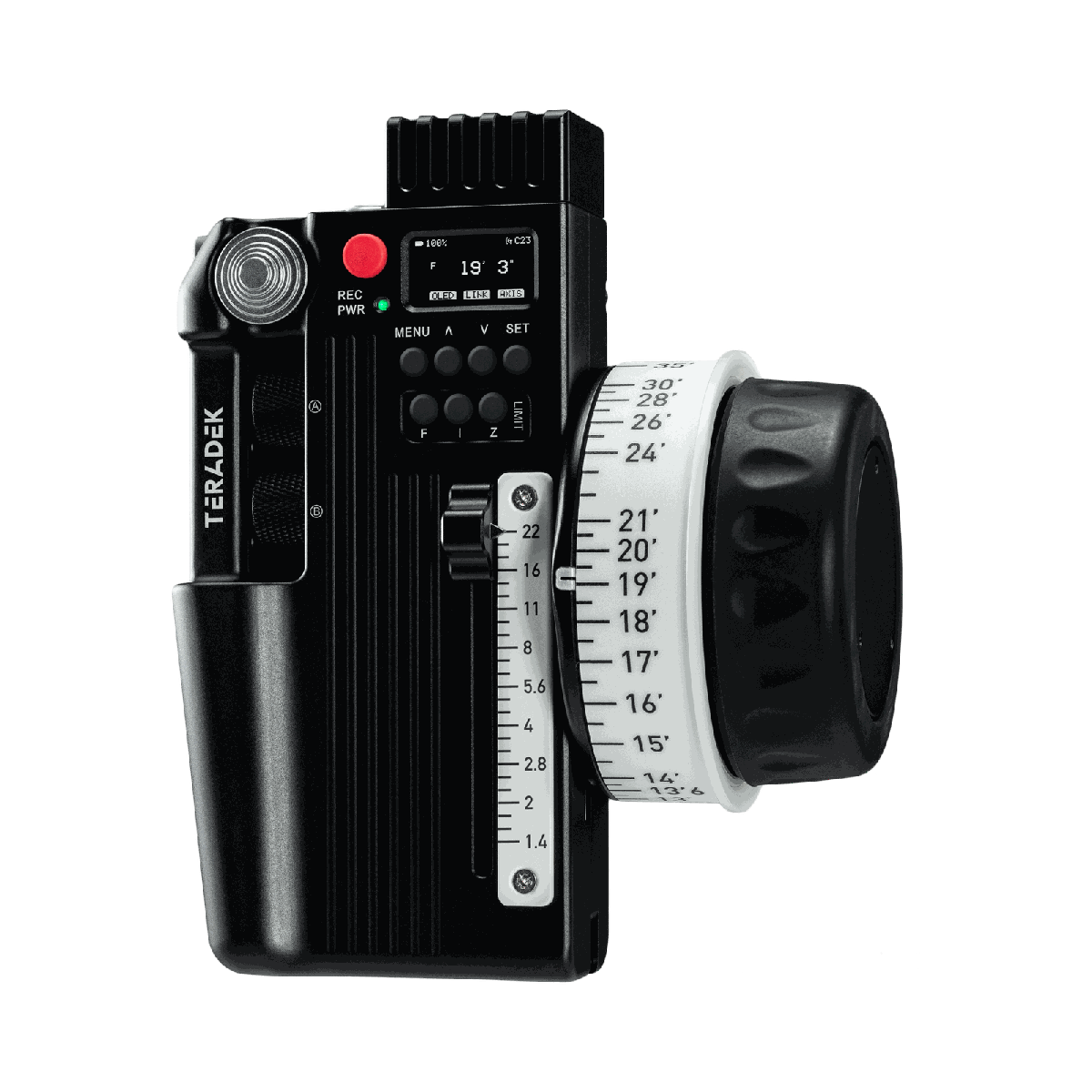

Teradek RT CTRL.3 Three-Axis Wireless Lens Controller

CTRL.3 holds all three axes on one hand unit, with built-in lens mapping and onboard storage for the configurations. Paired with a SmallHD monitor it writes focal distance, focal length, iris and zoom onto the picture as an overlay, so a focus puller reads the numbers without looking away from the frame.

The body is built around a large focus knob with an OLED readout and several mounting points, and a removable Canon LP-E6 battery gives up to 36 hours of continuous use. Pre-marked focus rings ship in imperial or metric units; pick the one your department marks in. The Teradek RT app for iOS handles lens maps, FIZ configuration and firmware.

Connectors	1 x 5-pin locking connector for Wired Mode / 5pin serial + usb for monitor interface, wired control, USB Mini
Run/Stop Control	RED (Epic, Scarlet, Weapon, Raven, etc.) / ARRI (Alexa, Amira, etc.) / Phantom / Sony F55 / LANC (Blackmagic, Canon C100 / 300 / 500 / Sony FS7)
Axes	6 total: knob / slider / zoom x / y / rollers: a + b
Bluetooth	MDR.X, MDR.ACI, RT iOS App
Wireless	Teradek RT FHSS 2.4GHz / Bluetooth 2.4GHz
Wireless Range	Up to 5000 ft (1500 m) line-of-sight (in / USA / FCC mode) / Up to 500 ft (150 m) indoors
Teradek Part #	15-0047-I, 15-0047-M
Manufacturer	Teradek (Creative Solutions / Videndum)
