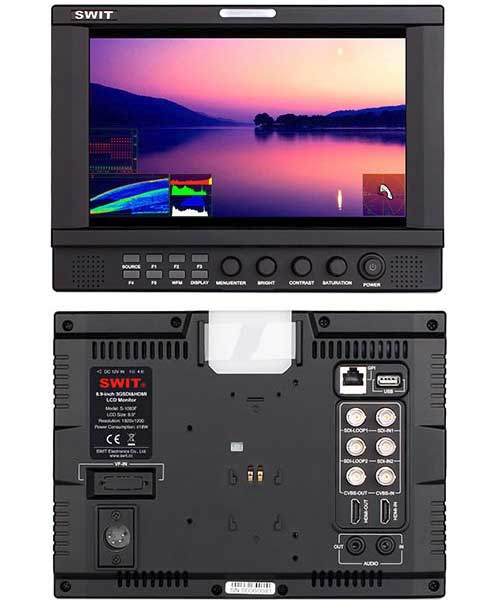

Swit S-1093F 9" Waveform LCD Monitor

SWIT's S-1093F is a 9-inch FHD waveform monitor, with a 1920 x 1200 resolution IPS LCD panel, 2K/3G/HD/SD-SDI, HDMI and composite video input.

It provides broadcast technical reference patterns- waveform, vector scope, histogram, and up to 16-ch audio meters with alert, with the ability to select any 2-ch audio to output. Moreover, the peaking focus assist, false color, R/G/B/Mono, H/V delay, UMD, AFD, scale markers are useful functions for broadcast field and studio monitoring. Contrast is 800:1 and the viewing angle is 170° for both horizontal and vertical views.

If you do not need the waveform displays, please see Swit S-1093H
