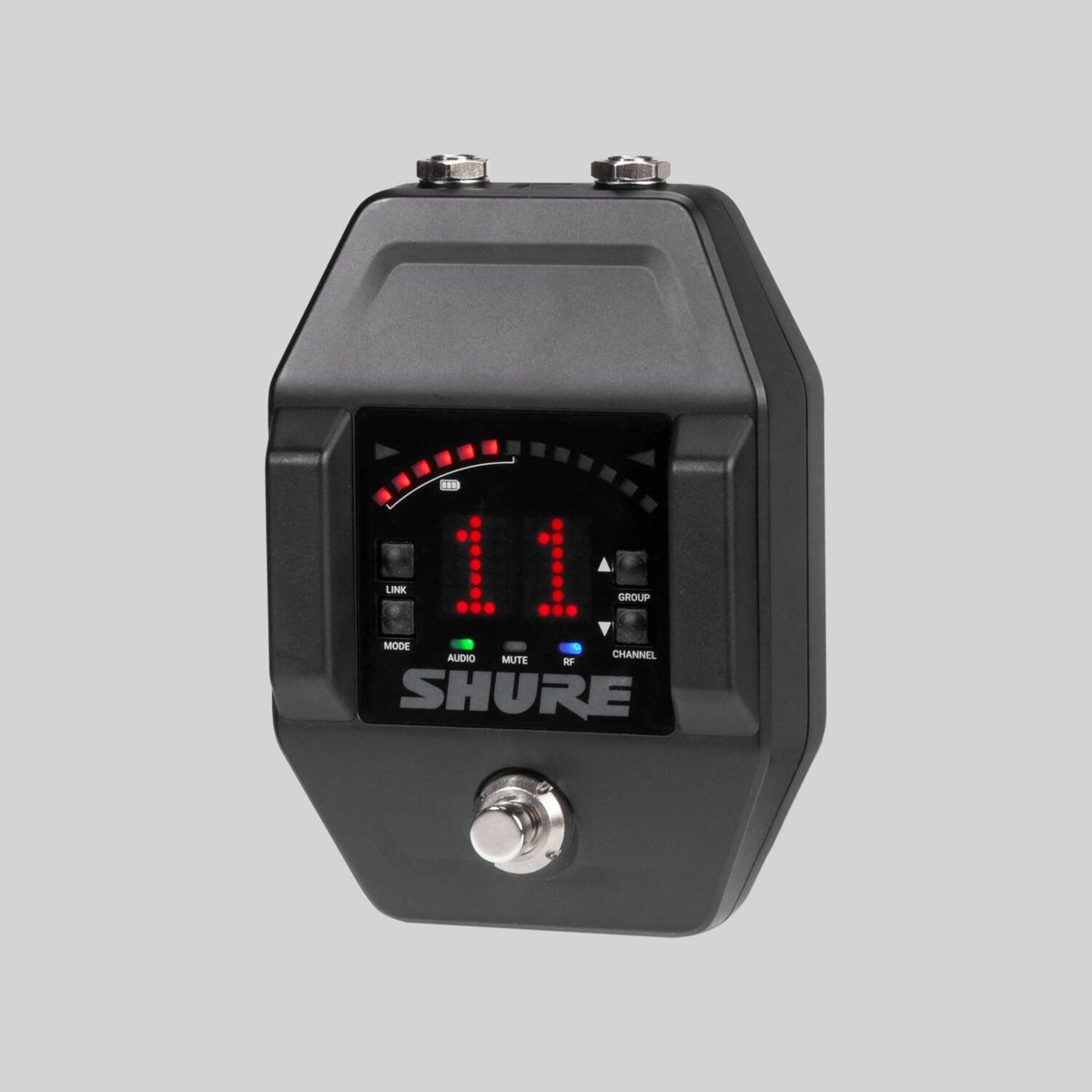

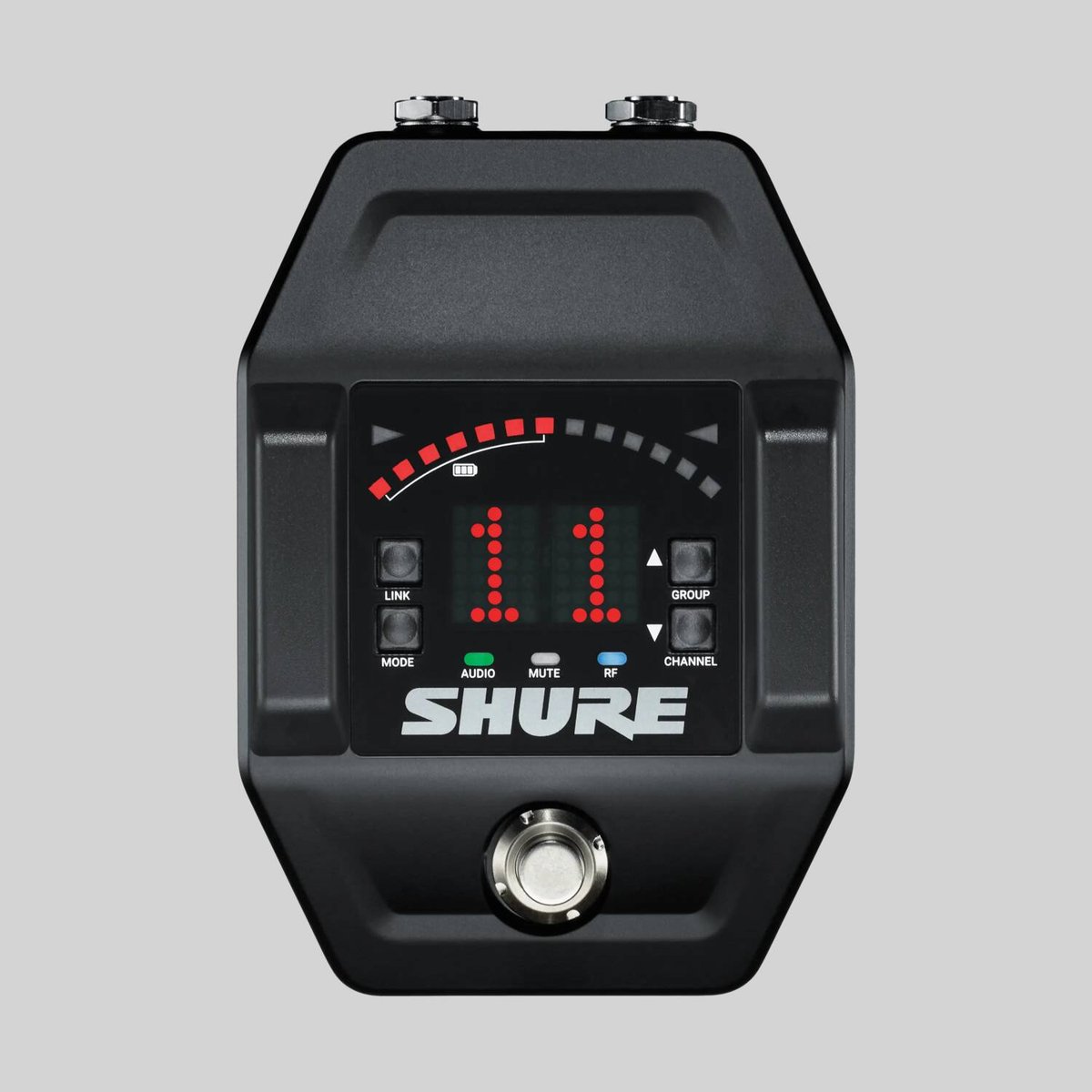

Shure GLXD6+
The GLXD6+ is Shure's digital wireless guitar pedal receiver, a rugged metal unit sized to drop onto a pedalboard alongside the rest of a rig. It receives on GLX-D+ Dual Band technology, working the license-free 2.4 and 5.8 GHz ranges together with automatic frequency management for reliable performance and up to 11 systems in a typical room (16 under ideal conditions). A built-in tuner adds real utility, with switchable Strobe and Needle modes and a reference pitch adjustable from 432 to 447 Hz.

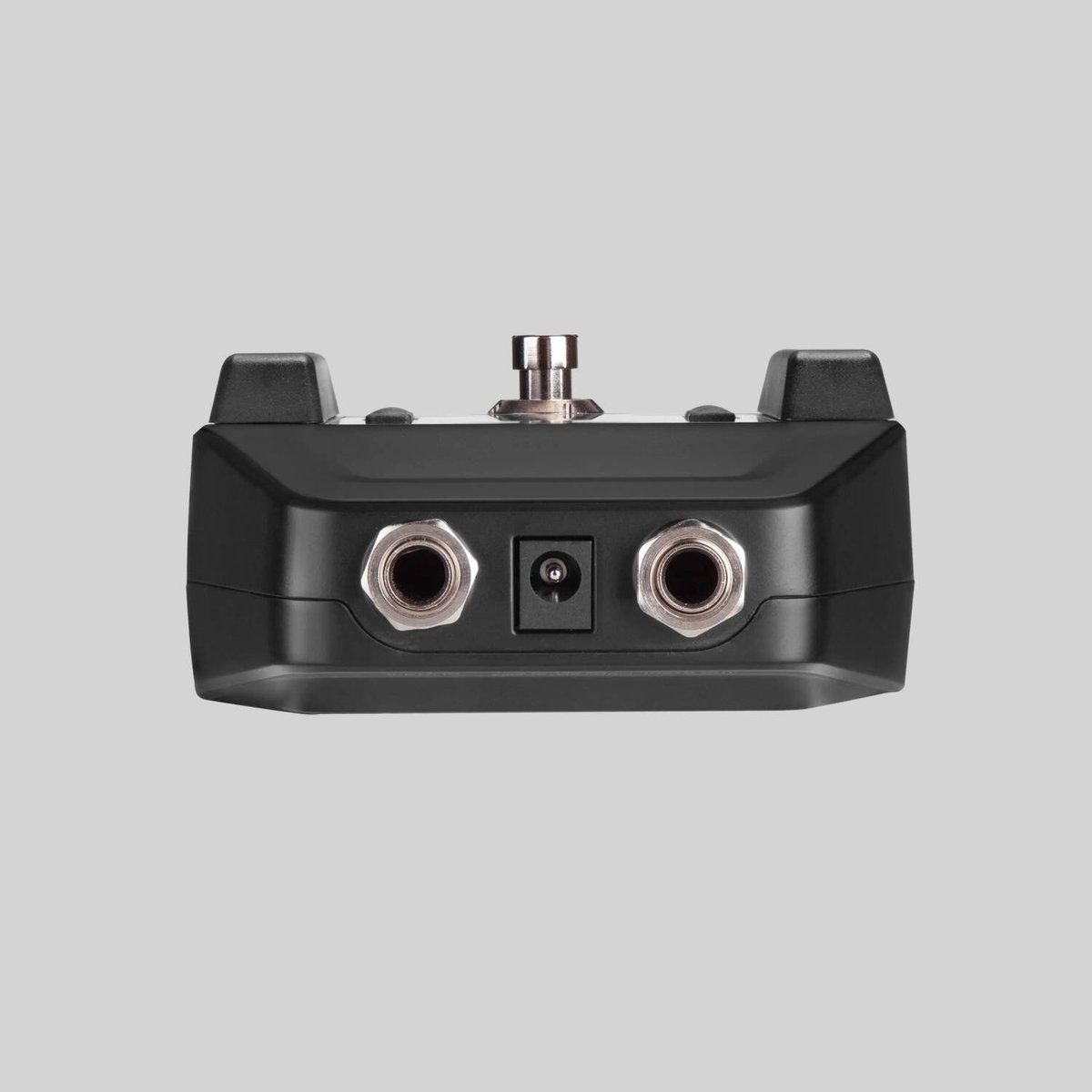

A quarter-inch true-bypass input lets a player toggle between a wired and a wireless instrument mid-set with a footswitch, and a segmented LED shows the transmitter battery at a glance. It powers from a standard 9V DC pedalboard supply drawing at least 400 mA, so it fits an existing power chain. The GLXD6+ is the pedal receiver; it pairs with a GLXD1+ bodypack transmitter, sold separately.
| Type | Digital wireless guitar pedal receiver |
|---|---|
| Frequency Bands | 2.4 and 5.8 GHz (license-free) |
| Tuner | Built-in, Strobe/Needle modes, 432-447 Hz reference |
| Input | 1/4 inch true bypass (switch wired/wireless instrument) |
| Power | 9V DC pedalboard supply (400 mA minimum) |
| Housing | Rugged metal, pedalboard-ready |
| Operating Range | Up to 100 ft (30 m) |
| Compatible Systems | Up to 11 (16 under ideal conditions) |
