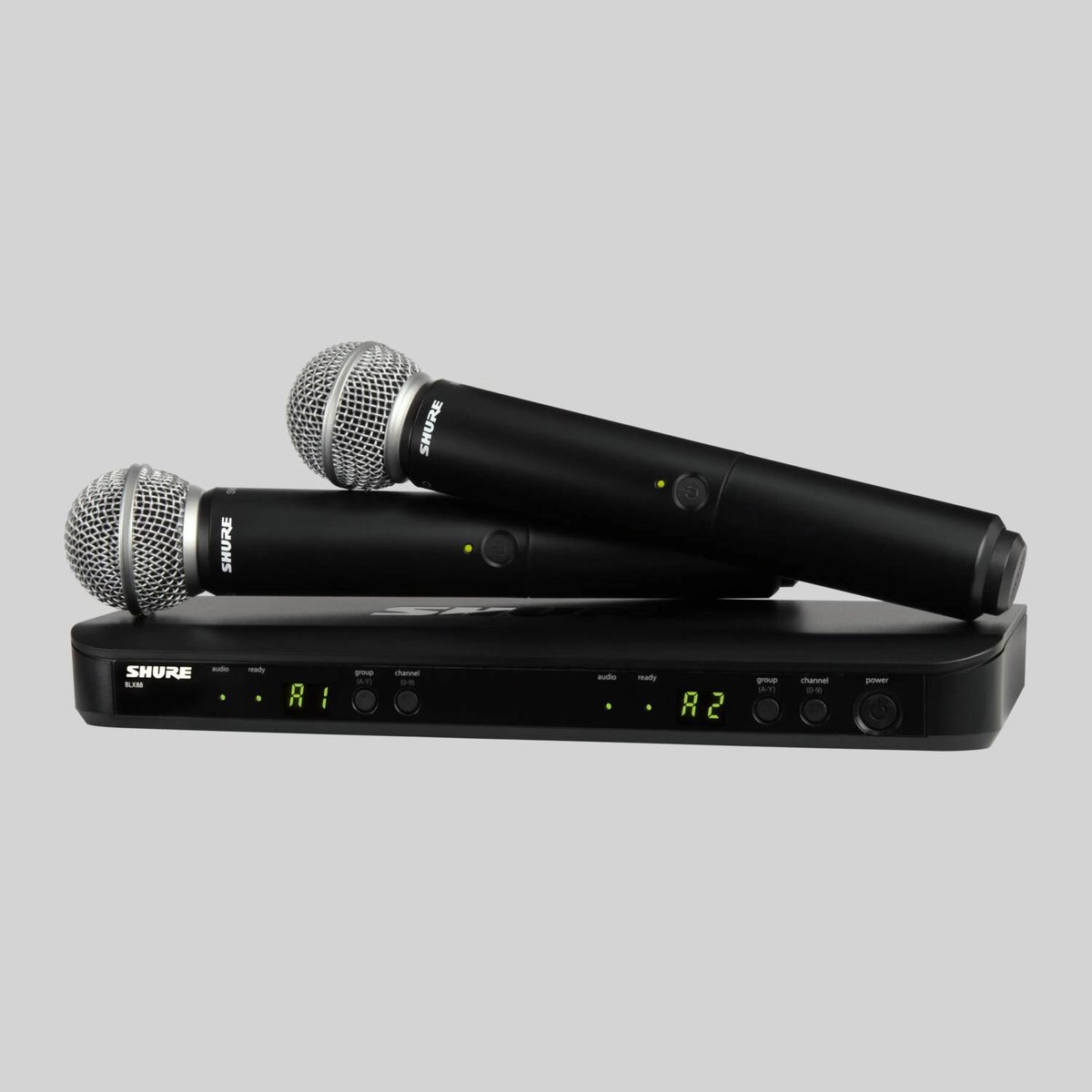

Shure BLX288/SM58 Dual Channel Handheld System Wireless SM58 Handhelds on One Receiver
The Shure BLX288/SM58 puts two wireless SM58 handhelds on one dual-channel receiver, so two vocalists, or a presenter and a backup, can work the same system. Each BLX2 transmitter carries the SM58 cardioid dynamic capsule that has anchored live vocals for decades, with the tailored midrange presence and rolled-off proximity control that make voices cut through a mix. The cardioid pattern rejects monitors and stage noise to hold off feedback.
Both handhelds pair with the single BLX88 dual-channel receiver over UHF, and QuickScan setup finds clean frequencies for each channel. The system reaches up to 300 ft line of sight with up to 14 hours per transmitter on a pair of AA batteries. It ships with the BLX88 dual receiver, two BLX2/SM58 handheld transmitters, two microphone clips, a PS23US power supply, and four AA batteries.
- BLX88 - Dimensions1.50 in. X 12.13 in. X 3.98in. H x W x D
- BLX2 - Dimensions8.82 in. X 2.09 in. L x Dia.
- BLX88 - Output ImpedanceXLR connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω
- BLX88 - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone)XLR connector: -27 dBV (into 100 kΩ load)
- BLX2 - Audio Input Level0dB: -20 dBV maximum; -10dB: -10 dBV maximum
| System - Working Range | 91 m (300 ft) Line of Sight |
|---|---|
| System - Audio Frequency Response | 50 to 15,000 Hz (dependent on microphone type) |
| System - Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone) | 0.5%, typical |
| System - Dynamic Range | 100 dB, A-weighted, typical |
| System - Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| System - Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX88 - Output Impedance | connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω |
| BLX88 - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone) | XLR connector: -27 dBV (into 100 kΩ load); 6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load) |
| BLX88 - RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| BLX88 - Image Rejection | >50 dB, typical |
| BLX88 - Dimensions | 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D |
| BLX88 - Weight | 15.1 oz. (429 g) |
| BLX88 - Housing | Molded ABS |
| BLX88 - Power Requirements | 12 to 15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
| BLX2 - Audio Input Level | 0dB: -20 dBV maximum; -10dB: -10 dBV maximum |
| BLX2 - Gain Adjustment Range | 10 dB |
| BLX2 - RF Transmitter Output | 10 mW, typical (varies by region) |
| BLX2 - Dimensions | 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia. |
| BLX2 - Weight | 7.7 oz. (218 g) without batteries |
| BLX2 - Housing | Molded ABS |
| BLX2 - Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| BLX2 - Battery Life | up to 14 hours (alkaline) |
