Sennheiser XSW IEM SR Stereo Transmitter

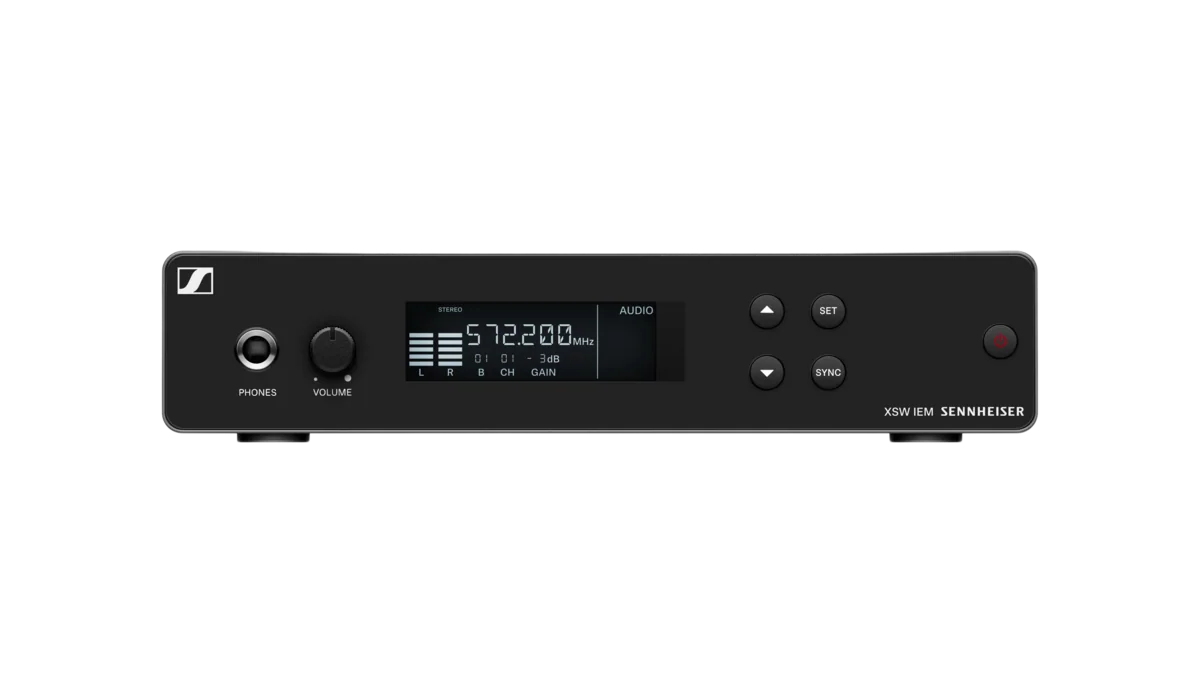

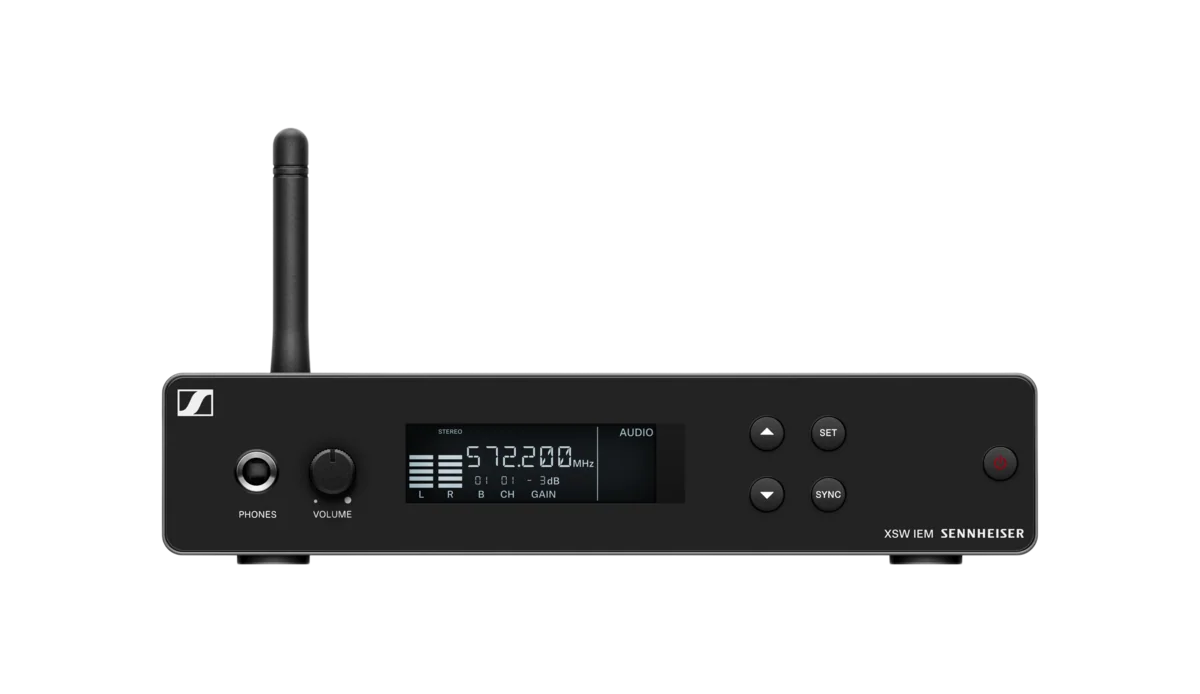

A second mix needs a second transmitter, not a second whole system. The XSW IEM SR is that transmitter: one stereo UHF channel in a 200 x 128 x 42 mm metal housing with a backlit front panel, an antenna, and the NT 12-5CW supply in the box.

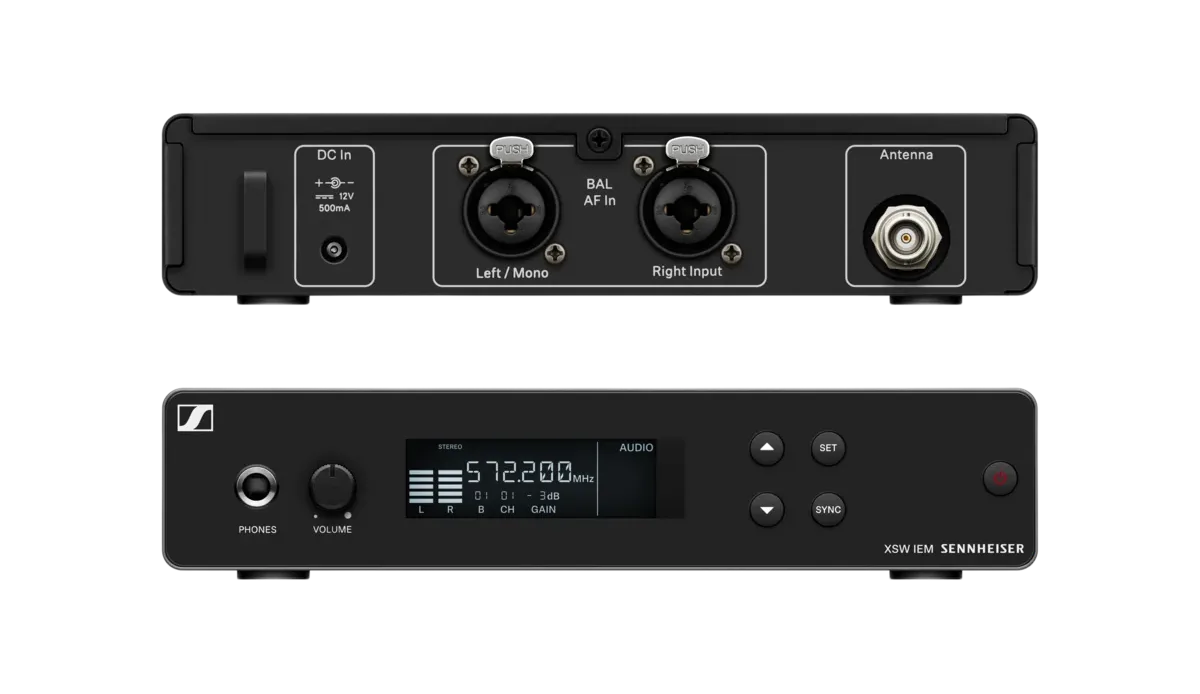

Inputs are two XLR and quarter-inch combo sockets, balanced, so it takes a console aux or matrix feed directly. A quarter-inch headphone output on the front lets the monitor engineer check the mix without stealing a pack. Audio runs 45 Hz to 15 kHz. Buy the band that matches the packs already in the rig: A is 476 to 500 MHz, B is 572 to 596 MHz.

Frequency Range (A / B)476 - 500 / 572 - 596 MHz
AF Frequency Response45 Hz - 15 kHz
Audio Inputs2 x XLR-3 / 6.3 mm combo, balanced
Headphone Output6.3 mm front panel jack
Power Input100 - 240 V, 50/60 Hz, approx. 400 mA
Operating Temperature0 °C to +40 °C
Dimensions200 x 128 x 42 mm
Weight700 g
