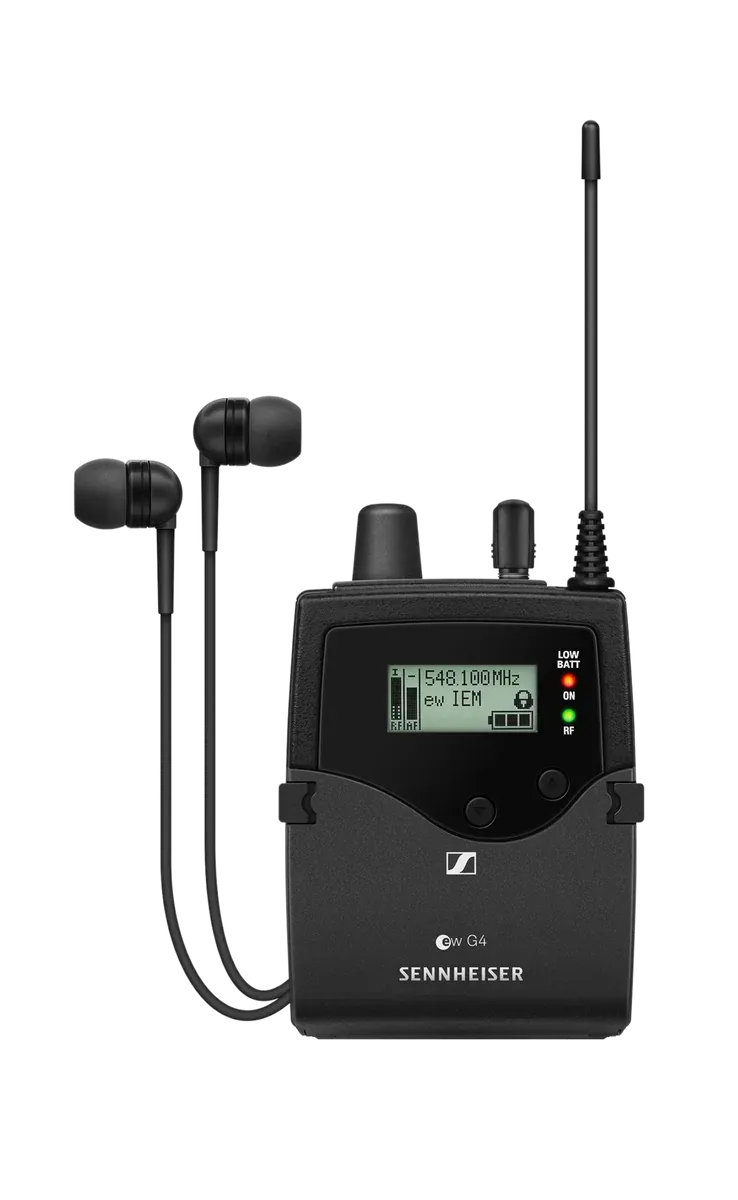

Sennheiser EK IEM G4 Stereo Bodypack Receiver
Add a player to an existing G4 monitor mix and the EK IEM G4 is the part you buy: a stereo bodypack receiver with adaptive diversity from a single antenna, tuned to the same band as the transmitter already in the rack. A pair of IE 4 earphones and two AA cells come with it.
The useful details are on the sides. The limiter runs from minus 18 to minus 6 dB in 6 dB steps and can be switched off entirely, so a singer who wants headroom and an in-ear engineer who wants protection can both be satisfied. High Boost adds 8 dB at 8 kHz for players who need presence over a loud stage. Output is 2 x 100 mW into 32 ohms, which drives a real in-ear cleanly, and the pack runs four to six hours on AA cells or a BA 2015 pack.
- DimensionsApprox. 82 x 64 x 24 mm
- Adjacent channel selectionTypically ≥ 65 dB
- Output power at 2.4 V, 5 % THD, nominal deviation2 x 100 mW at 32 Ω
- Frequency range (A1)470 - 516 MHz
- Frequency range (A)516 - 558 MHz
| Modulation | Wideband FM |
|---|---|
| Frequency Range (A1) | 470 - 516 MHz |
| Frequency Range (A) | 516 - 558 MHz |
| Frequency Range (G) | 566 - 608 MHz |
| Receiving Frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation; 6 frequency banks with up to 16 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Receiver Principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 4 μV, typ. 1.6 μV for 52 dBA rms S/N |
| Adjacent Channel Selection | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Blocking | ≥ 80 dB |
| Squelch | 5 to 25 dBµV, adjustable in steps of 2 dB |
| Pilot Tone Squelch | Can be switched off |
| Compander System | Sennheiser HDX |
| Signal-to-Noise Ratio (1 mV, peak deviation) | Approx. 90 dBA |
| Total Harmonic Distortion (THD) | ≤ 0.9 % |
| Output Power at 2.4 V, 5 % THD, Nominal Deviation | 2 x 100 mW at 32 Ω |
| High Boost | +8 dB at 8 kHz |
| Limiter | -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off |
| Temperature Range | -10 °C to +55 °C |
| Power Supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At nominal voltage: approx. 140 mA; with transmitter switched off: ≤ 25 µA |
| Operating Time | Approx. 4 to 6 hours (depending on volume level) |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | Approx. 125 g |
| Source | Spec sheet (PDF) on sennheiser.com |

- 2 x AA Batteries
- IE 4 Earphones
- Quick guide
