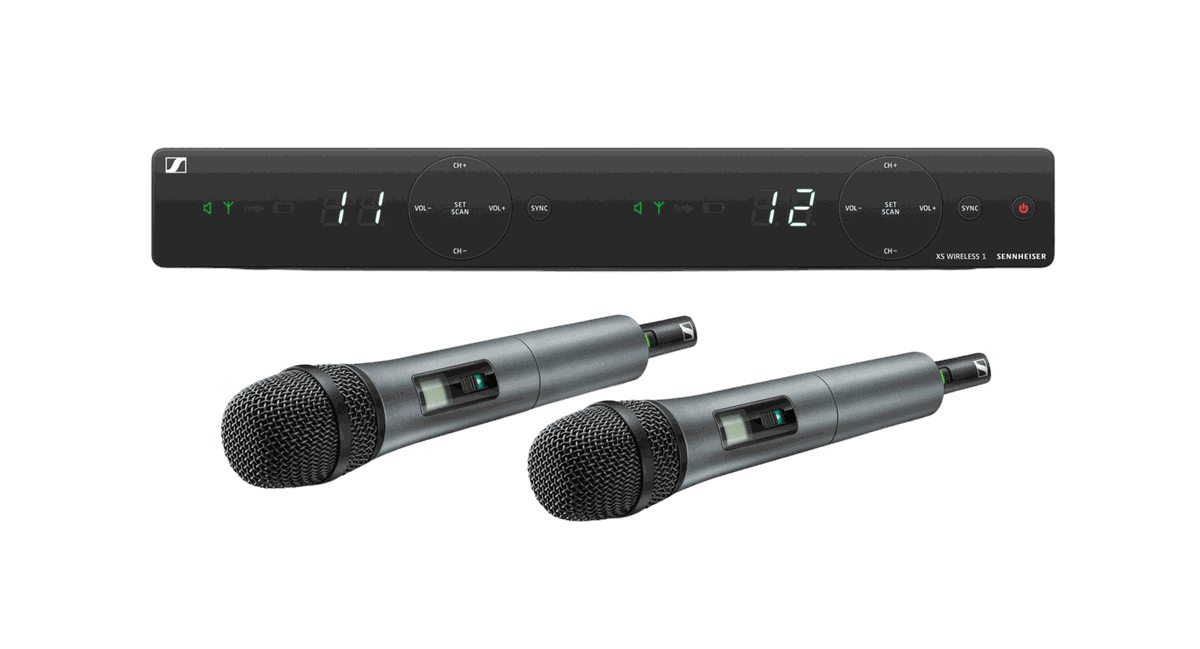

Sennheiser XSW 1-835 DUAL Two-Channel Wireless Handheld System
The XSW 1-835 DUAL-A is a two-channel analog UHF wireless system for singers and presenters who need a second mic without a second receiver. A single half-rack receiver with built-in antennas handles both channels, and the streamlined XS Wireless 1 interface keeps setup simple: an automatic frequency scan and one-button sync over the remote channel gets both handhelds onto clear frequencies fast.
Both SKM 835-XSW handheld transmitters carry Sennheiser's evolution e835 capsule, a cardioid dynamic tuned to cut through a live mix, and each has a mute switch. The system runs wideband FM across up to 24 MHz of switching bandwidth with up to 10 compatible channels in the A range (548-572 MHz). It ships with two SKM 835-XSW transmitters, the EM-XSW 1 DUAL receiver, two MZQ 1 clips, an NT 12-5 CW power supply, and two pairs of AA batteries.
| Modulation | Wideband FM |
|---|---|
| Switching Bandwidth | Up to 24 MHz |
| Receiver | 2-channel, antenna-switching diversity, integrated antennas |
| Compatible Channels | Up to 10 |
| Capsule | e835 (cardioid, dynamic) |
| Signal-to-Noise Ratio | >= 103 dBA |
| THD | <= 0.9% |
| Frequency Range | A (548-572 MHz) |
| Included | Two SKM 835-XSW transmitters, EM-XSW 1 DUAL receiver, two MZQ 1 clips, NT 12-5 CW power supply, two pairs AA batteries |
