Sennheiser XSW 1-835 Wireless Handheld Microphone System
The XSW 1-835 is an all-in-one UHF handheld wireless system aimed at singers and presenters who want reliable sound without a learning curve. The handheld transmitter carries Sennheiser's proven evolution e835 capsule, a cardioid dynamic tuned for live vocals with strong presence and feedback control, so the sound is stage-ready straight out of the box. Setup is close to automatic: an automatic frequency scan finds a clean channel and a remote-channel sync links the transmitter to the receiver in seconds.

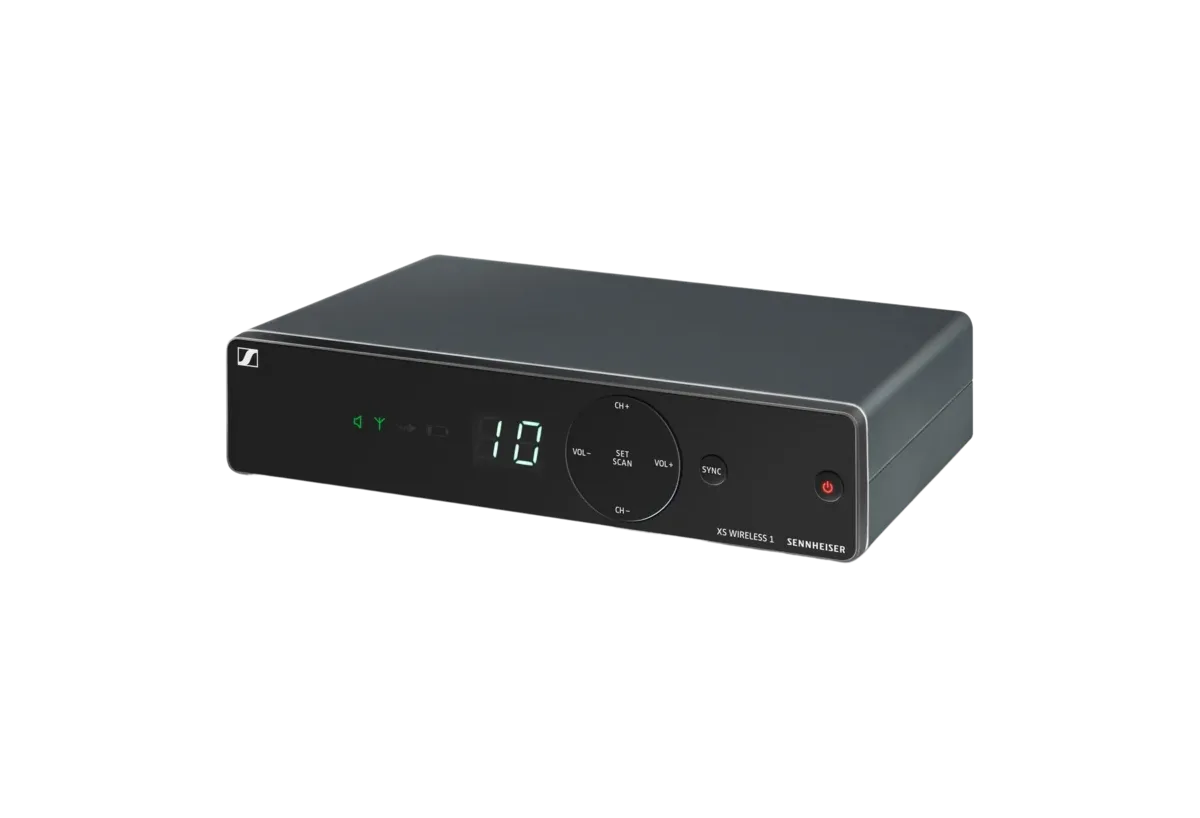

The EM XSW 1 receiver uses antenna-switching diversity with integrated antennas to keep the signal solid as the performer moves, and the system tunes across a wide UHF bandwidth with up to 10 compatible channels for multi-mic use. This is the A frequency range (548-572 MHz). The set includes the EM XSW 1 receiver, the SKM 835 XSW cardioid dynamic handheld transmitter, an NT 12-5 CW power supply, and an MZQ 1 microphone clip.
- Channels8 frequency banks, up to 10 presets
- Frequency RangeA: 548-572 MHz
- Polar patternCardioid
- Sensitivity1.5 mV/Pa
- Power2 AA size batteries, 1.5 V
| Modulation | Wideband FM |
|---|---|
| Frequency Range | A: 548-572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Channels | 8 frequency banks, up to 10 presets; up to 10 compatible channels |
| Receiver | Antenna-switching diversity, integrated antennas |
| Signal-to-Noise Ratio | Greater than or equal to 103 dBA |
| THD | Less than or equal to 0.9% |

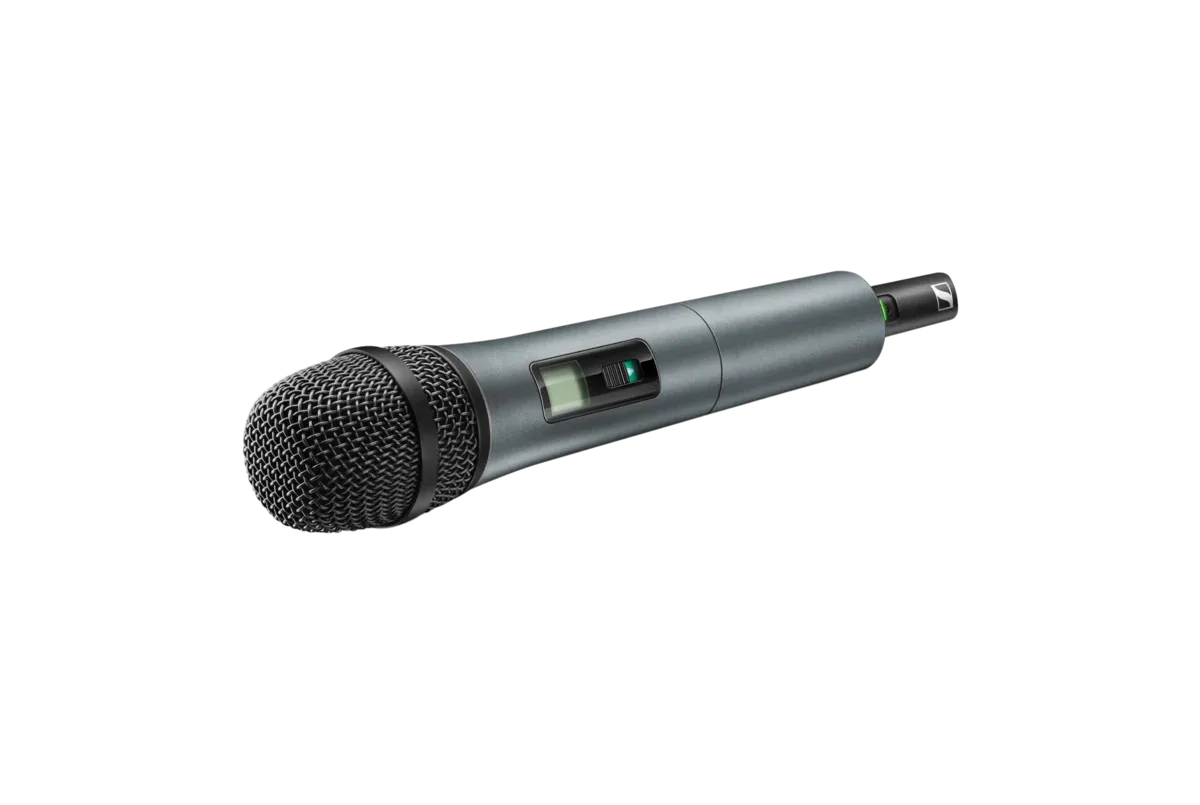

| Microphone | SKM 835 XSW handheld, (e835 capsule) |
| Included | EM XSW 1 receiver, SKM 835 XSW transmitter, NT 12-5 CW power supply, MZQ 1 clip |
| Element | Dynamic |
| Polar pattern | Cardioid |
| Sensitivity | 1.5 mV/Pa |

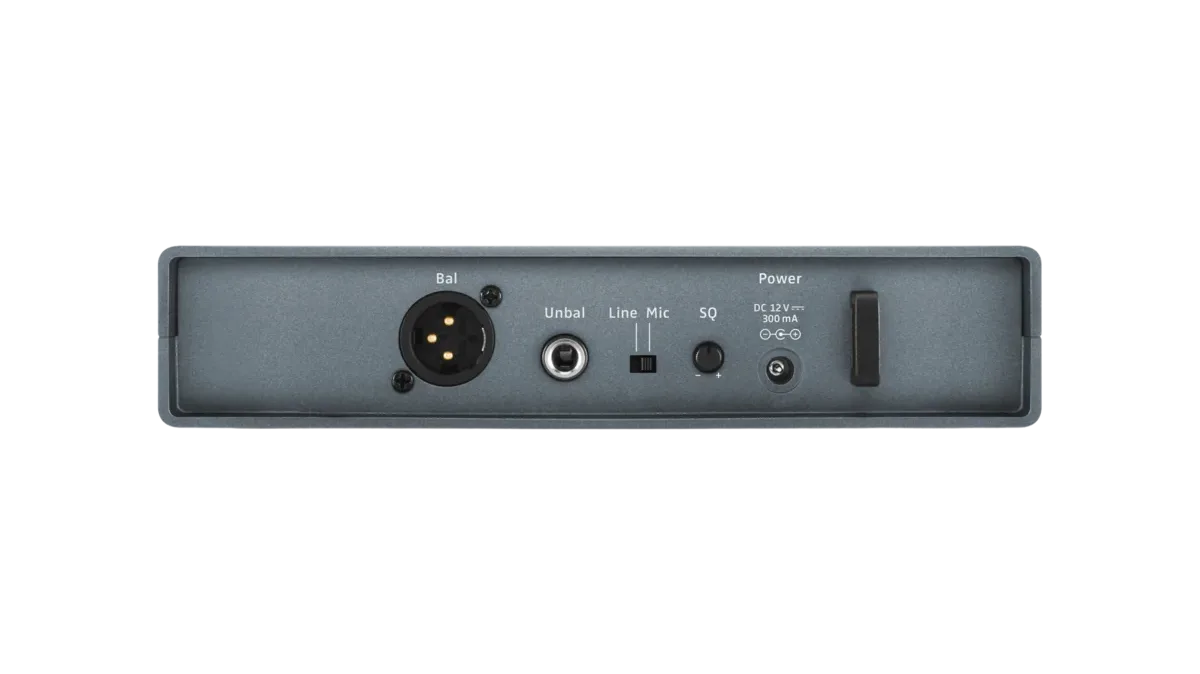

| Connector | Receiver: -3 (balanced) and 6.3 mm jack (unbalanced) outputs |
| Power | 2 AA size batteries, 1.5 V |
| Weight | Handheld approx. 245 g; receiver approx. 340 g |

- EM-XSW 1 Rack receiver
- SKM 835-XSW Handheld transmitter
- MZQ 1 Microphone clip
- NT 12-5CW Power supply with country adapters
- 2 x AA Batteries
