Sennheiser XSW 1-825 Wireless Handheld Microphone System
The XSW 1-825-A is an all-in-one UHF handheld wireless system built for singers and presenters who want a rig that just works. The handheld transmitter carries Sennheiser's proven e825 dynamic cardioid capsule, a warm, feedback-resistant vocal head, and pairs with a receiver that uses antenna-switching diversity and integrated antennas to hold a solid connection across the room.
Setup is automatic: the receiver scans for a clean channel and syncs the transmitter over a remote channel, so there are no menus to fight before a show. It tunes across a wide UHF bandwidth in frequency range A (548-572 MHz) and runs up to 10 compatible channels at once. The set includes one EM XSW 1 receiver, one SKM 825 XSW handheld transmitter, an NT 12-5 CW power supply, and an MZQ 1 mic clip.
- Compatible Channelsup to 10
- Frequency RangeA (548-572 MHz)
- Receiver Frequency Response50-16,000 Hz (-3 dB)
- Polar patternCardioid
- Sensitivity1.5 mV/Pa
| Type | UHF handheld wireless microphone system |
|---|---|
| Microphone | e825 , |
| Frequency Range | A (548-572 MHz) |
| Modulation | Wideband FM |
| Switching Bandwidth | up to 24 MHz |
| Compatible Channels | up to 10 |
| Receiver Frequency Response | 50-16,000 Hz (-3 dB) |
| THD | less than or equal to 0.9% |
| Signal-to-Noise Ratio | greater than or equal to 103 dBA |
| Included | EM XSW 1 receiver, SKM 825 XSW transmitter, NT 12-5 CW power supply, MZQ 1 clip |
| Polar pattern | Cardioid |
| Sensitivity | 1.5 mV/Pa |

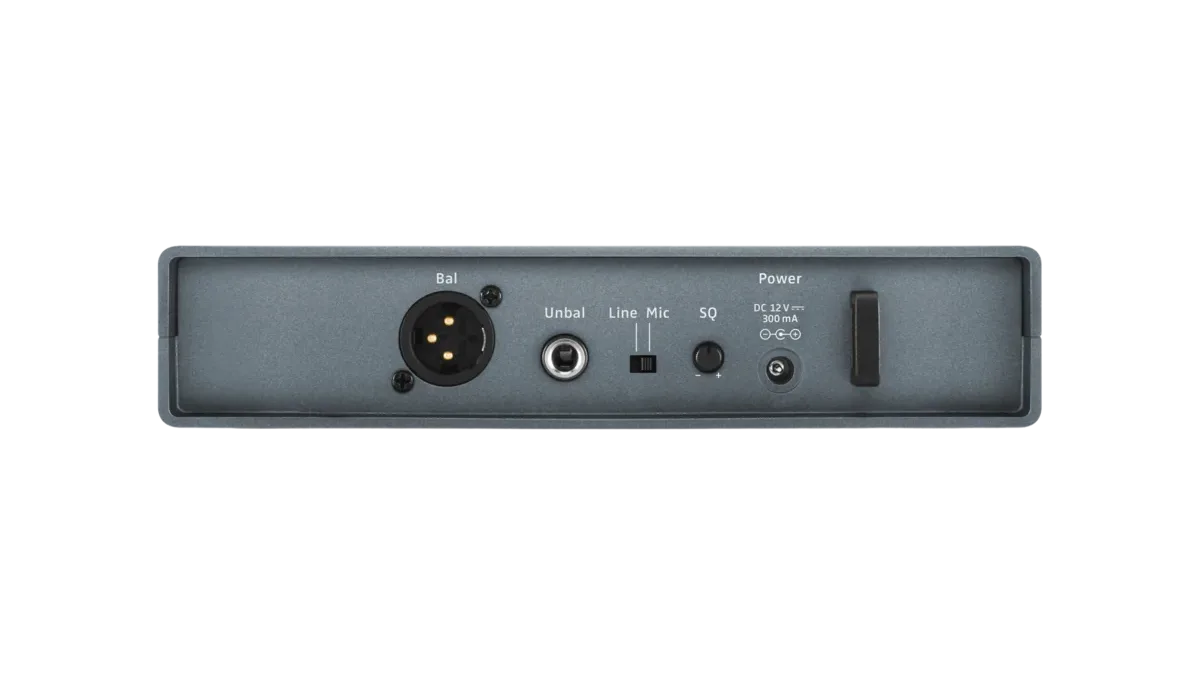

| Connector | Receiver: -3 (balanced) and 6.3 mm jack (unbalanced) outputs |
| Power | 2 AA size batteries, 1.5 V |
| Weight | Handheld approx. 245 g; receiver approx. 340 g |

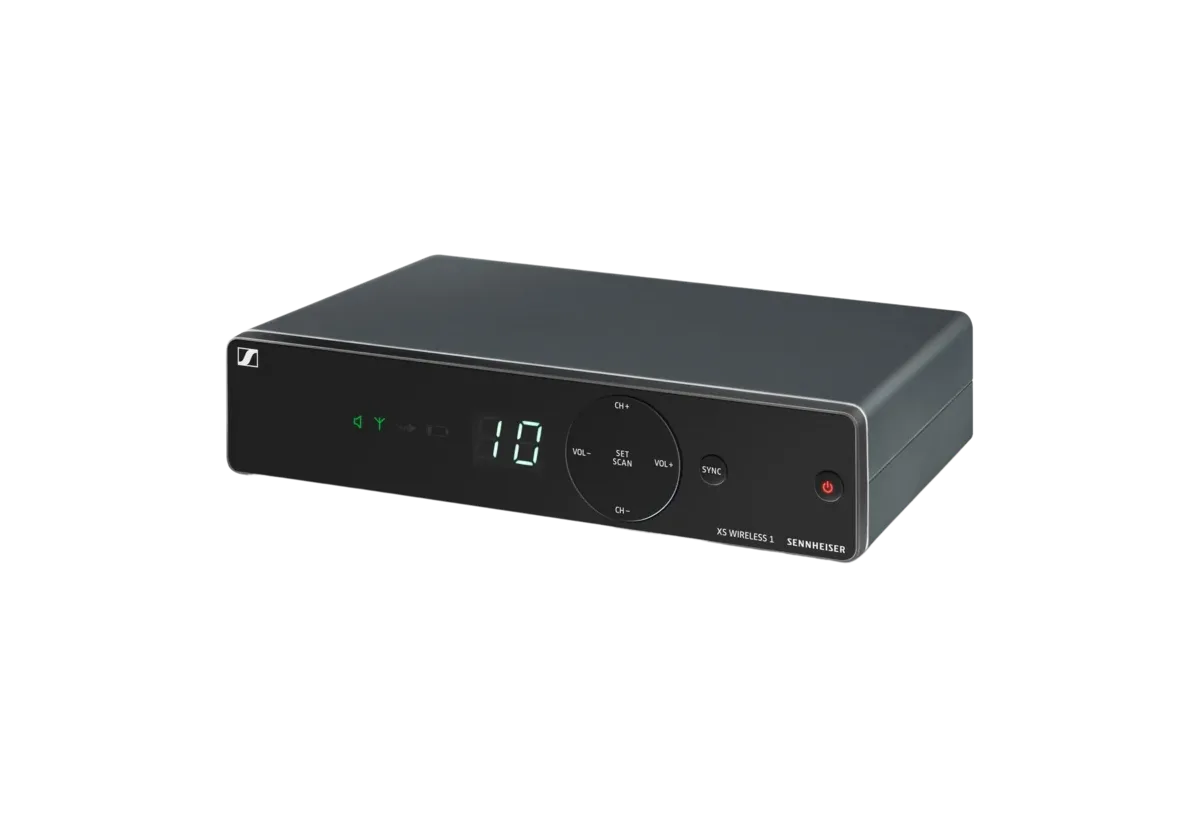

- EM-XSW 1 Rack receiver

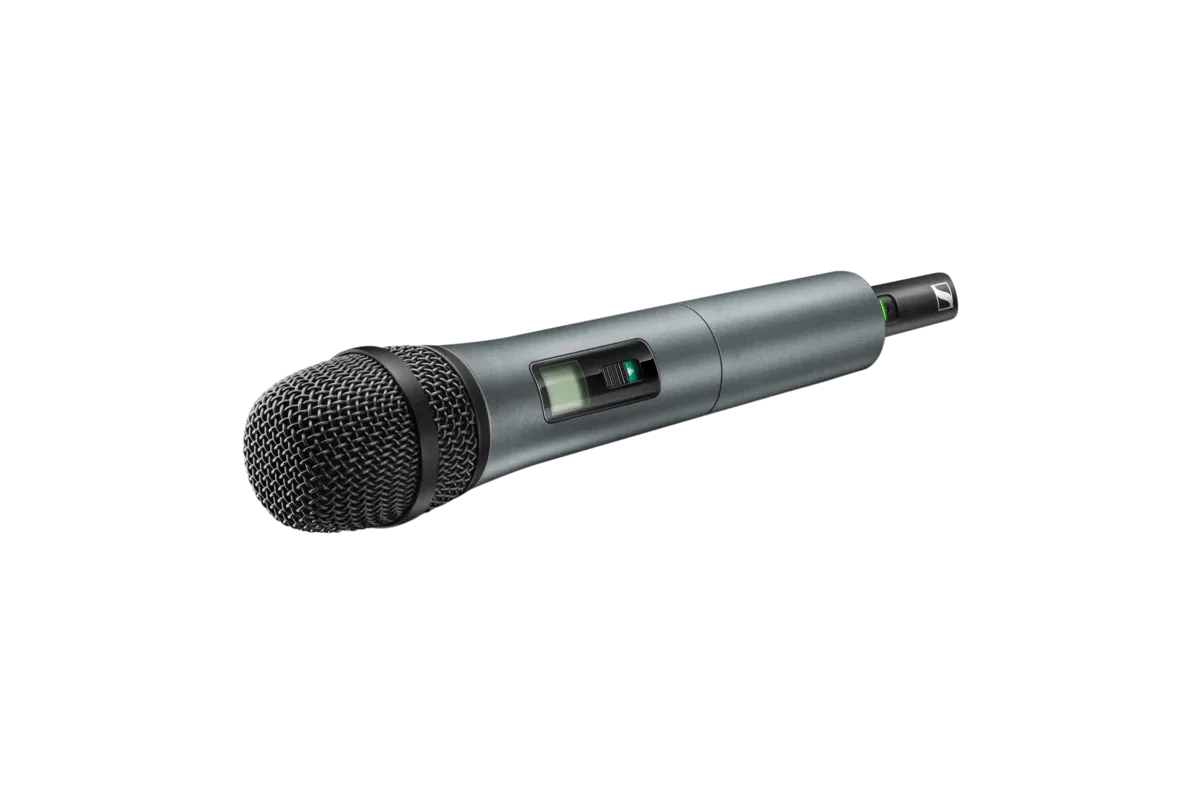

- SKM 825-XSW Handheld transmitter
- MZQ 1 Microphone clip
- NT 12-5CW Power supply with country adapters
- 2 x AA Batteries
