Sennheiser XSW 2-CI1 Wireless Instrument System

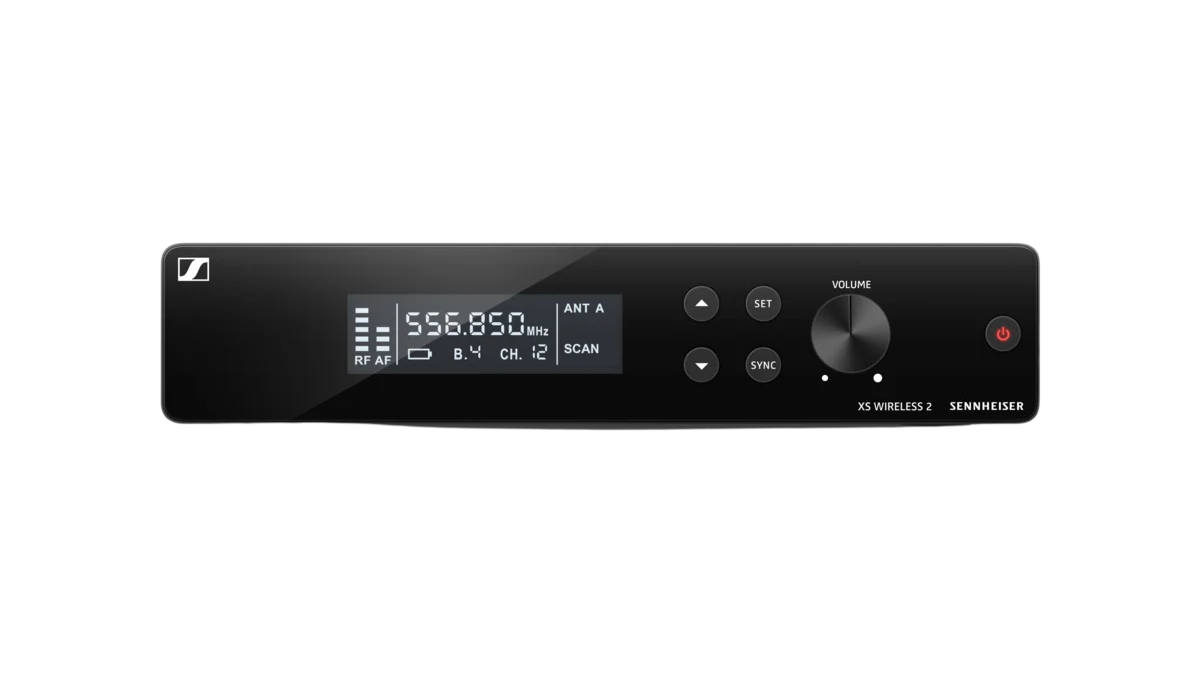

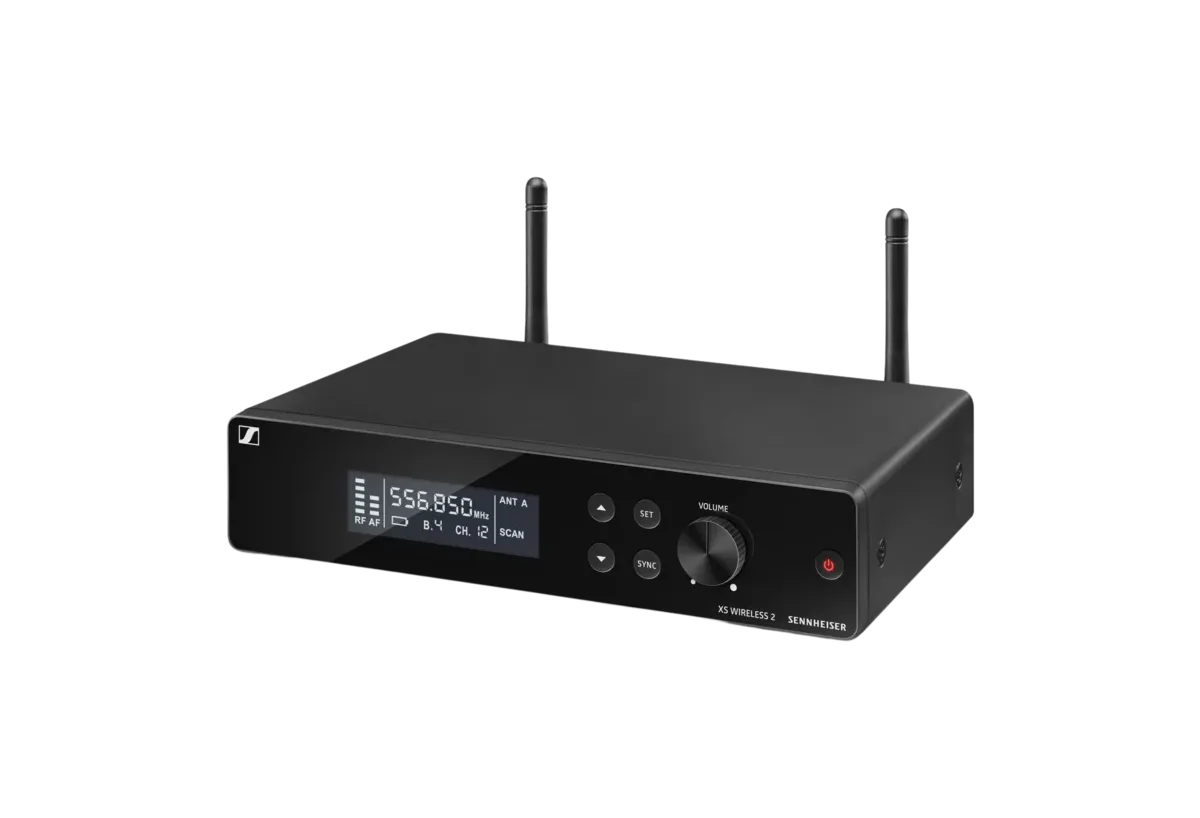

The XSW 2-CI1-A is the step-up UHF wireless system for guitar and bass, built around a True Diversity receiver in a metal housing with an unbalanced 1/4-inch output. Two receiver sections and external antennas hold the signal better than an entry-level system; a backlit LCD gives manual control.

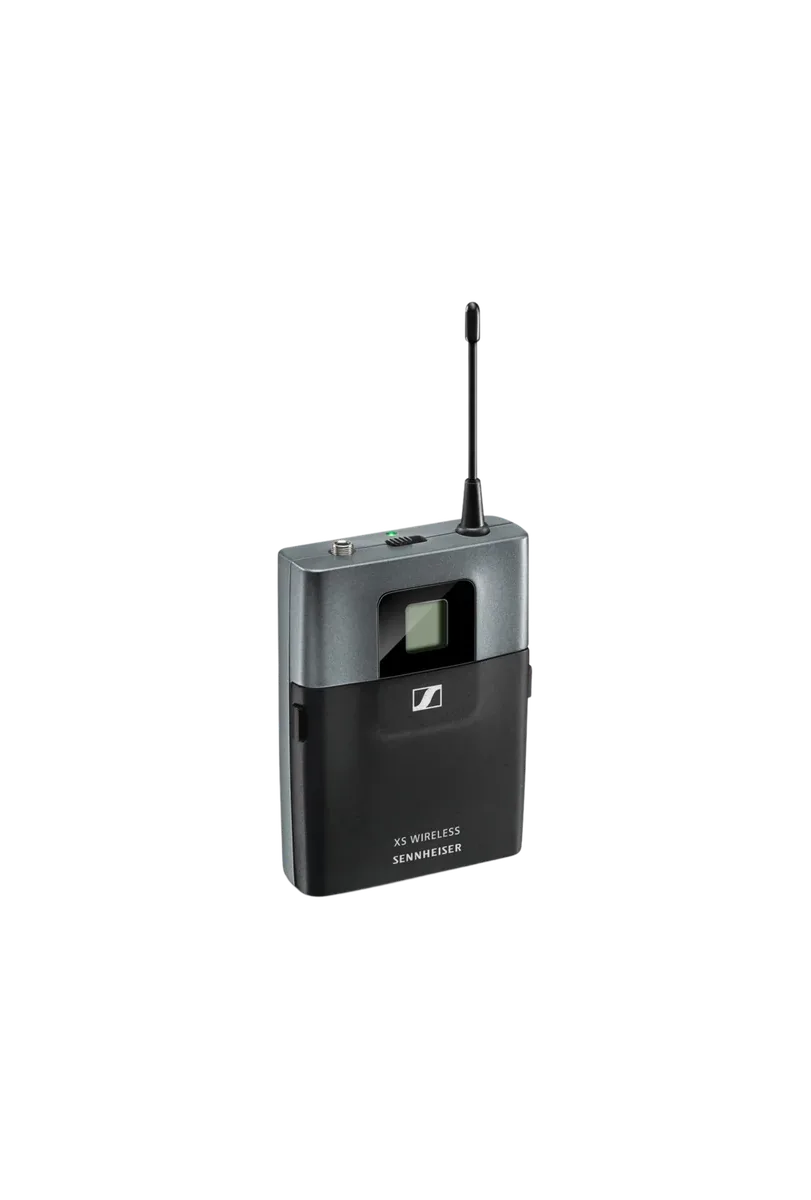

The SK XSW bodypack has an illuminated mute button, connects to the instrument through the CI 1 cable, and runs about 10 hours per charge. Automatic frequency management and remote-channel sync make setup fast, and the system tunes frequency band A (548-572 MHz) with up to 12 compatible channels. The set includes the EM XSW 2 receiver, an SK XSW bodypack, a CI 1 instrument cable, an NT 12-5 CW power supply, and a GA 1 XSW 2 rackmount kit.
- Dimensionsapprox. 200 x 42 x 127 mm
- Battery capacity (Ah)2.3
- ConnectionWireless
- Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu
- Adjustment range transmitter0 to -30 dB, adjustable in 10 dB steps
| Receiver Principle | Double superheterodyne |
|---|---|
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Frequency Range | 548.000 - 572.000 |
| Audio Frequency Response | 50 to 16,000 Hz (-3 dB) |
| Signal-to-Noise Ratio | ≥ 103 dB(A) |
| Squelch | Switchable from 3 dBμV to 28 dBμV (via Pilot Tone) |
| Line / Mic Level | 20 dB, switchable |
| Connection | Wireless |
| Battery Capacity (Ah) | 2.3 |
| Battery Count | 2 |
| Battery Voltage (V) | 1.5 |
| Battery Operating Time (h) | Approx. 10 hrs |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |

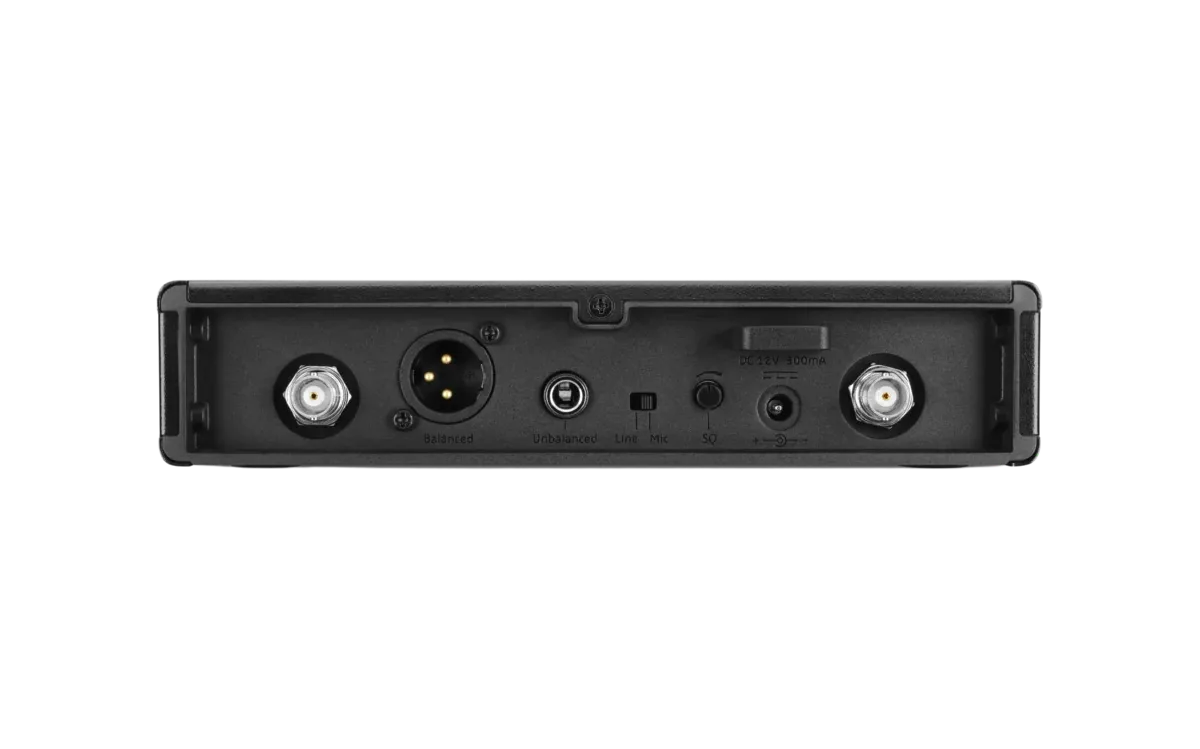

| Output Voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, socket (balanced): +12 dBu |
| Dimensions | Approx. 200 x 42 x 127 mm |
| Product Weight (g) | 680 |
| Source | Full specifications on sennheiser.com |

- EM-XSW 2 Rack receiver
- SK-XSW Bodypack transmitter
- CI 1 Instrument cable

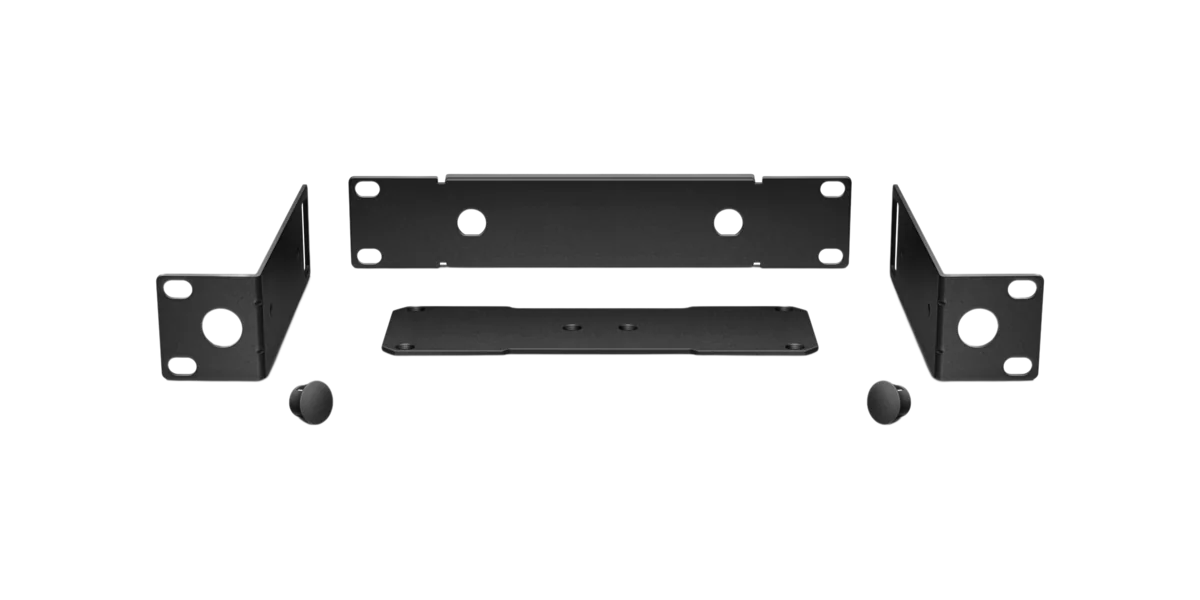

- GA 1-XSW 2 Rackmount kit
- NT 12-5CW Power supply with country adapters
- 2 x AA Batteries
