Sennheiser XSW 1-ME3 Wireless Headworn System
The XSW 1-ME3 is an all-in-one UHF headworn wireless system built for public speakers, presenters, and fitness or worship leaders who need both hands free. It pairs a lightweight ME 3-II cardioid condenser headmic with a compact bodypack transmitter, keeping the capsule close to the mouth for consistent level and strong gain-before-feedback while the presenter moves. Setup stays simple: an automatic frequency scan finds a clear channel and a remote-channel sync links the bodypack to the receiver without menu diving.

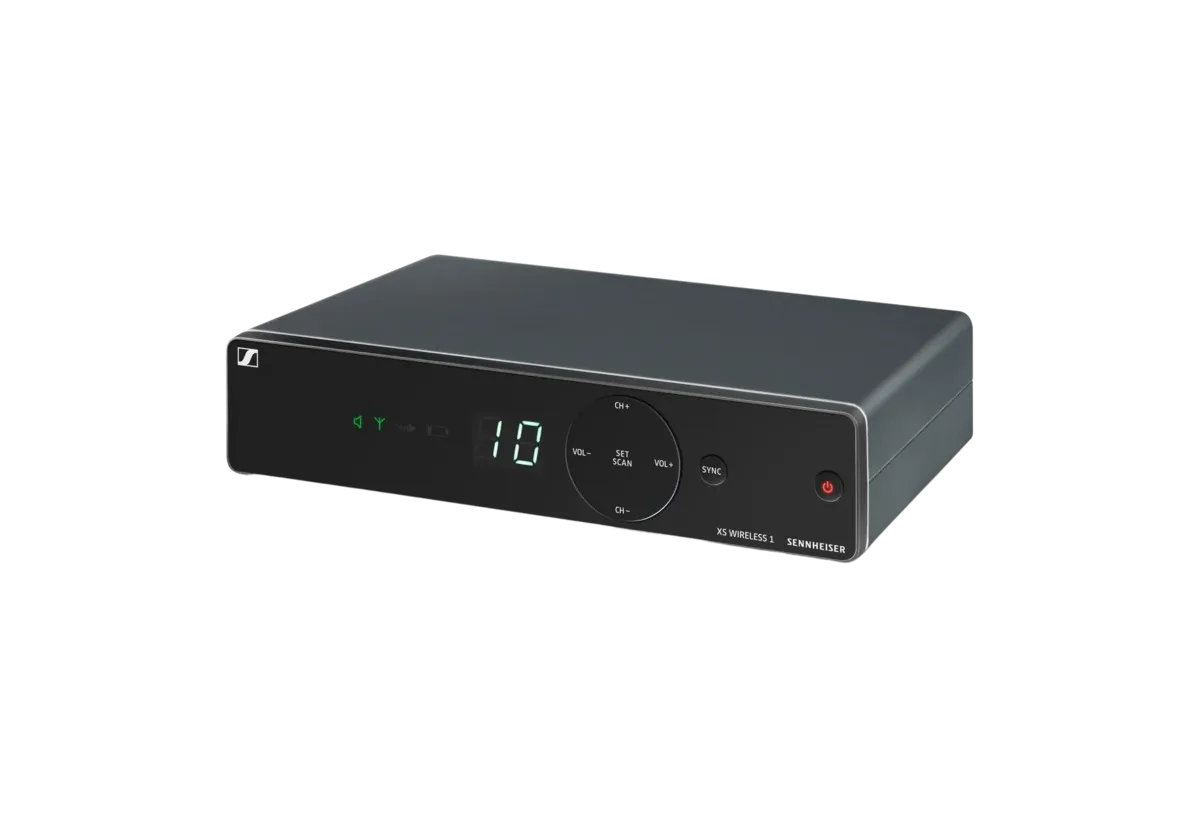

The EM XSW 1 receiver uses antenna-switching diversity with integrated antennas for a stable signal, and the system tunes across a wide UHF band with up to 10 compatible channels for running several systems together. This is the A frequency range (548-572 MHz). The set includes the EM XSW 1 receiver, the SK XSW bodypack transmitter, the ME 3-II cardioid condenser headmic, and an NT 12-5 CW power supply.
- Dimensionsapprox. 200 x 42 x 127 mm
- Battery capacity (Ah)2.3
- ConnectionWireless
- Input sensitivity1.5 mV / Pa
- Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu
| Transducer type | |
|---|---|
| Receiver principle | Double superheterodyne |
| Total harmonic distortion (THD) | ≤ 0.9% |
| Adjustment range transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Frequency range | 548.000 - 572.000 |
| Audio frequency response | 50 to 16,000 Hz (-3 dB) |
| Signal-to-noise ratio | ≥ 103 dB(A) |
| Pickup pattern | |
| Squelch | adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line / Mic level | 20 dB, switchable |
| Connection | Wireless |
| Battery capacity (Ah) | 2.3 |
| Battery count | 2 |
| Battery voltage (V) | 1.5 |
| Battery operating time (h) | Approx. 10 hrs |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Input sensitivity | 1.5 mV / Pa |

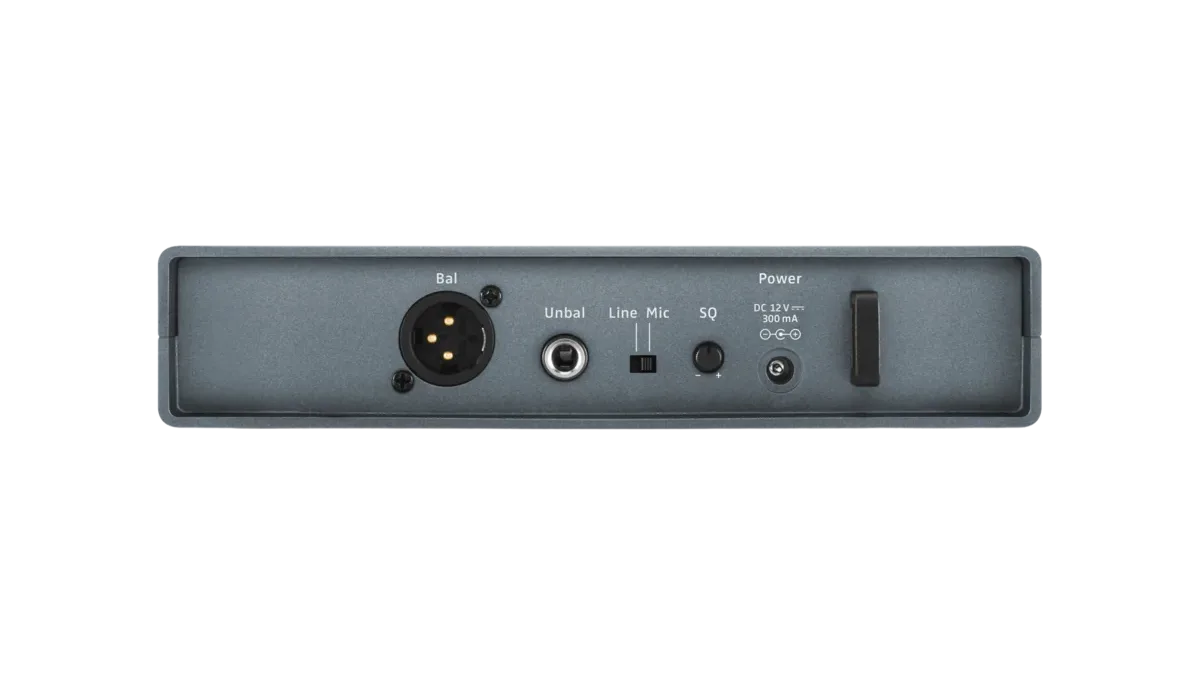

| Output voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, socket (balanced): +12 dBu |
| Dimensions | approx. 200 x 42 x 127 mm |
| Product weight (g) | 340 |

- EM-XSW 1 Rack receiver

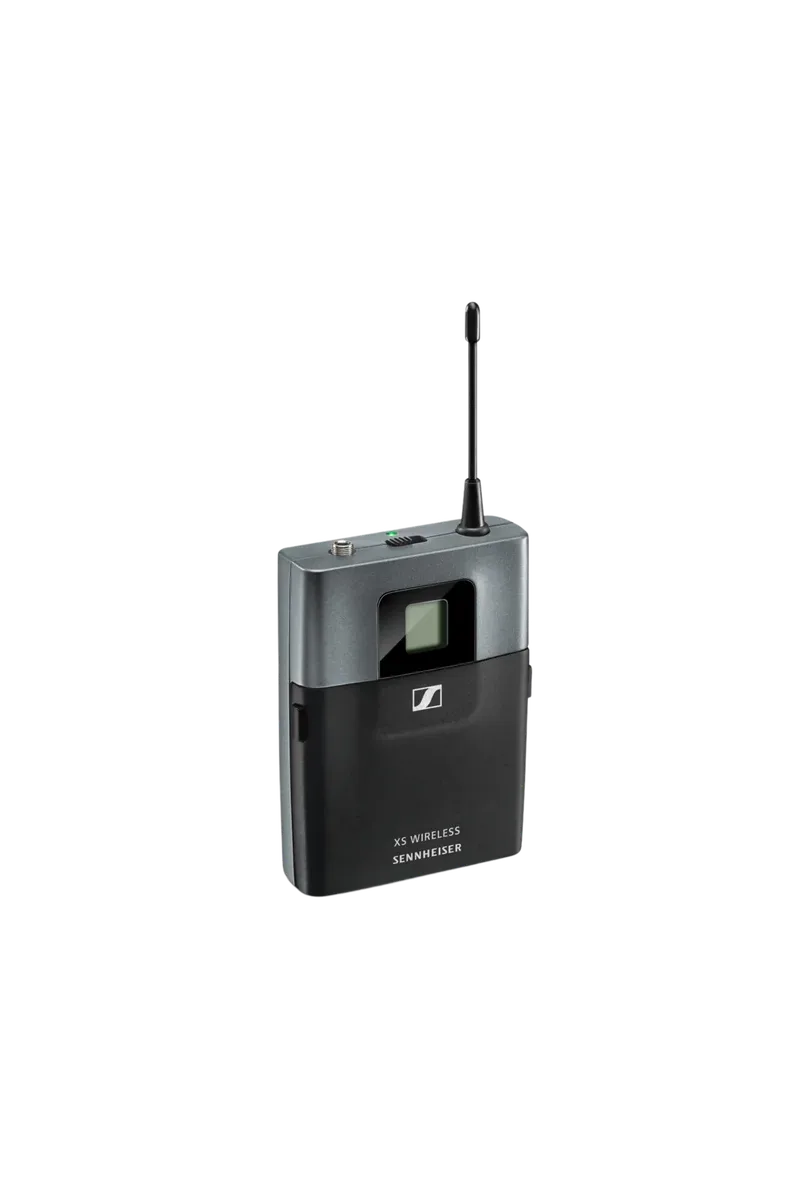

- SK-XSW Bodypack transmitter
- ME 3 Headset microphone
- NT 12-5CW Power supply with country adapters
- 2 x AA Batteries
