Sennheiser XSW-D Instrument Digital Wireless System

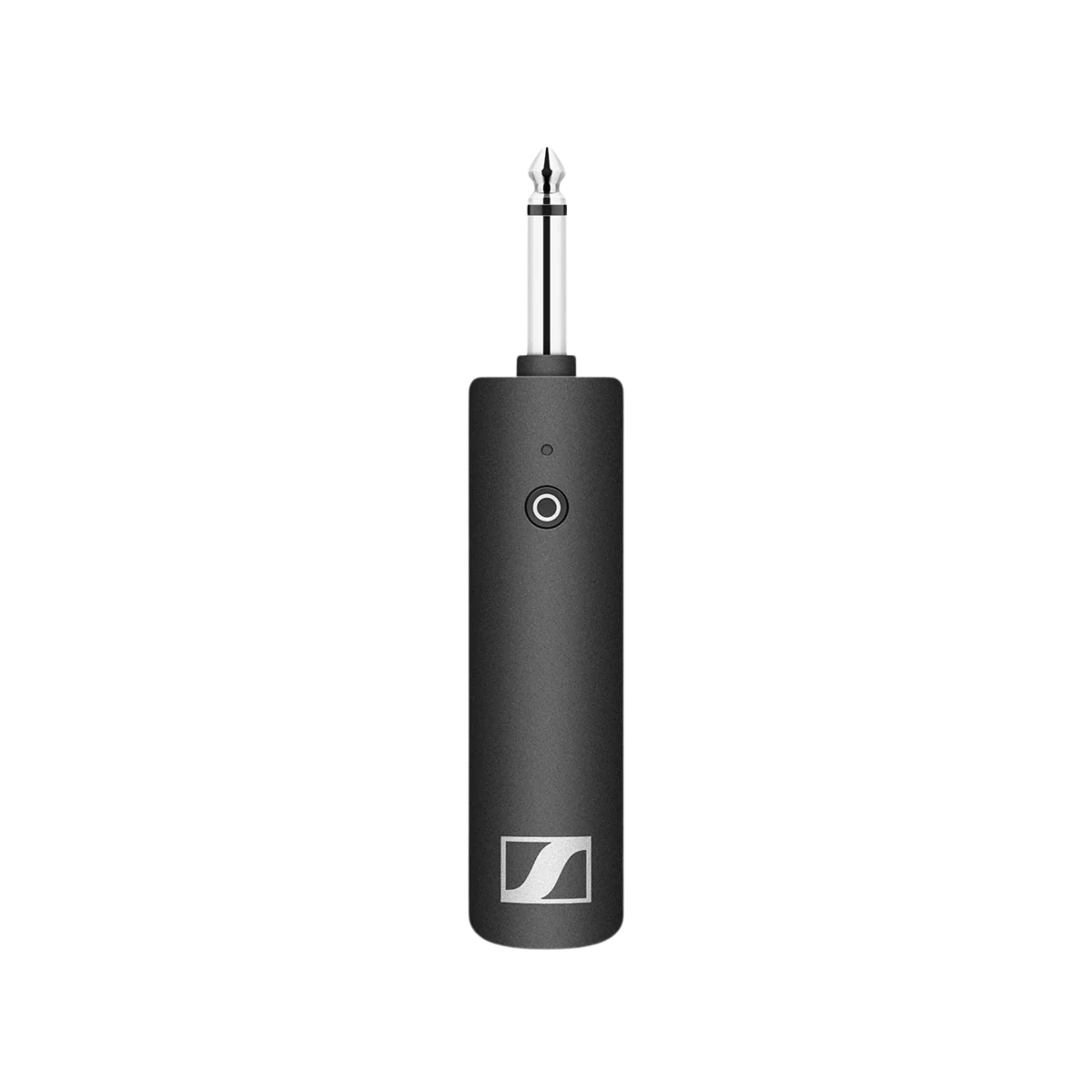

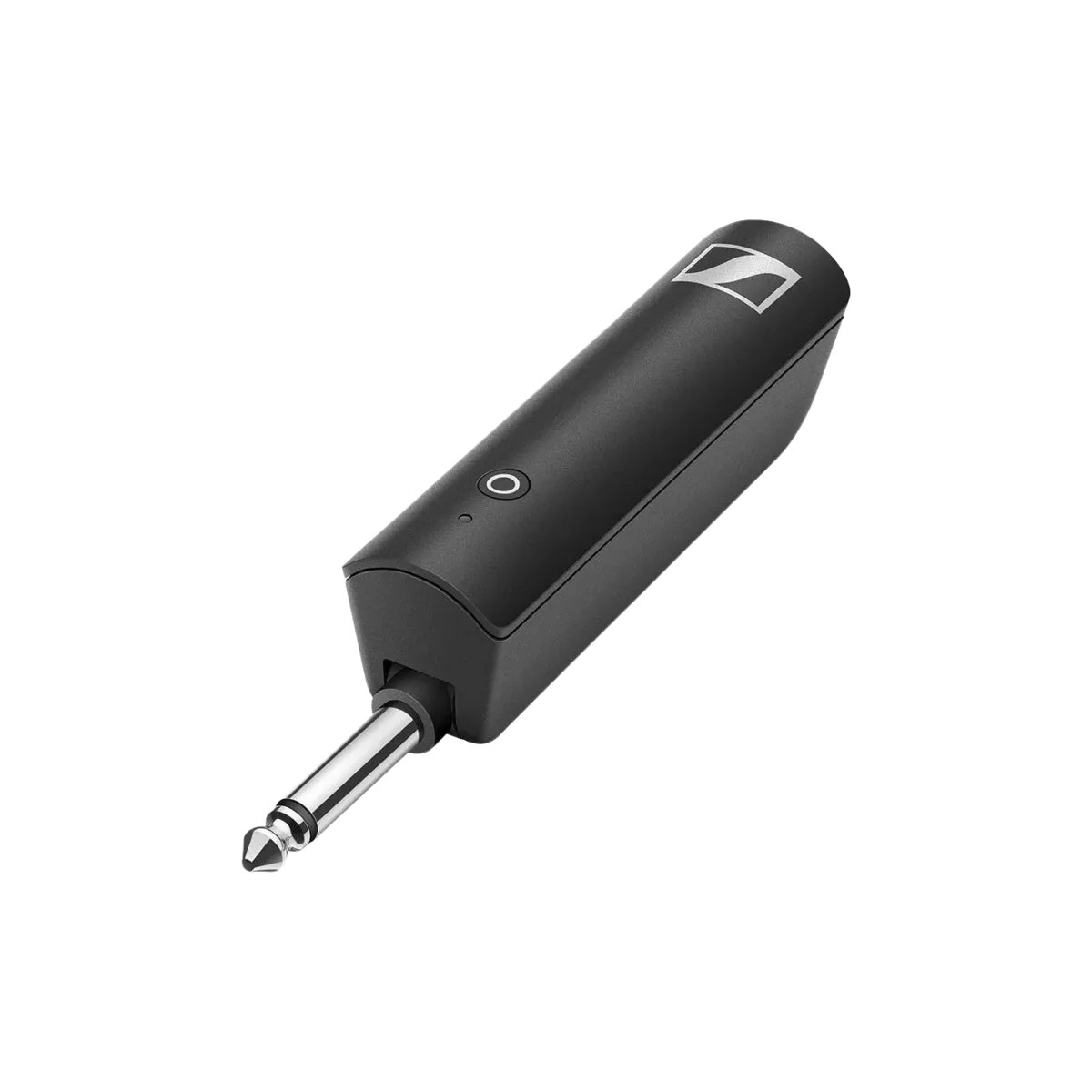

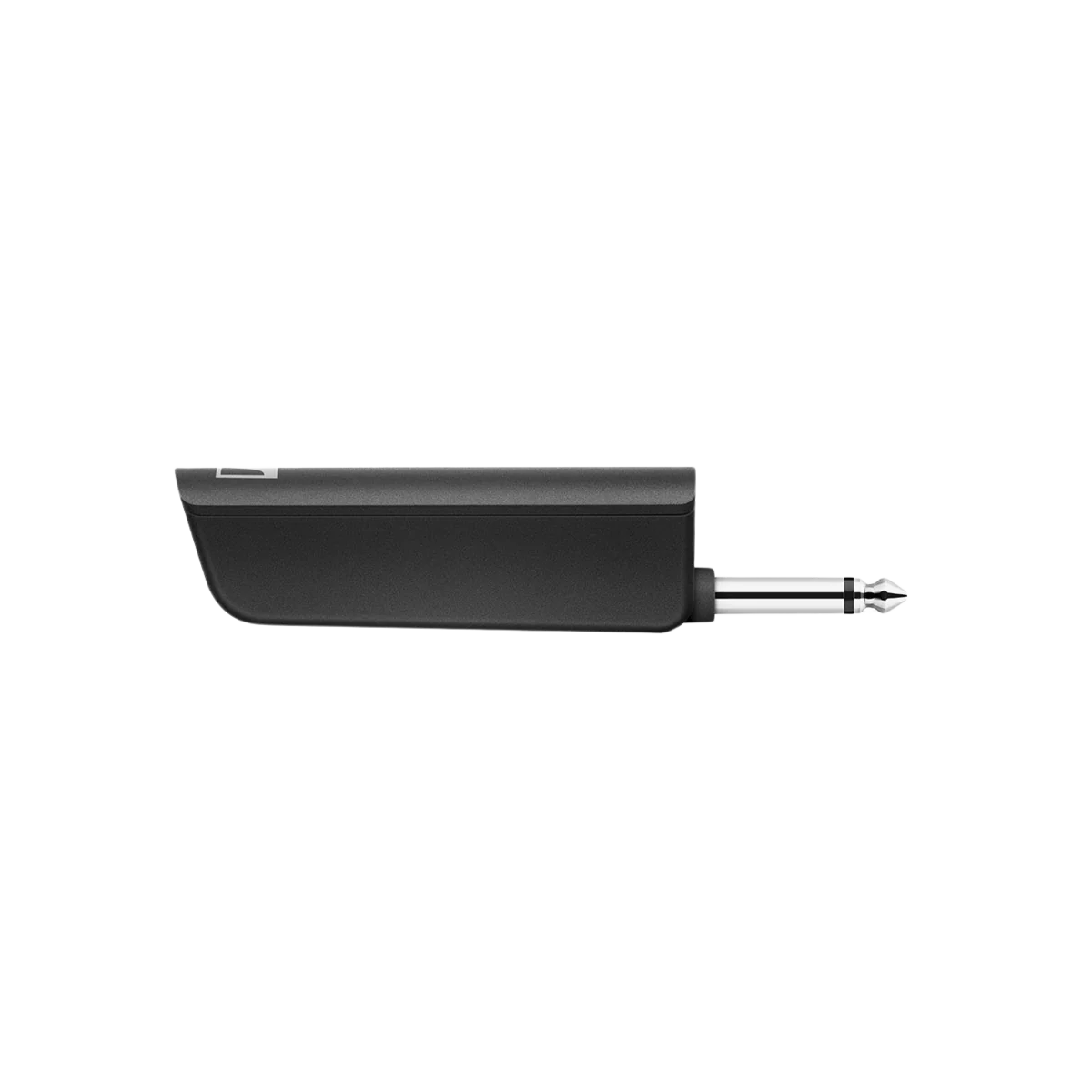

The XSW-D Instrument is a clip-on 2.4 GHz digital wireless system that plugs straight into a guitar or bass output jack, with no bodypack or belt clip to manage on stage. One-touch pairing links the transmitter and receiver at the factory, so a player can go wireless without programming a frequency.

aptX Live encoding keeps latency under 4 ms so a guitarist does not hear a delay between playing and hearing the amp, and worldwide 2.4 GHz operation means it works the same in any country. A Li-Ion battery runs up to 5 hours per charge with roughly a 3 hour recharge, and it is sold as a complete transmitter-plus-receiver Base Set or as a standalone RX or TX to expand or replace an existing XSW-D setup.

RF Band2,400 - 2,483.5 MHz
RangeUp to 75 m (250 ft) in optimal conditions
Audio Bandwidth80 - 18,000 Hz
Latency< 4 ms
CodecaptX Live
BatteryLi-Ion, up to 5 hours; approx. 3 hour recharge
Signal-to-Noise Ratio>= 106 dB
