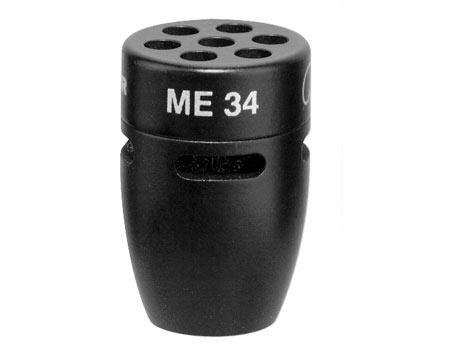

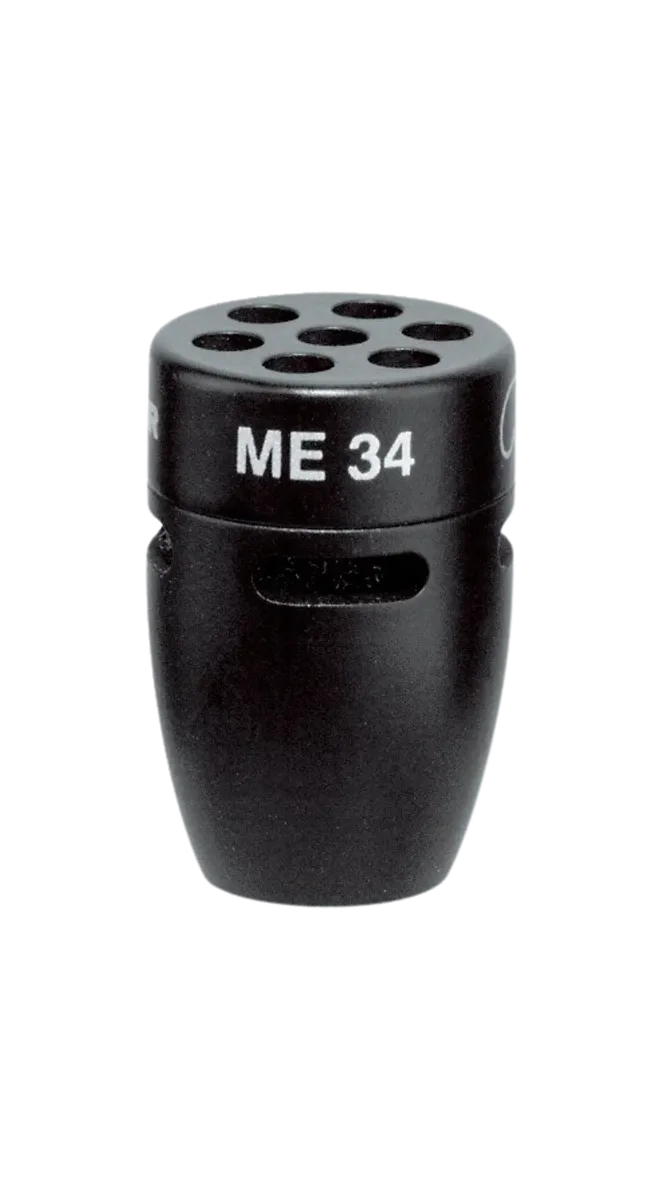

Sennheiser ME 34 Cardioid Gooseneck Microphone Head
Sennheiser splits its installed gooseneck microphones into two parts, and the ME 34 is the capsule end: a pre-polarized cardioid condenser head that screws onto an MZH 30xx gooseneck. Buying the pattern separately from the length is what lets a lectern, a council chamber and a boardroom all use different geometry with the same acoustic character.
The cardioid pattern is the general-purpose choice, wide enough that a speaker who moves stays in it, tight enough to reject a nearby loudspeaker. It runs 40 to 20,000 Hz at 10 mV/Pa and takes 12 to 48 V phantom through the gooseneck. The head is 12 mm across, 18 mm long and 9.5 g, so it reads as part of the furniture rather than as equipment. For a tighter pattern step up to the ME 35; for long-throw pickup use the ME 36.
| Pick-Up Pattern | Cardioid |
|---|---|
| Operating Principle | Pressure gradient transducer |
| Frequency Response | 40 - 20,000 Hz |
| Sensitivity | 10 mV/Pa |
| Max. SPL | 130 dB SPL |
| Electrical Impedance | 50 Ω |
| Min. Terminating Impedance | 1 kΩ |
| Equivalent Noise Level | 37 dB (CCIR) / 26 dB (A) |
| Power Supply | 12 - 48 V phantom via MZH 30xx gooseneck |
| Dimensions | Ø 12 x 18 mm |
| Weight | 9.5 g without gooseneck |
