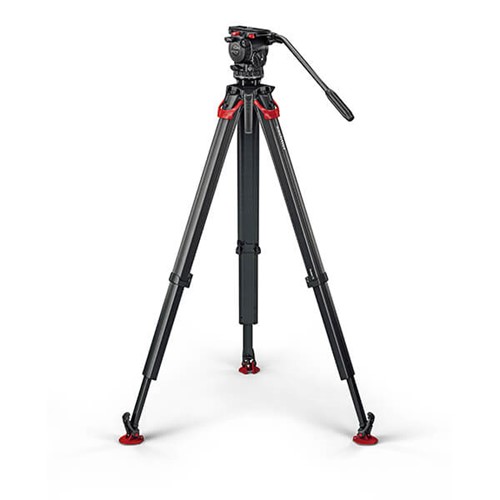

Sachtler System aktiv8 flowtech75 MS Tripod System
System aktiv8 flowtech75 MS (S2068S-FTMS) puts the aktiv8 fluid head on flowtech75 aktiv carbon legs with a mid-level spreader. The head is the point of it: SpeedLevel lets you level from the pan bar without crawling under the head to loosen a ball clamp, and SpeedSwap releases the head from the legs in one movement. It handles 0 to 12 kg at a 100 mm center of gravity, with 15 counterbalance steps and 7 steps of drag on pan and tilt, tilting +90 to -70 degrees.

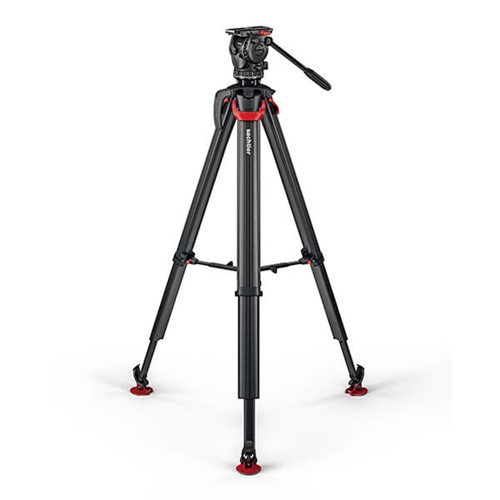

The flowtech75 legs open from the top with a single flip-lock per leg, so you set the height standing up instead of kneeling. With the mid-level spreader fitted the system works from 79 to 174 cm; pull the spreader off and the legs drop to 23 cm for a low-angle shot and still reach 170 cm. It folds to 85 cm, weighs 6.3 kg, and runs from -40 to 60 degrees C. In the padded bag: the aktiv8 head with Sideload plate S, the flowtech75 aktiv tripod with carry handle and attachment mount, and the mid-level spreader.
| Fluid Head | aktiv8 (S2068S), Sideload |
|---|---|
| Payload | 0 - 12 kg (0 - 26.5 lb) at 100 mm CoG |
| Counterbalance | 15 + 0 steps |
| Drag | 7 + 0 steps, pan and tilt |
| Tilt Range | +90° to -70° |
| Bowl Size | 75 mm |
| Camera Plate | Sideload plate S, 12 cm (4.72 in) sliding range |
| Tripod | flowtech75 aktiv, 2-stage carbon fibre, mid-level spreader |
| Height Range | 79 - 174 cm (31.1 - 68.5 in) with spreader; 23 - 170 cm (9.1 - 66.9 in) without |
| Transport Length | 85 cm (33.5 in) |
| System Weight | 6.3 kg (13.9 lb) |
| Temperature Range | -40°C to 60°C (-40°F to 140°F) |
| Included | aktiv8 fluid head with Sideload plate, flowtech75 aktiv tripod with carry handle and attachment mount, mid-level spreader, padded bag |
