Sachtler System aktiv8 flowtech75 GS Tripod System
System aktiv8 flowtech75 GS (S2068S-FTGS) is the ground-spreader build of Sachtler's aktiv8 kit: the aktiv8 fluid head on flowtech75 aktiv carbon legs, braced at floor level instead of mid-leg. The head carries 0 to 12 kg at a 100 mm center of gravity, with 15 counterbalance steps and 7 drag steps on each axis and a +90 to -70 degree tilt range. SpeedLevel levels the head from the pan bar, and SpeedSwap lifts it off the legs in one move when the camera has to go onto a slider or a jib.

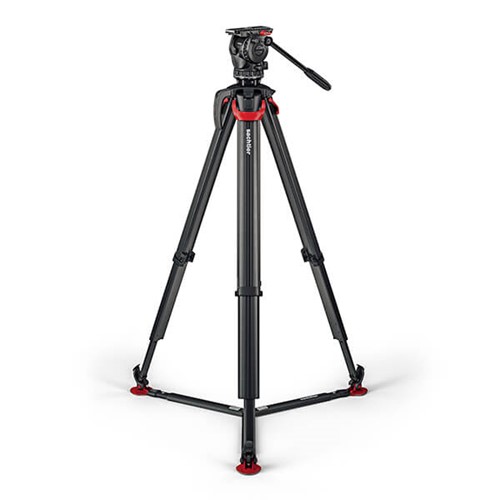

The ground spreader is the right choice on a studio floor, a stage, or any flat surface where you want the legs locked to a fixed spread and a repeatable footprint. With it fitted the system works from 56 to 176 cm; without a spreader the flowtech legs drop to 23 cm and still reach 170 cm. The flip-lock leg brakes sit at the top of each leg, so height changes happen from a standing position. It folds to 85 cm and the kit weighs 6.5 kg. In the padded bag: the aktiv8 head with Sideload plate S and pan bar DV 75, the flowtech75 aktiv tripod with carry handle and attachment mount, and the ground spreader.
| Fluid Head | aktiv8 (S2068S), Sideload |
|---|---|
| Payload | 0 - 12 kg (0 - 26.5 lb) at 100 mm CoG |
| Counterbalance | 15 + 0 steps |
| Drag | 7 + 0 steps, pan and tilt |
| Tilt Range | +90° to -70° |
| Bowl Size | 75 mm |
| Camera Plate | Sideload plate S, 12 cm (4.72 in) sliding range |
| Tripod | flowtech75 aktiv, 2-stage carbon fibre, ground spreader |
| Height Range | 56 - 176 cm (22.0 - 69.3 in) with spreader; 23 - 170 cm (9.1 - 66.9 in) without |
| Transport Length | 85 cm (33.5 in) |
| System Weight | 6.5 kg (14.3 lb) |
| Included | aktiv8 fluid head with Sideload plate S and pan bar DV 75, flowtech75 aktiv tripod with carry handle and attachment mount, ground spreader, padded bag |
