RDL Rcxcd1l Remote Control Panel for RCX-5C Controller

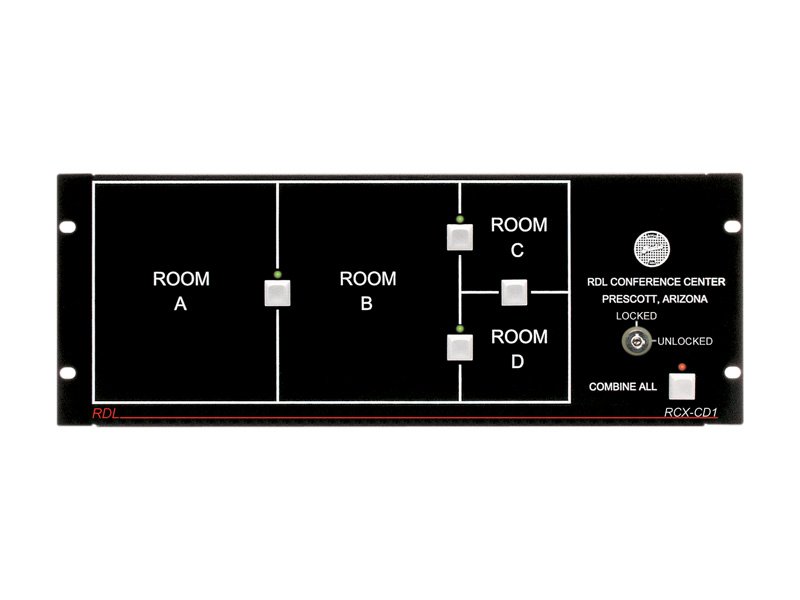

The RDL RCX-CD1L is the key-lock version of the RCX-CD1 remote control panel for an RCX-5C room combining system. Like the standard panel, it is customized by RDL with a semi-custom graphic showing the actual room layout of the installation, so the button map matches the walls staff can see and room combination status is displayed right on the panel. The added key switch lets a venue lock out the controls, keeping combinations set by an operator from being changed by anyone with access to the panel.

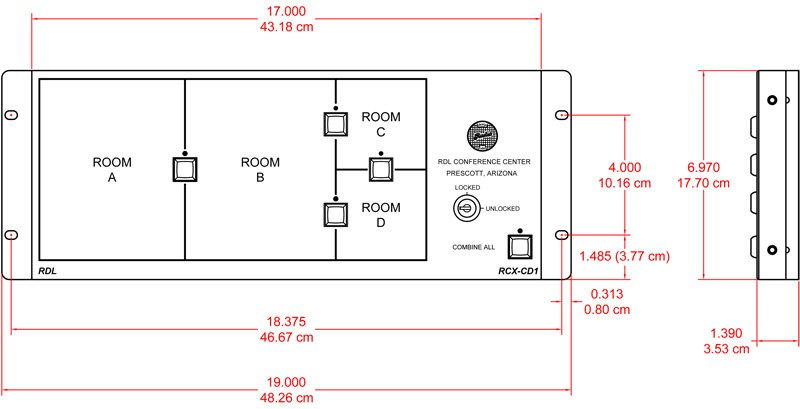

The RCX-CD1L interconnects to the RCX-5C over paired Cat 5 or an unpaired fifteen-conductor control cable, and multiple panels can serve one controller for several operating positions. It mounts in a 19-inch equipment rack (4 RU) or on a wall with the optional RDL RCX-BZL bezel, and is rated for ambient operation from -10 to 55 degrees C.
