RDL Rcxcd1 Remote Control Panel for RCX-5C Controller

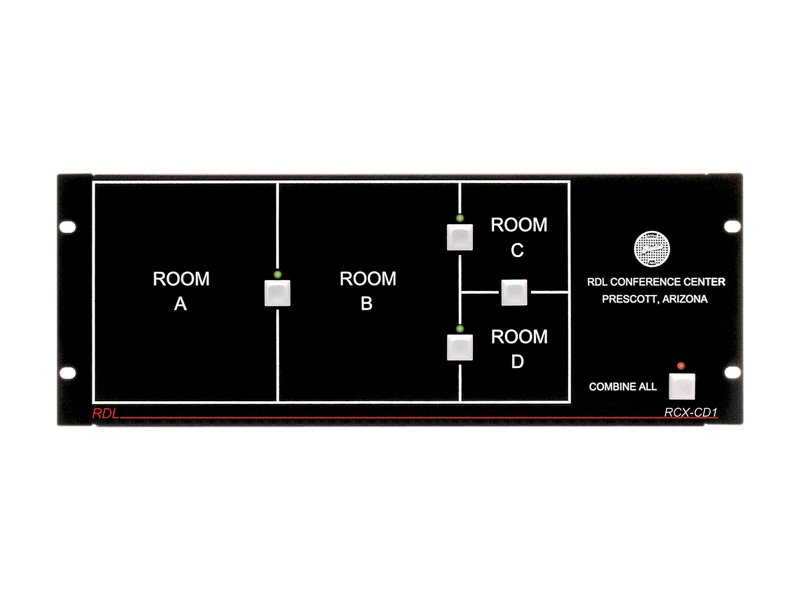

The RDL RCX-CD1 is the remote control panel for an RCX-5C room combining system, giving staff a clear, purpose-drawn interface to combine and separate rooms from the front of house. RDL customizes each panel with a semi-custom graphic that shows the actual room layout of the installation, so a button map matches the walls people can see. That visual layout makes the system easy to train on and quick to operate, and room combination status is shown right on the panel.

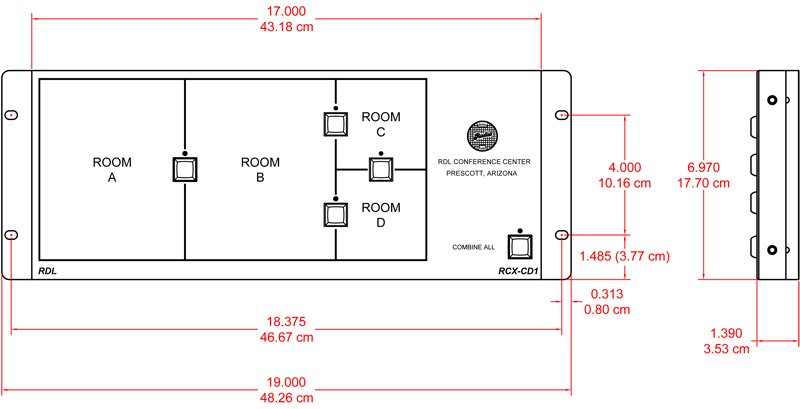

The RCX-CD1 interconnects to the RCX-5C over paired Cat 5 or an unpaired fifteen-conductor control cable, and multiple panels can be connected to a single controller for several operating positions. It mounts in a 19-inch equipment rack (4 RU) or on a wall using the optional RDL RCX-BZL bezel, and is rated for ambient operation from -10 to 55 degrees C. For installations that need to lock out changes, the RCX-CD1L adds a key switch.
