RCF COMPACT M 12W

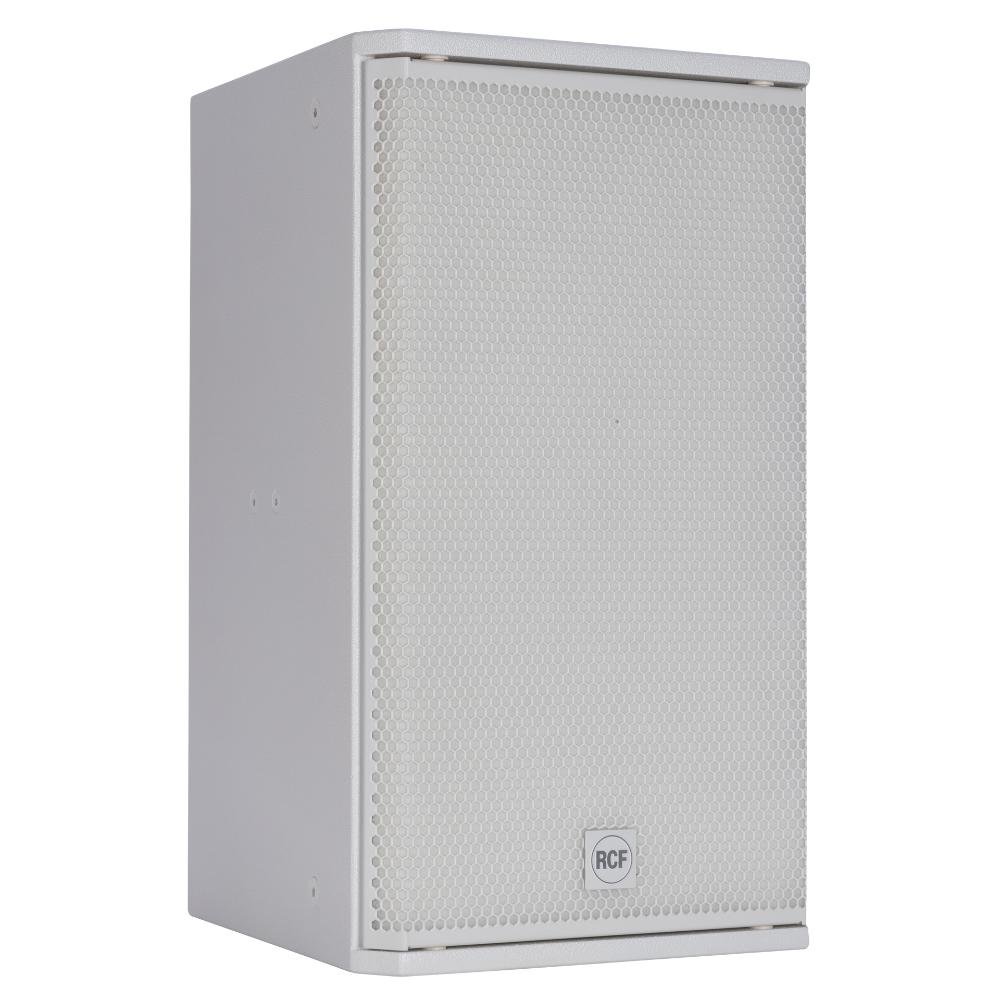

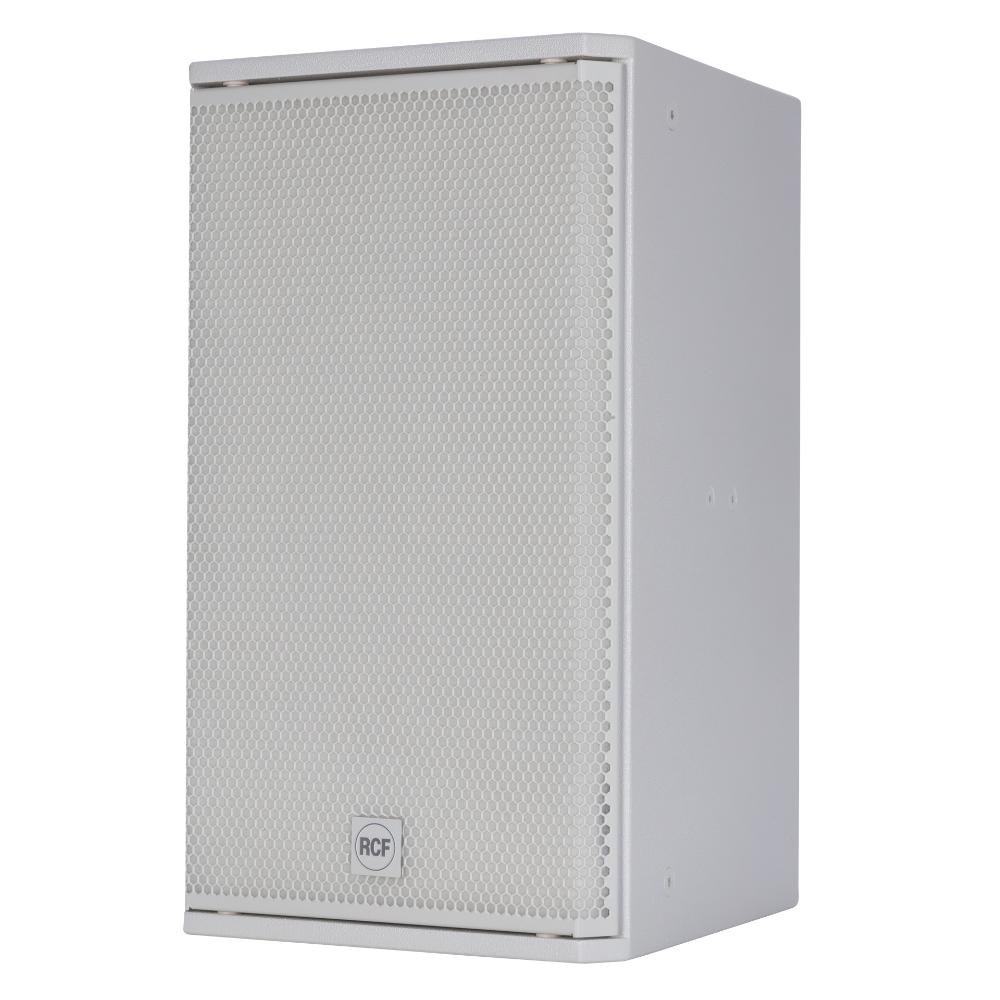

The RCF COMPACT M 12-W is the white finish of the M 12, a multipurpose two-way full-range speaker built around a 12-inch woofer and a 1.4-inch voice-coil compression driver. A 90-degree by 70-degree constant-directivity horn keeps the coverage controlled, and with 300 watts RMS and a 129 dB peak it has the output and the extended 55 Hz low end to carry music and speech across a large room on its own. It suits everything from a house of worship to a bar, gym, or multipurpose hall.

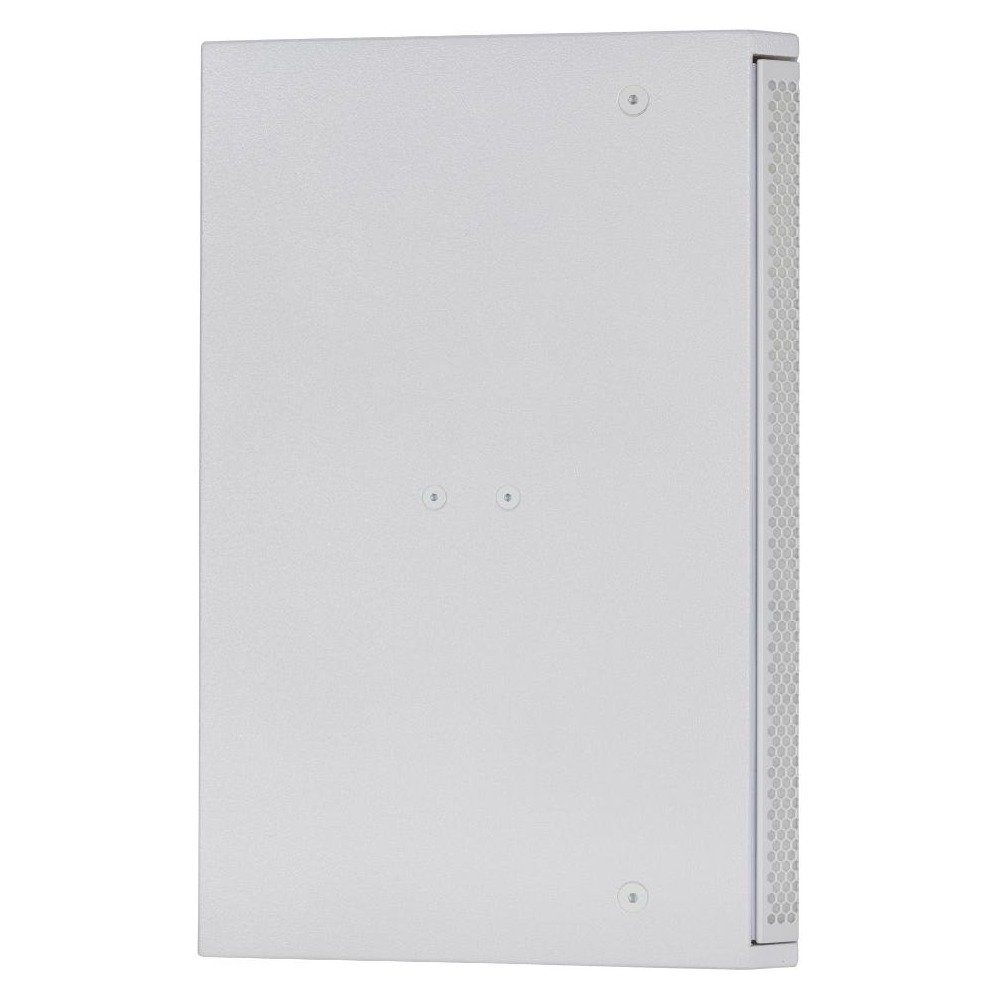

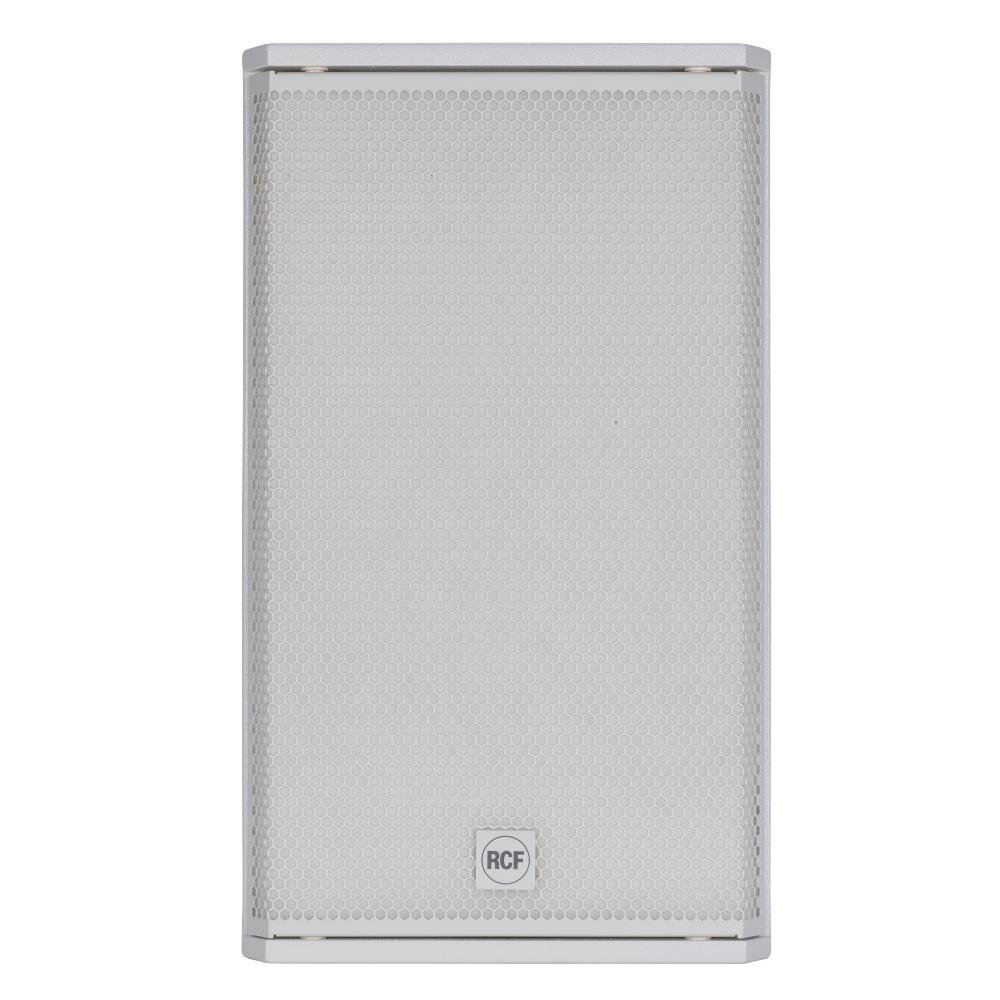

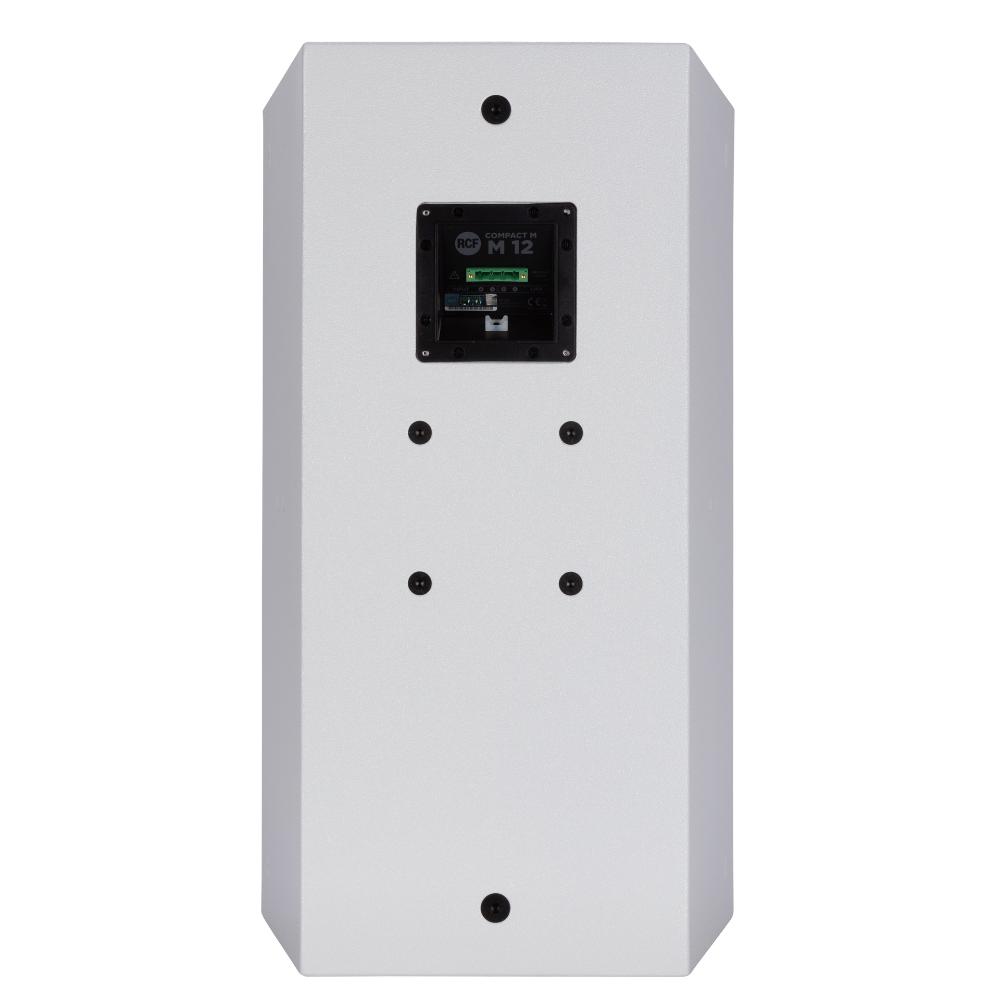

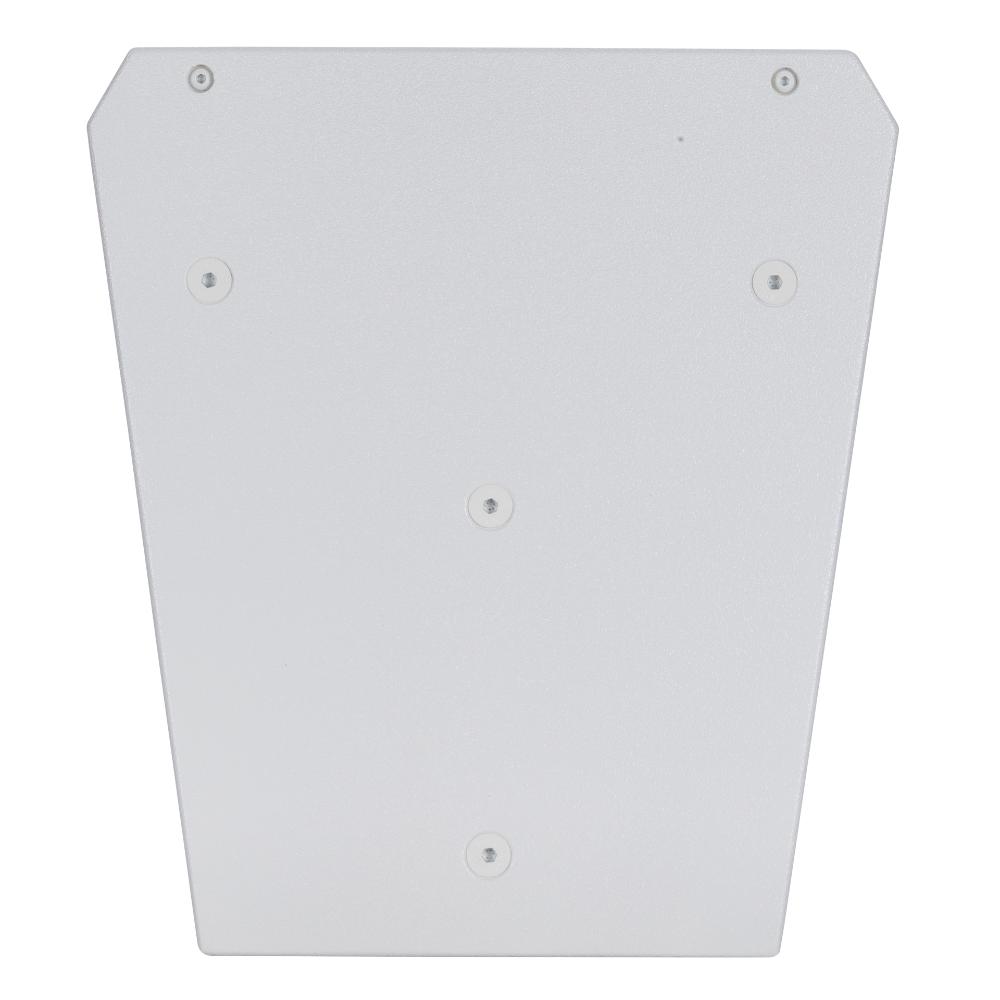

The white cabinet is high-quality plywood with a steel front grille and cloth backing, sturdy enough for permanent install duty and finished to blend into light walls and ceilings. Threaded installation points on the rear, top, and bottom panels give integrators flexible mounting, and a 4-pole Euroblock connector carries the audio input plus a parallel link output so multiple boxes can be daisy-chained on a single home run.

ConfigurationTwo-way passive install speaker
Power Handling300 W RMS
Max SPL129 dB
Frequency Range55 - 20,000 Hz
Coverage Angle90 x 70 degrees (constant directivity)
Woofer1 x 12-inch high-power woofer
HF Driver1 x 1.4-inch voice-coil compression driver
FinishWhite
Connector4-pole Euroblock (input plus parallel link output)
