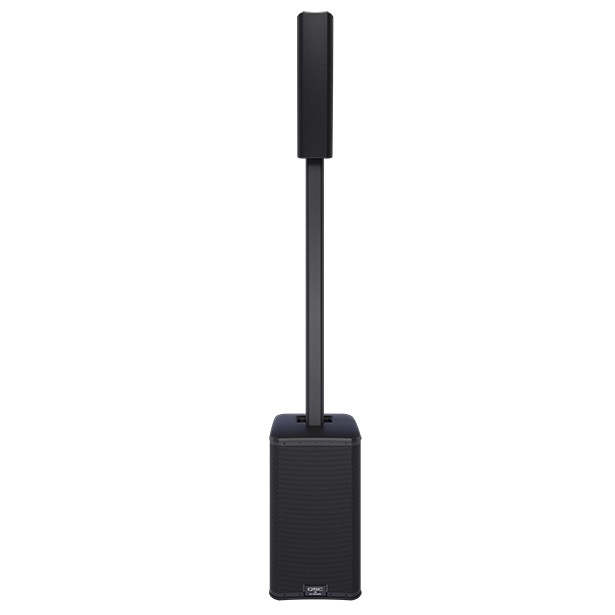

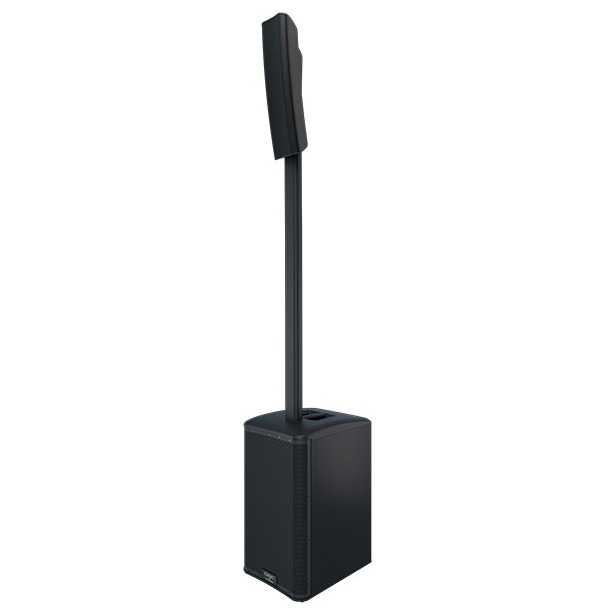

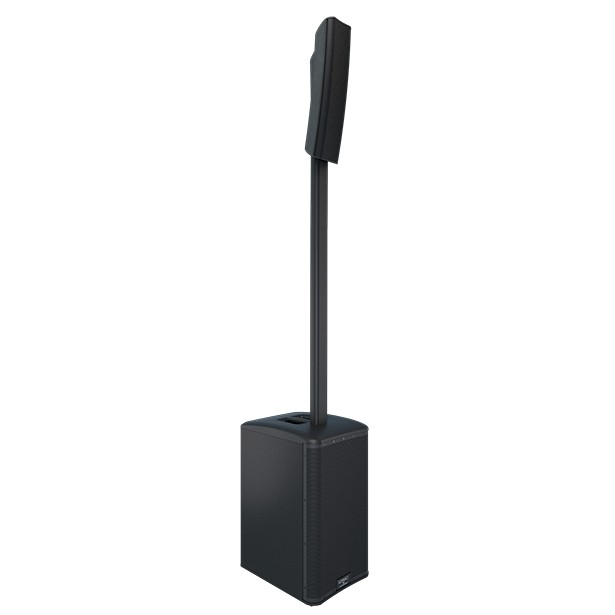

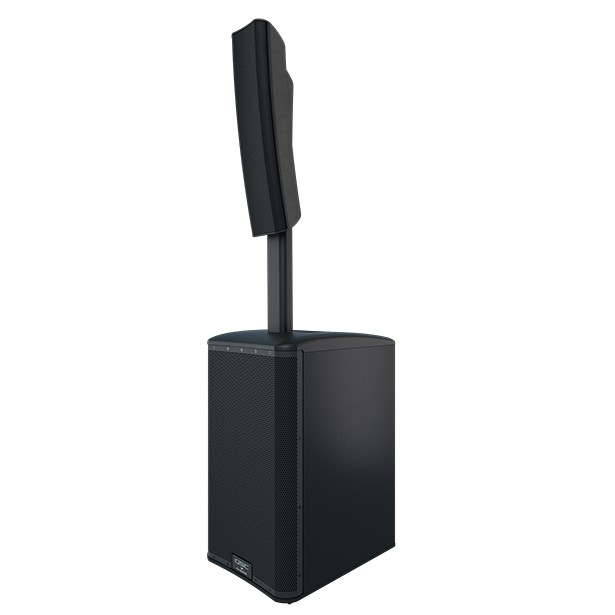

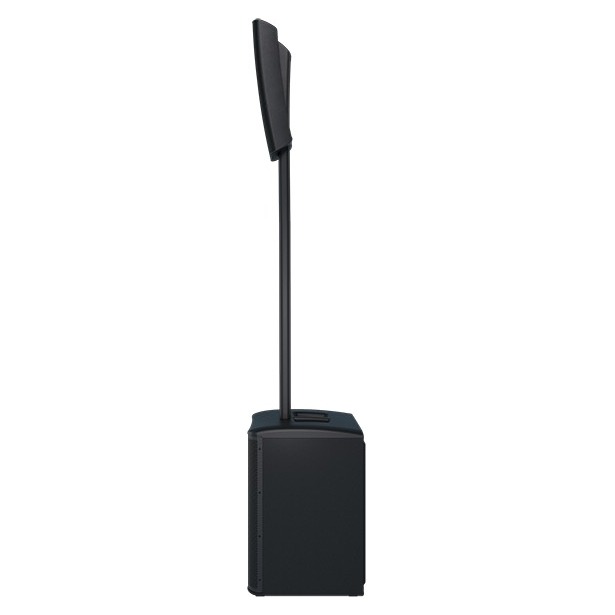

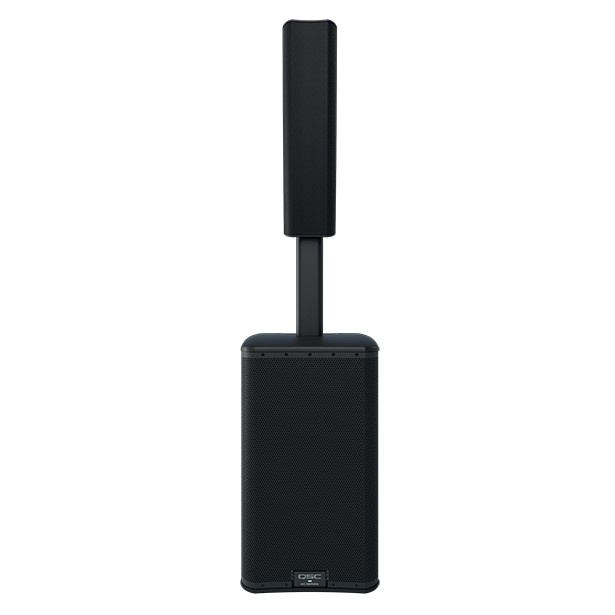

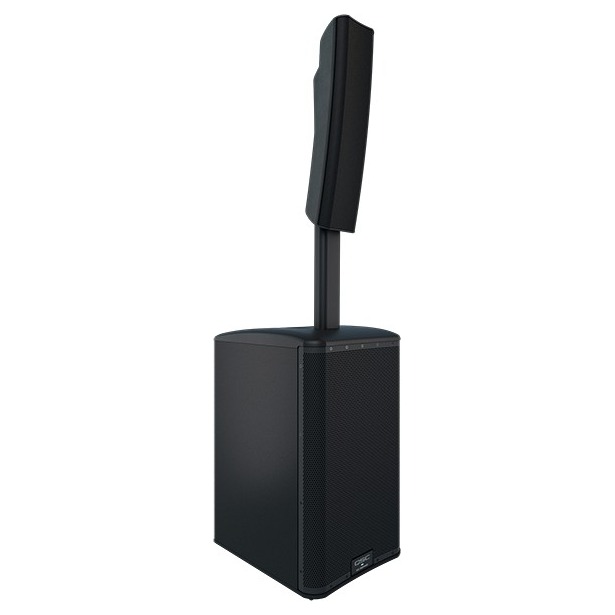

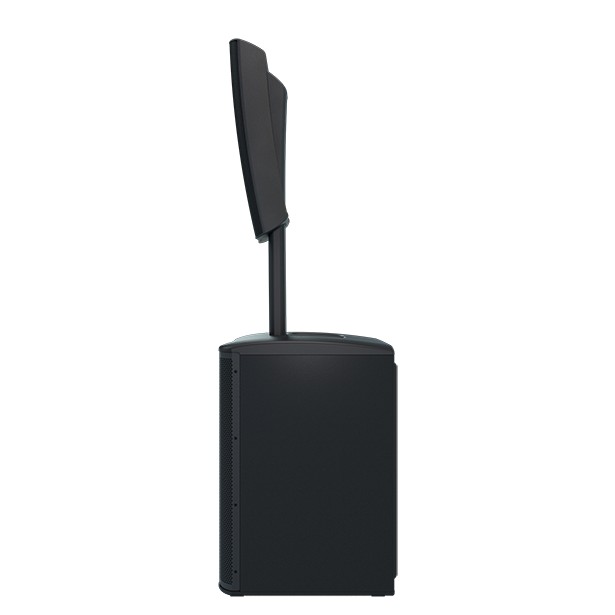

QSC KC12 Active Column Loudspeaker System
The KC12 is a 3-way column system built around a 12 inch subwoofer, two high-excursion 4 inch midrange drivers, and a 1 inch HF compression driver through QSC's LEAF waveguide, with 3000 W of total peak Class D power behind it. It covers 45 Hz to 18.5 kHz (-6 dB) and reaches 132 dB max SPL from a footprint closer to a column speaker than a conventional PA cabinet, with 145 degrees of horizontal dispersion for even coverage across a wide room.
Two combo XLR inputs carry independent, assignable presets for mic, line, Hi-Z, or 48 V phantom sources, a 3.5 mm input takes a media player directly, and Bluetooth streams audio from a phone with True Wireless Stereo support. It deploys with or without its column pole for floor, stage, or riser placement, and ships in black or white to match the room.
| Configuration | 3-way active column loudspeaker system |
|---|---|
| Drivers | 12 in subwoofer, 2x 4 in midrange, 1 in HF compression driver |
| Amplifier | Class D, 3000 W total peak |
| Frequency Response (-6 dB) | 45 Hz - 18,500 Hz |
| Maximum SPL | 132 dB |
| Coverage | 145 degrees horizontal, 35 degrees vertical |
| Inputs | 2x combo XLR (Mic/Line/Hi-Z, Mic/Line/+48V), 3.5 mm, Bluetooth |
| Finish | Black or white |
