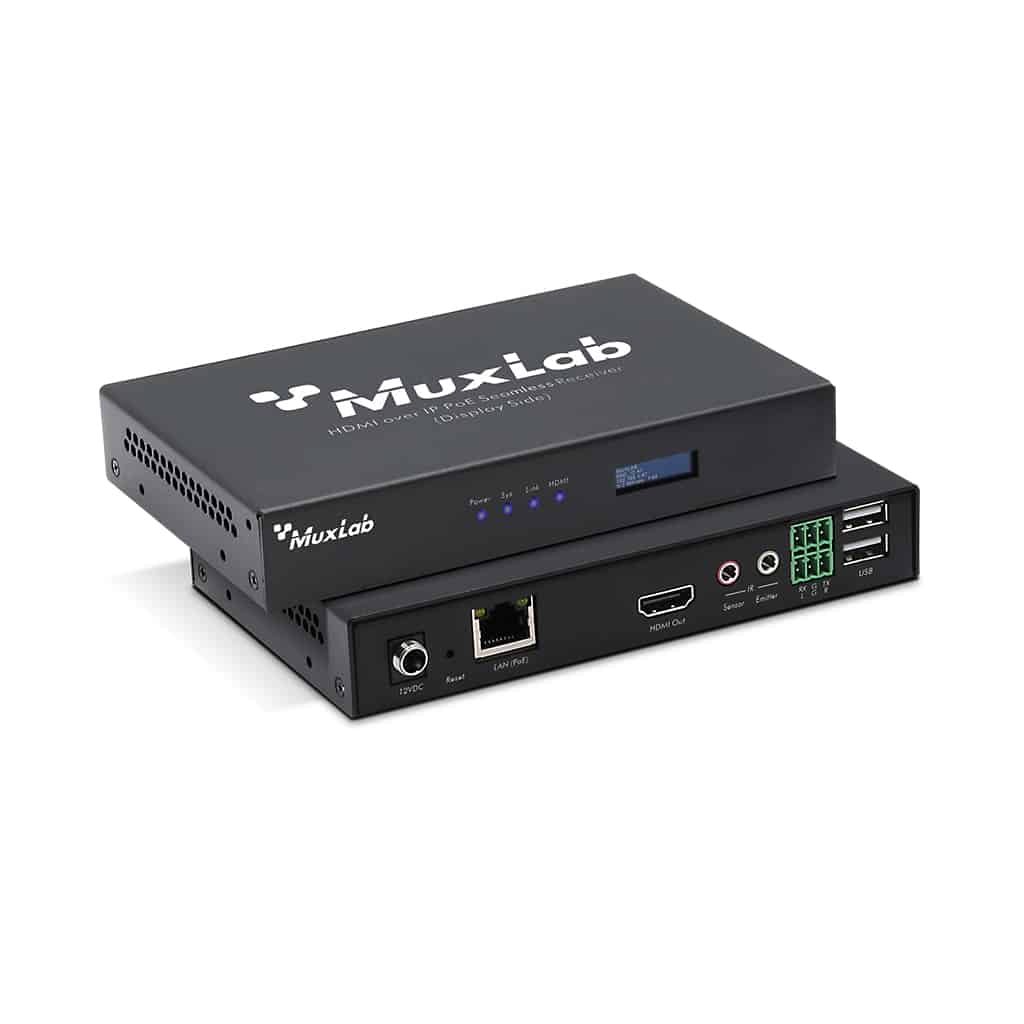

MuxLab 500864 HDMI over IP PoE Seamless Receiver, 1080P

The 500864 pair extends HDMI up to 330ft (100m) over Cat5e/6 at up to 1080p at 60Hz, using H.264/H.265 encoding suitable for LAN and internet transport. Latency is around 80ms and switching is seamless.

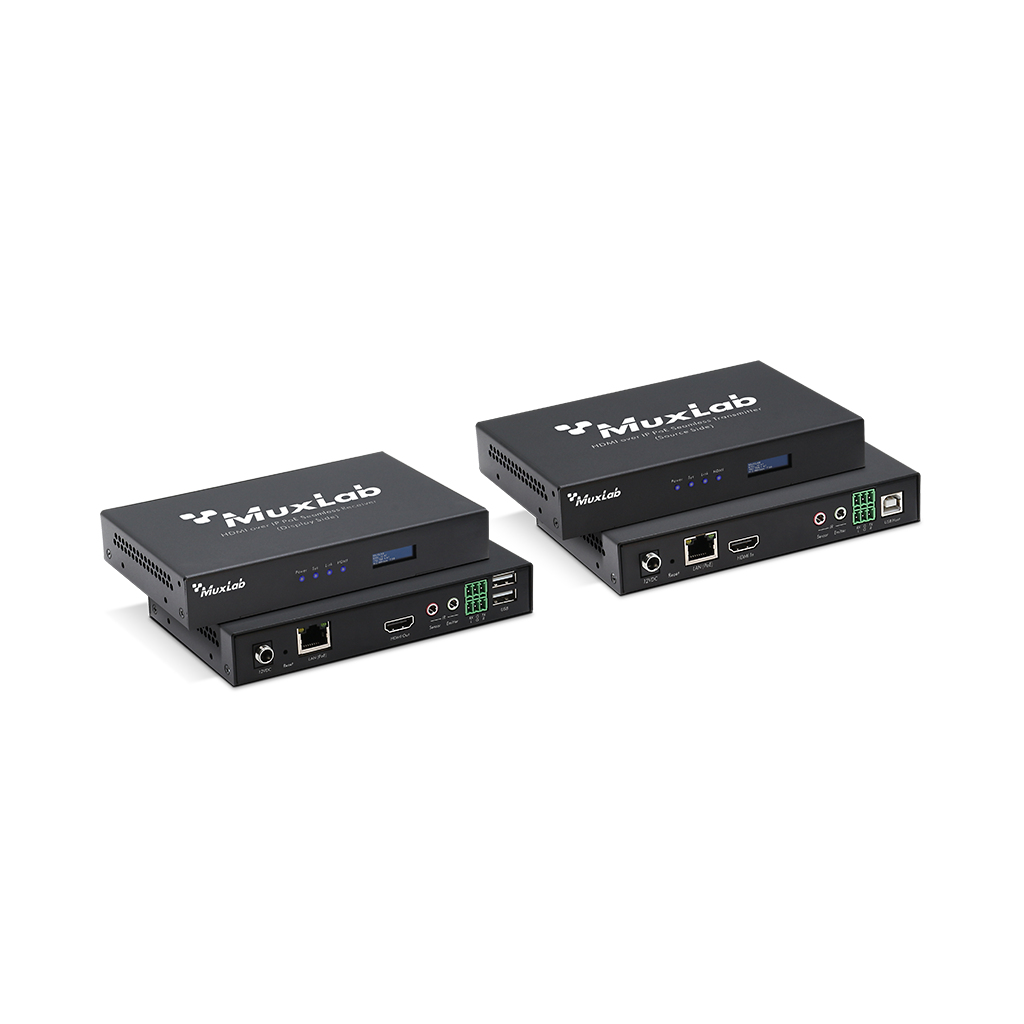

The endpoints build video walls and multiview layouts with up to four windows per display, in point-to-point, point-to-multipoint, and multipoint-to-multipoint arrangements. Transmitter and receiver are ordered separately so a system scales by adding endpoints.

Signal	Protocol/Standard Devices HDMI 1.4 HDMI 1.4 and HDCP 1.4 Technical
Video Resolution	Up to 1080P/60
Audio	1 x phoenix connector output Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI. 80 ~ 120msLatency Indicators Showing the Model, ID, IP, status
Power Consumption	<10W
Power	Power indicator
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 85 deg C
Network	Bandwidth Up to 12Mbps Front Panel
Sys	System indicator
