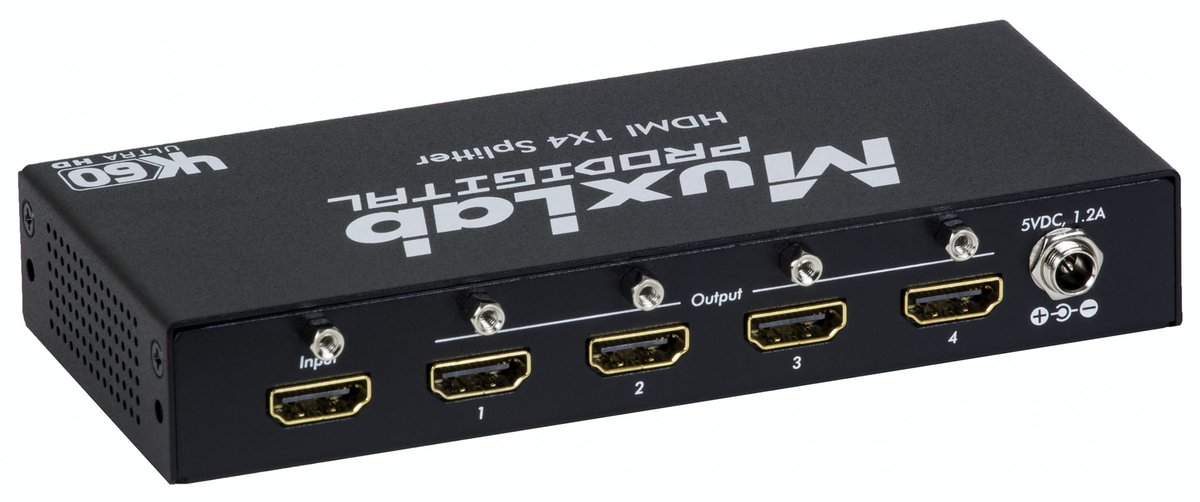

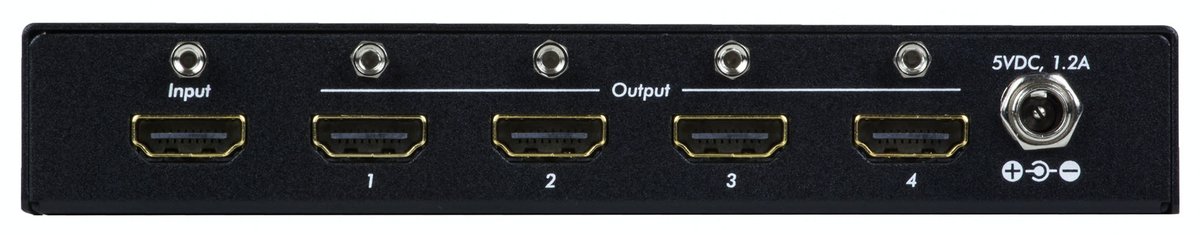

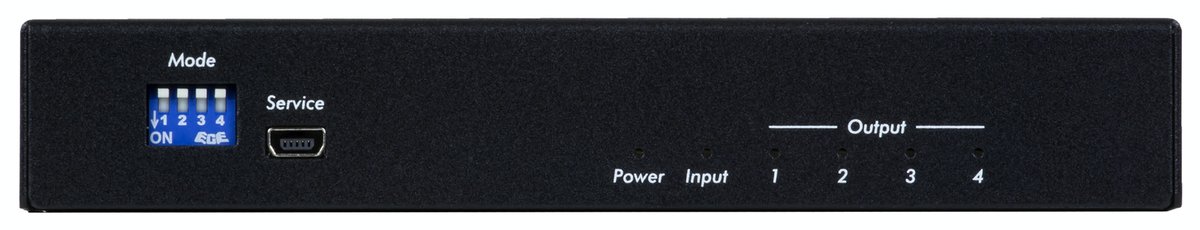

MuxLab 500426 HDMI 1x4 Splitter, 4K60

The 500426 feeds four displays from one HDMI 2.0 source at up to 4K at 60Hz 4:4:4, with HDR and Deep Color support. It is HDCP 1.4 and 2.2 compliant and carries LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.

Every output can independently down-scale 4K to 1080p, which is the practical difference between this and a plain splitter: a mixed set of displays each gets a resolution it can actually take. EDID management and LED diagnostics are included.

StandardHDMI 2.0a
Signal FormatHDMI 2.0a protocol
Resolution480i to 1080p @ 50/60 FPS 1080p @ 24/50/60 FPS 3840 X 2160 @ 24/25/30/60 FPS
Video Bandwidth18 Gbps
FrequencyRange 25 to 600 MHz
HDCPRevision 1.4 & 2.2 compliant
Color8, 10 & 12 bit
AudioLPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
