MuxLab 500115 LongReach CCTV IP PoE Extender Kit, 600m

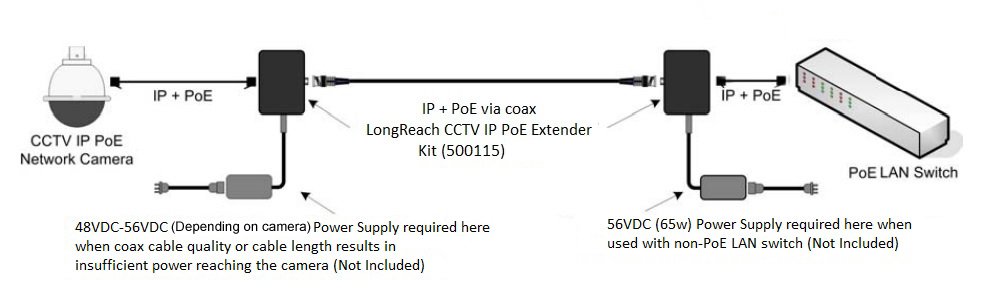

The 500115 kit extends an IP camera link over one 75-ohm coax cable, reaching 1969ft (600m) at 100Mbps with PoE, or 3281ft (1000m) without PoE. It supports cameras drawing up to 30 Watts, which covers PTZ heads and units with heaters.

The LAN side runs up to 330ft (100m) over Cat5e/6. An optional 56VDC 65W power supply can be added where the switch does not provide PoE or where the run needs the extra headroom. Actual distance depends on coax grade and whether PoE is in use. LED indicators show IP traffic.

Standard	PoE CCTV IP
Maximum Distance	RG6: Up to 1969ft (600m) @ 100Mbps (with PoE) Up to 3281ft (1000m) with IP only (without PoE)
Connectors	One (1) BNC 75 Ohms. One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
Cable	UTP/STP: One (1) Cat 5e/6 or better twisted pair cables required
Power Consumption	Network Side: 3.2 Watt Camera Side: 3.0 Watt
PoE	Power Class 3
Dimensions	3.66/3.11" x 1.65" x 0.87" (93/79 x 42 x 22 mm)
Weight	0.78 lb (0.354 kg)
