MuxLab 500086 Digital Audio Extender Kit, 100m

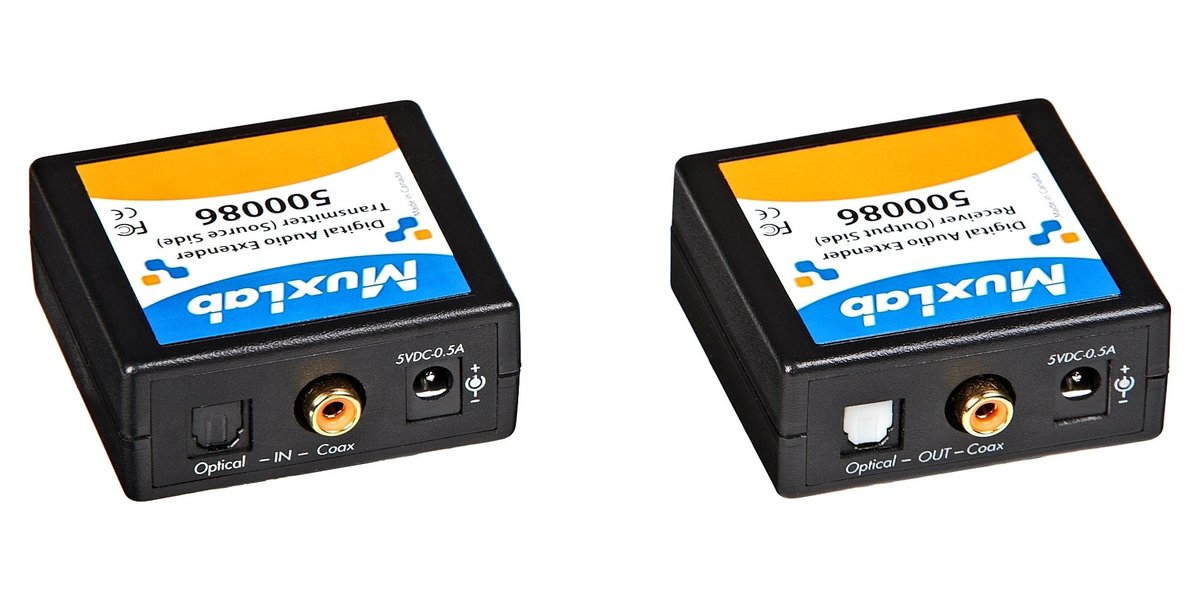

The 500086 kit moves one digital audio source over a Cat5e/6 run and converts standards along the way. Either a coaxial S/PDIF or an optical TOSlink source connects to the transmitter, and the receiver presents both output types at once so the far end is not tied to one connector.

It handles 24-bit S/PDIF compressed and uncompressed bit streams at sample rates up to 96kHz. The transmitter takes one digital coax RCA and one optical input and hands off to an RJ45, so the long run uses structured cable instead of a fragile optical drop.

Standard	Digital Audio Standard Supported LPCM, Dolby Digital 5.1, DTS, and Dolby True HD
Maximum distance	between unit 500 ft. (150m)
Connectors	RCA, TOSLINK, POWER, RJ45 on each unit
Input	/ Output signal S/PDIF coax cable or TOSLINK optic cable, input selectable. Sampling rate Up to 96kHz/24bits
Power	requirement 1W max, 5V DC S/PDIF spec Coax 75 ohm with RCA connector, level: 500mVp-p into 75 ohm TOSLINK spec Plastic optic cable with EIAJ/JEITA RC-5720C connector
Enclosure	ABS UL94HB fire retardant plastic
Temperature	Operating: -40 deg to 85 deg C (-40 deg to 185 deg F)
Humidity	Maximum 95% (non-condensing)
