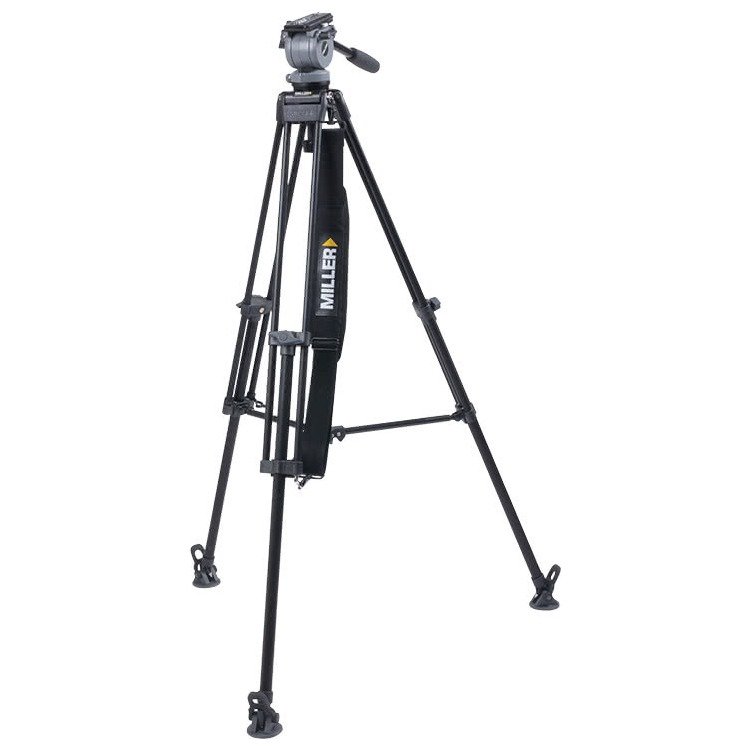

Miller 828
DS10 System

SPECIFICATIONS:
Payload Range 2.5-5.0kg (5.5-11.0lbs)
Weight 5.0kg (11.1lbs )
Height Range 757-1467mm (29.8-57.6")
Transport Length 967mm (38.1")
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Fixed
Pan Tilt Locks Positive lock calliper brake system
Tilt Range -40° to +65°C (-40° to +149°F)
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4")
Mounting Base 75mm (2.9") ball levelling
Height Above Bowl 137mm (5.4")
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type Toggle
Leg Material Alloy

Components

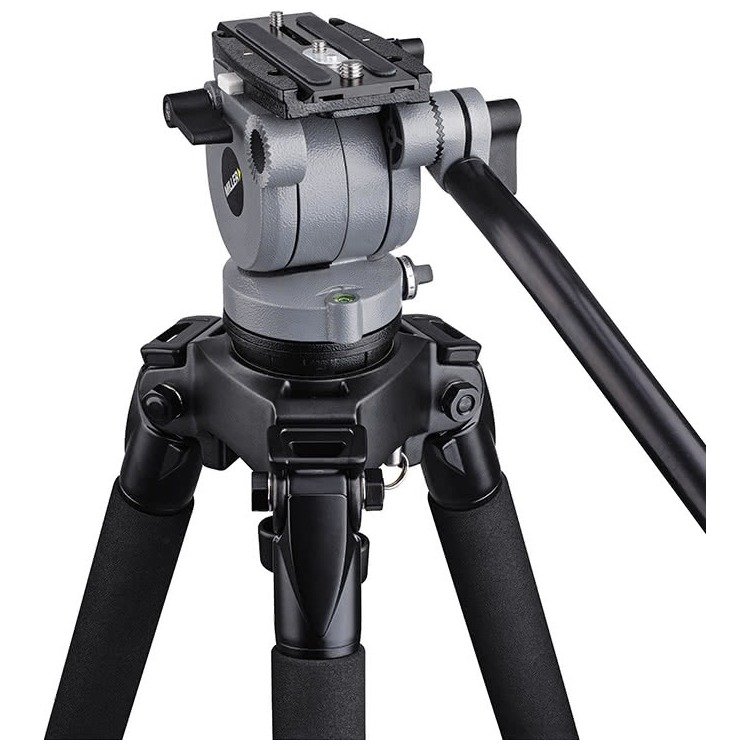

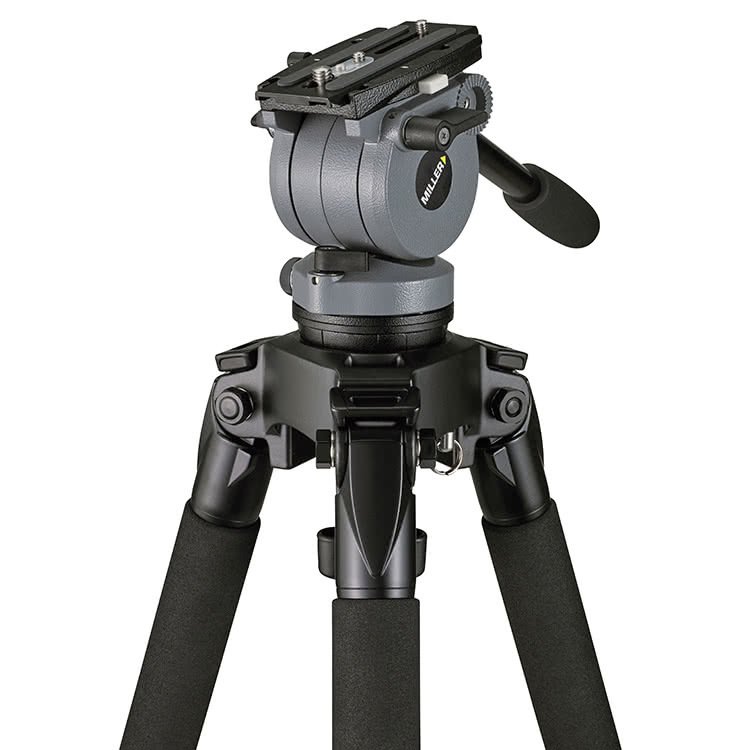

182 DS10 fluid head
440 Toggle 75 1-stage tripod (alloy)
835 DS tripod spreader
550 Rubber feet (set of 3)
681 Pan handle - fixed with clamp

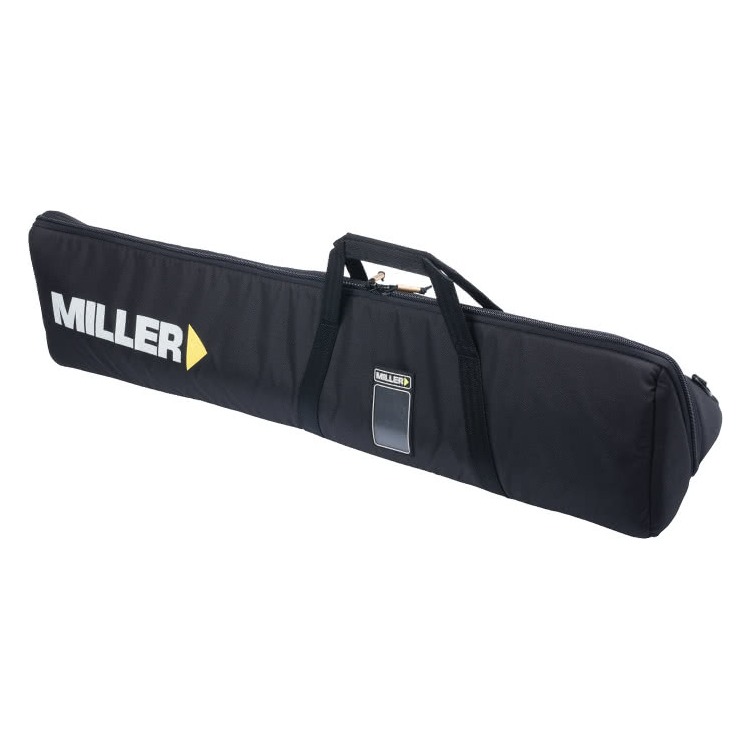

3512 Softcase 1-stage
554 Shoulder strap (padded)
