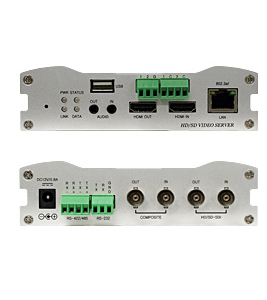

Marshall VS-102-HDSDI
2.0 MP High Resolution Encoder/Decoder

The Marshall VS-102-HDSDI is a High Definition Video Server that allows real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signal along with bi-directional AAC encoded high definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDSDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network, while providing optimal video transmission quality even in networks with limited bandwidth.

The VS-102-HDSDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDSDI located in a Green Room or other location. The other unit can act as a decoder which receives the compressed data through the LAN and restores the data to its' original high definition state. Additionally, other computers or VS-102-HDSDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or box office at the same time. When properly configured, the VS-102-HDSDI may be simultaneously monitored through the internet.

• High Quality AV Encoder / Decoder (User Selectable)
• Full HD resolution 1080p Encoding / Decoding
• Up to 30fps @ 1920 x 1080 streaming
• H.264 & H.264 MJPEG Dual Streaming
• Two-Way Audio Communication
• Mono Codec G.711 for Security applications
• Stereo Codec AAC for Broadcast applications
• HD-SDI Video Input / Output
• HDMI Video Input / Output
• Composite Video Input / Output
• Audio Input / Output
• Instant Recording to an optional USB drive (USB 2.0)
• Supports DDNS (Dynamic Domain Name Server)
• Built-in PoE (Power Over Ethernet: 802af)
• RS-232 control built-in
• RS-422/485 control built-in
• 2 Sensor inputs
• 2 Alarm outputs
• Watchdog for system recovery
• Integrated Video Motion Detection
• Transmission of Video Data through FTP server
• Wide Range of Video Bit Rate Control (32kbps ~ 10Mbps)
• PSIA and ONVIF compliant
