Marshall CV605 5X HD60 IP PTZ Cameras

Marshall PTZ Camera



Marshall CV605-WH
PTZ Camera

WHITE COLOR
5x optical zoom
3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
1920x1080p, 1920x1080i, and 1280x720p
Please call 201-791-1400 or
Email us for pricing

Marshall CV605-BK
PTZ Camera

BLACK COLOR
5x optical zoom
3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
1920x1080p, 1920x1080i, and 1280x720p
Please call 201-791-1400 or
Email us for pricing

Marshall CV605-WH
PTZ Camera

WHITE COLOR
5x optical zoom
3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
1920x1080p, 1920x1080i, and 1280x720p
Please call 201-791-1400 or
Email us for pricing

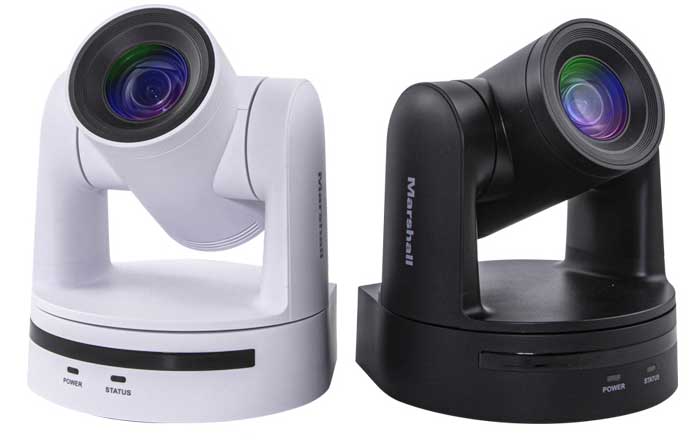

The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

The CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

Specs
  • 2 Megapixel (HD) sensor
  • 5X Optical Zoom (3~15mm) - starting at 85° AOV
  • HD Resolution: 1920x1080p, 1920x1080i & 1280x720p
  • Resolution/Framerate choices:
    • 1920x1080p at 60/59.94/50/30/29.97/25fps
    • 1920x1080i at 60/59.94/50fps
    • 1280x720p at 60/59.94/50/30/29.97/25fps
  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
  • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
  • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
  • Control Options: VMS, GUI, VS-PTC-200 (RS232/RS422) and VS-PTC-IP (IP/RS232)
  • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

CV605 User Manual


PTZ Controllers:

Model Image Description Pricing
VS-PTC-IP Marshall VS-PTC-IP PTZ Controller
Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing
    Model Description Pricing
    Marshall VS-PTC-IP PTZ Controller
    Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing
