Marshall Electronics V-1205 Miniature B/W Board Camera
The V-1205 is a miniature black-and-white board camera that Marshall positions as the first low-cost board camera to match or beat human low-light vision. It ships with a 3.6mm f/2.0 lens and an electronic auto-iris integrated on the same circuit board, focusable down to half an inch for close-up work.
Its M12 miniature lens mount takes Marshall's M12 4300, 4400 and 4700 series lenses for a swap to a different focal length or IR-corrected optic without changing the camera body.
| Resolution | 400 TV lines |
|---|---|
| Picture | 542(H) x 492(V) |
| Signal to Noise | >48 dB |
| Minimum Illumination | 0.05 lux |
| Iris Control | Electronic |
| Lens | 3.6mm f/2.0, M12 mount |
| Power | 12V DC, 100mA |

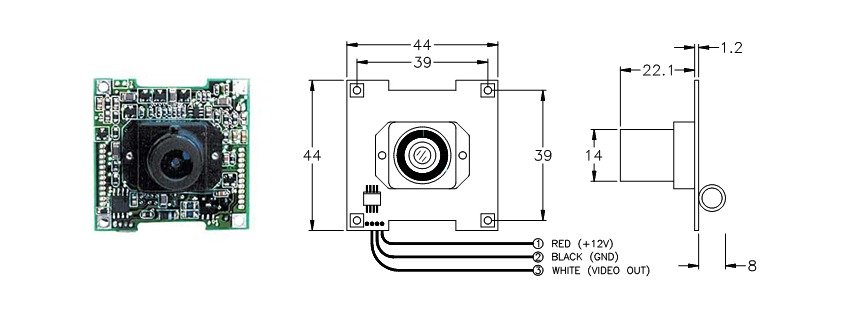

| Size | 1.73 x 1.75 x 1.22 inch |
