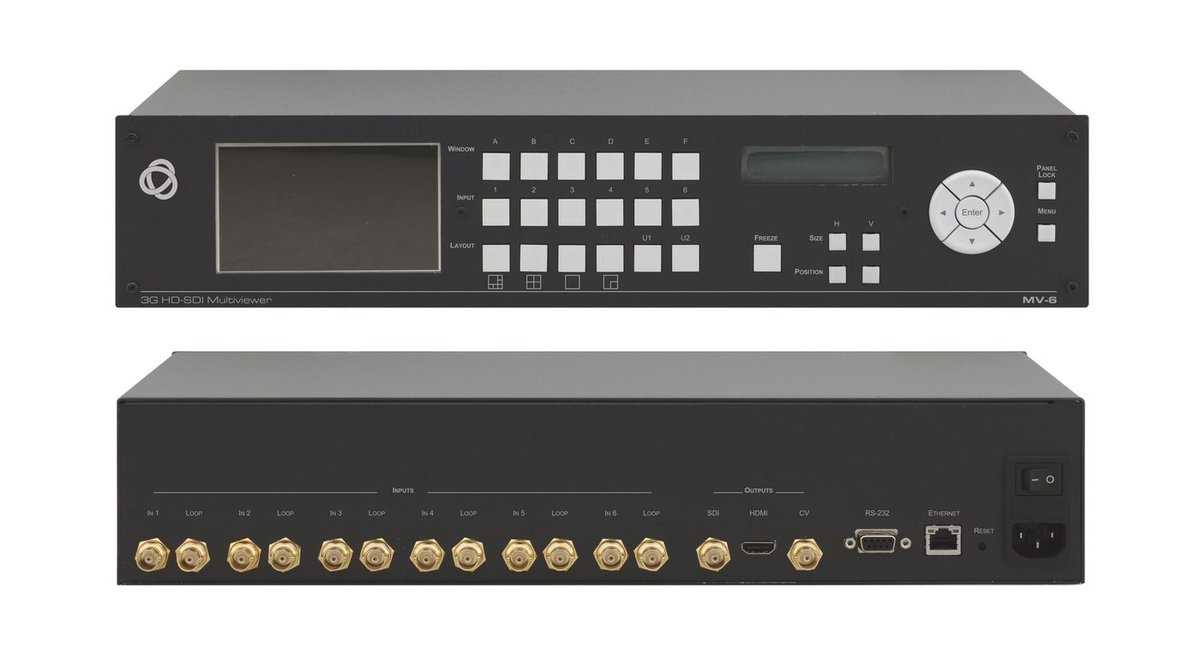

Kramer MV-6 3G HD-SDI Multiviewer

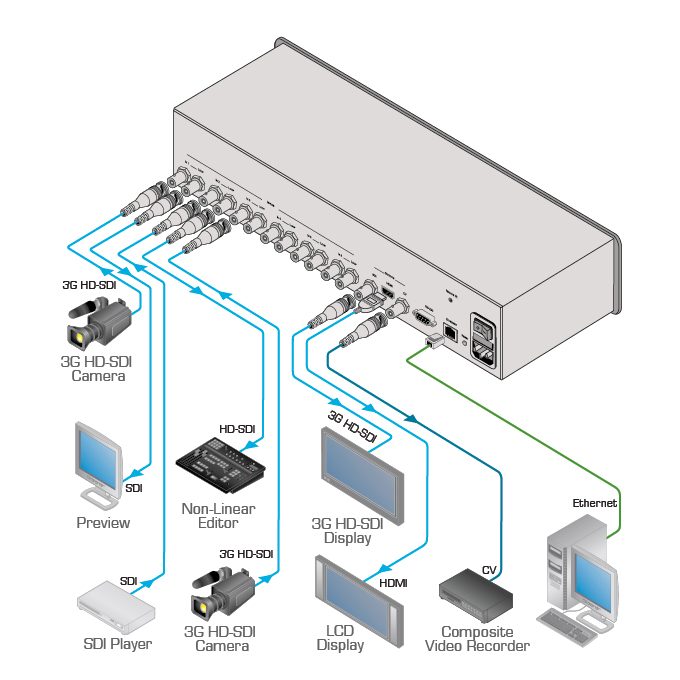

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications.

Key features: Max. Data Rate - 3Gbps; HDTV Compatible; Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility); Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances; Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).

INPUTS	6 SD/HD/3G HD-SDI with loop on BNC connectors
OUTPUTS	1 HDMI, 1 CV on a BNC connector (for 720p @50Hz and 1920p @50Hz the output is PAL,; For 720p @59.94/60Hz and 1920p @59.94/60Hz the output is NTSC), 1 HD/3G HD-SDI on a BNC connector
MAX. INPUT LEVEL	800mVpp/75Ω
MAX. OUTPUT LEVEL	800mVpp/75Ω
MAX. DATA RATE	Up to 2.97Gbps
CONTROLS	Front-panel, RS-232, Ethernet
FRONT PANEL DISPLAY	4.3" TFT color LCD panel
POWER CONSUMPTION	Universal, 100-240V AC, 50/60Hz, 35VA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	-40° to +70°C (-40° to 158°F)
