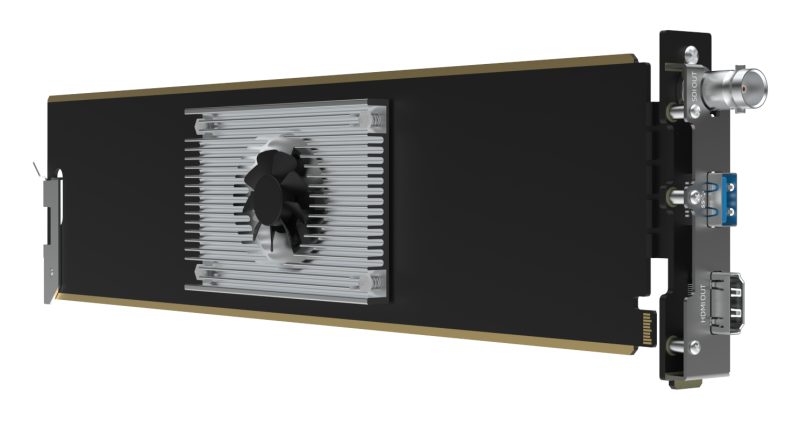

Kiloview FD-360 4K Multi-Function Decoding Card

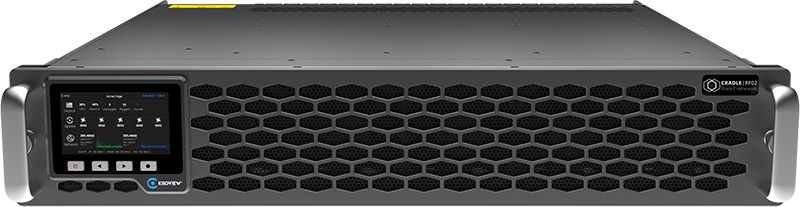

The FD-360 is the 4K decoding card in Kiloview's Cradle series. It takes IP video off the network and returns it to baseband, and it is built for the RF02 chassis rather than for standalone use.

In a facility that is landing many streams at once, a decode card in a shared frame costs less rack space and less power than an equivalent stack of individual decoders, and it is managed from the same interface as the encode side.

Video DecodingH.265(HEVC), H.264(AVC), SpeedHQ(NDI)
Protocol SupportNDI High Bandwidth/NDI HX/HX3/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP
Multi-View LayoutsCustom 1/2/3/4/5/6/7/8/9/16-screen layouts
Audio DecodingAAC / MPEG-4 / MPEG-2 / G.711 / Opus / LPCM / NDI
Audio OutputHDMI/SDI embedding, or expanding analog audio interfaces via USB 3.0 Type-A
Network Port1* Adaptive PCI-E 10/100/1000 Mbps
OSD/Graphics OverlayCustom background images + text/graphics overlay
ManagementWeb-based control or Kilolink Server centralized management

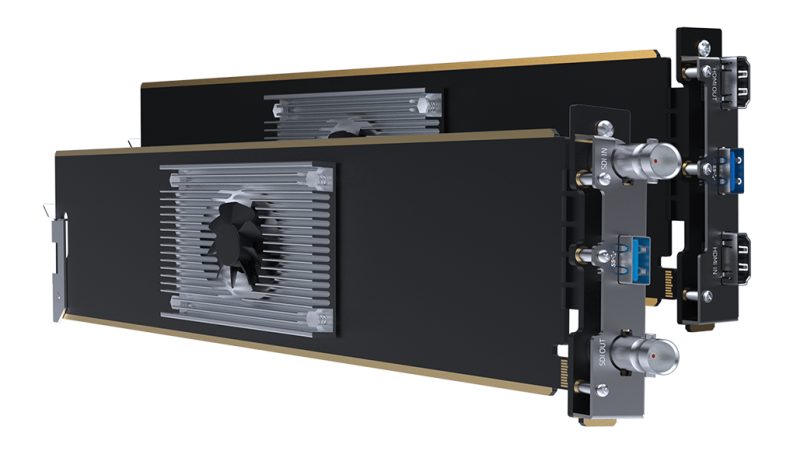

No More "Coming Soon" - FN7, FN8 & FD-360 Are Now Available
