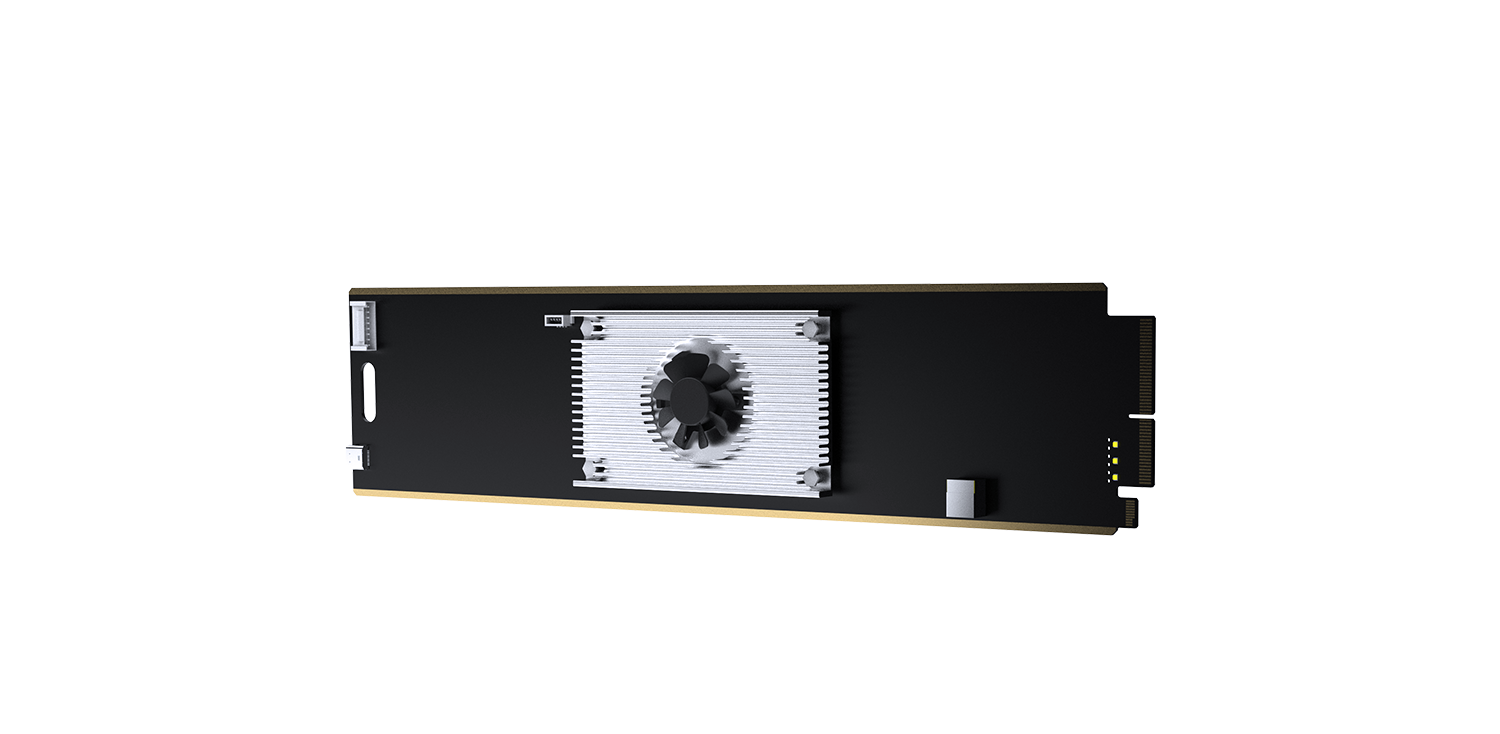

Kiloview FMG-400 Media Gateway Card

The FMG-400 is a media gateway card that slots into the RF02 chassis to handle transcoding, protocol conversion, and multi-bitrate distribution. It decodes SpeedHQ, H.264, and H.265 sources and can push up to three channels of 1080p60 or one channel of 4Kp30, converting between NDI, NDI HX, SRT, RTMP, RTSP, RTP, UDP, and HLS as the RF02 system needs.

An 8-core ARM64 processor at 1.8GHz and 12GB of RAM run the card's own processing independent of the RF02's other slots, and it draws its power (6W max) directly from the chassis rather than needing a separate supply. Audio passes through as PCM, AAC, or G.711 at up to 24-bit/192kHz.
