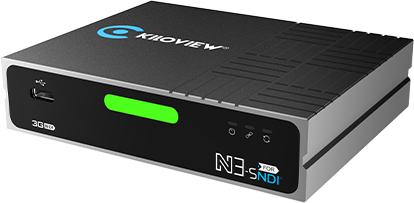

Kiloview N3-s 3G-SDI Bidirectional NDI Converter

The N3-s is the straightforward one: 3G-SDI in, full-bandwidth NDI out, or the reverse, with no HX compression in the path. Where a facility has standardised on NDI High Bandwidth because the pictures are going into a switcher, this is the converter that belongs at each camera and each monitor.

It encodes in SpeedHQ at SHQ0 or SHQ2, handles 1080p60 and 720p, and its single 3G-SDI port loops the input when encoding or outputs the decoded signal when decoding. Audio comes in and out on 3.5mm line.

Video Port	1 x 3G-SDI, input 1 x 3G-SDI, output for decoding/loop-out for encoding
Video Encoding and Decoding	SpeedHQ (NDI): SHQ0, SHQ2
Streaming Protocols	NDI HB
Color Space	* Encoding: YCbCr 4:2:0, 4:2:2 * Decoding: YCbCr 4:2:0, 4:2:2
Color Depth	8-bit
Audio Port	1 x 3.5mm Line in/Line out
Audio Encoding and Decoding	NDI Audio, AAC-LC, more audio formats and channels available through custom development
Audio Channels	Encoding: 16 channels Decoding: 8 channels
