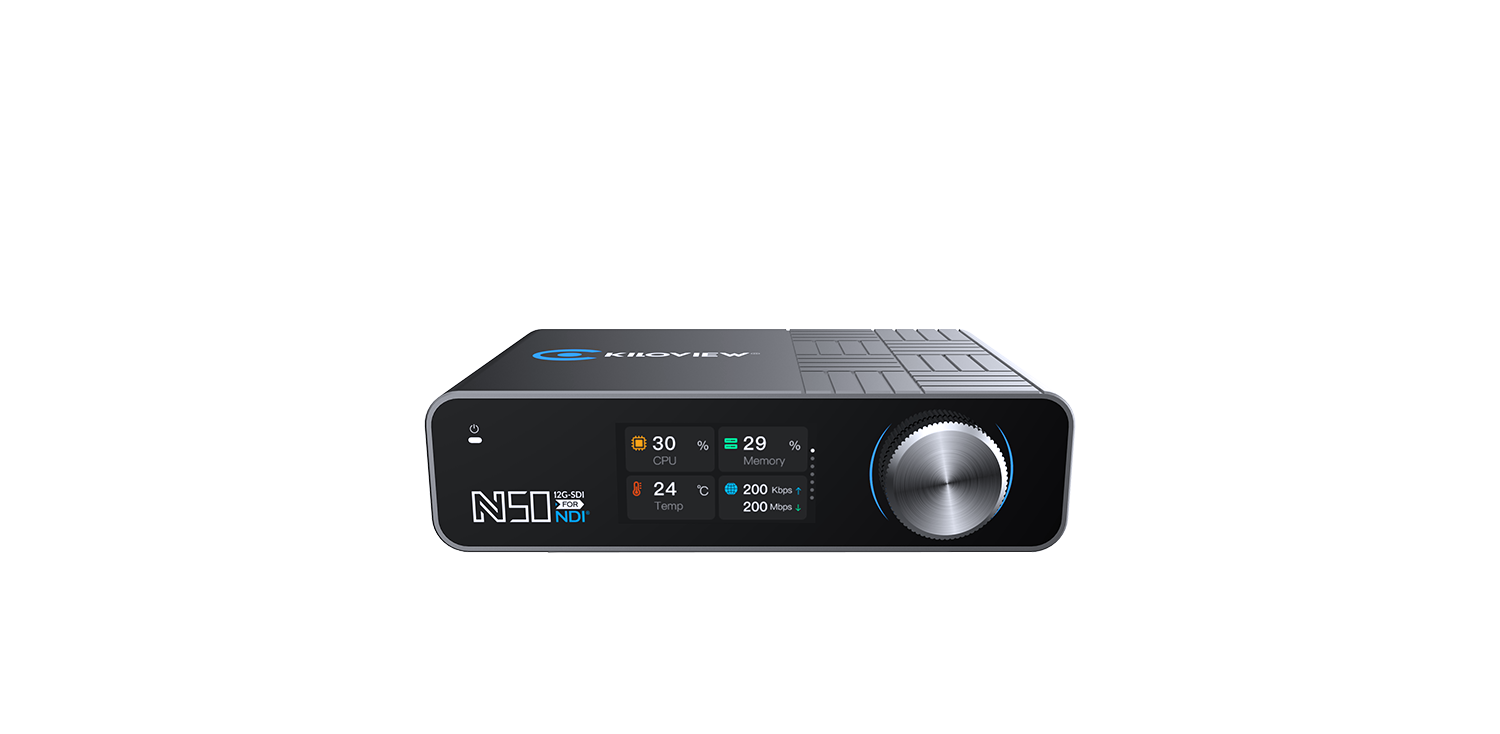

Kiloview N50 12G-SDI Bidirectional NDI Converter

The N50 is Kiloview's 12G-SDI NDI converter, and the word that matters is bidirectional: the same unit encodes SDI to NDI or decodes NDI back to SDI, chosen in the web interface rather than by buying a second box. On a 12G-SDI plant that means 4K on a single BNC in either direction.

It speaks NDI High Bandwidth as well as NDI HX2 and HX3, and drops out to SRT, RTSP, RTMP, HLS, UDP, RTP or WHIP when the destination is a CDN rather than a switcher, encoding in SpeedHQ, H.264 or H.265. A 3.5mm line input and output handle audio alongside whatever is embedded on the SDI.

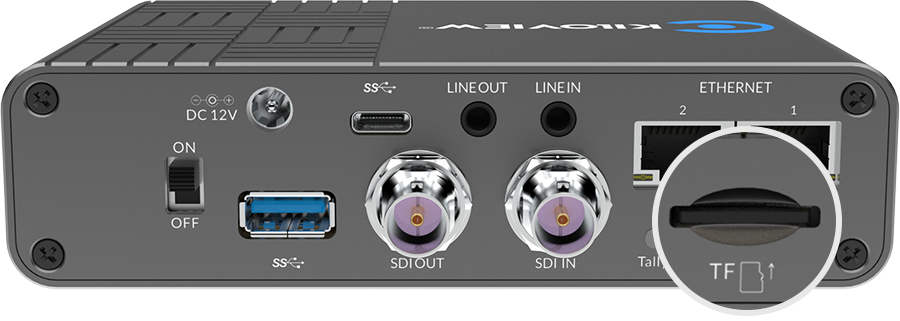

Video Port	1 x 12G-SDI, input 1 x 12G-SDI, output for decoding/loop-out for encoding
Video Encoding and Decoding	SpeedHQ(NDI), H.264(AVC), H.265(HEVC)
Streaming Protocols	* NDI HB / NDI HX2 / NDI HX3 * SRT / RTSP / RTMP / HLS / UDP / RTP / WHIP
Interlaced Video Support	1080i60 interlaced input and 1080i60 interlaced output encoding (NDI High Bandwidth & H.265)
Color Depth	NDI HB: 8-bit, 10-bit NDI HX: 8-bit, 10-bit NetStream: 8-bit, 10-bit
HDR	Support
Audio Port	1 x 3.5mm Line in 1 x 3.5mm Line out
Audio Encoding and Decoding	NDI Audio, AAC-LC, more audio formats and channels available through custom development
