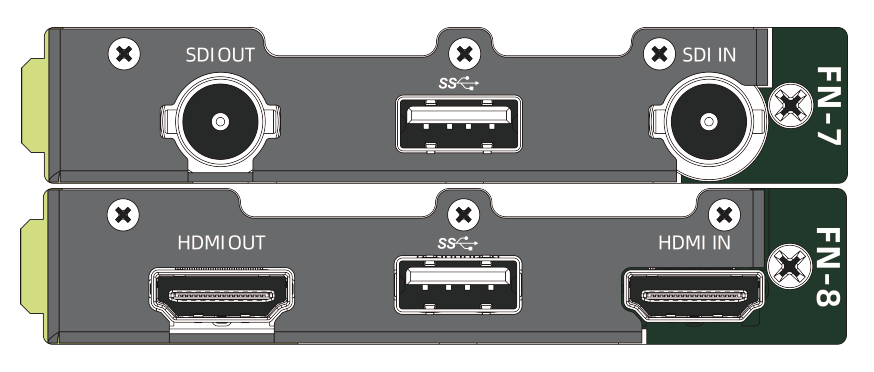

Kiloview FN-7 and FN-8 All-in-One Conversion Cards

The FN-7 and FN-8 are Kiloview's all-in-one conversion cards for the Cradle chassis. Each is bidirectional, converting between baseband video and IP in whichever direction a slot is configured for, so a frame can be rebalanced between contribution and distribution without new hardware.

They are the entry point into the Cradle system for a facility that wants modular conversion without committing to a fixed encoder-to-decoder ratio.

Video Port	23G-SDI 1USB 3.0 Type-A \| 2HDMI 1USB 3.0 Type-A
Video encoding and decoding	H.265(HEVC), H.264(AVC), SpeedHQ(NDI)
Streaming Protocols	NDI High Bandwidth/NDI HX2/NDI HX3/SRT/RTMP/RTSP/HLS/RTP/TS-UDP
Color Space	YCbCr 4:2:0, 4:2:2 YUV 4:4:4 RGB 4:4:4
Color Depth	8bit
Audio encoding and decoding	NDI Audio; AAC-LC; Opus; G.711 a-Law/u-Law; other formats supported via software extension
Audio Channels	Encoding: 2 channels Decoding: 2 channels
USB Web Cam Input	Supported
