JVC FS900 Fiber Systems
For GY-HM890 and GY-HC900 Cameras

The FS-900 is a camera mounted Fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. Built exclusively for JVC by MultiDyne® Video & Fiber-Optic Systems, the system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.

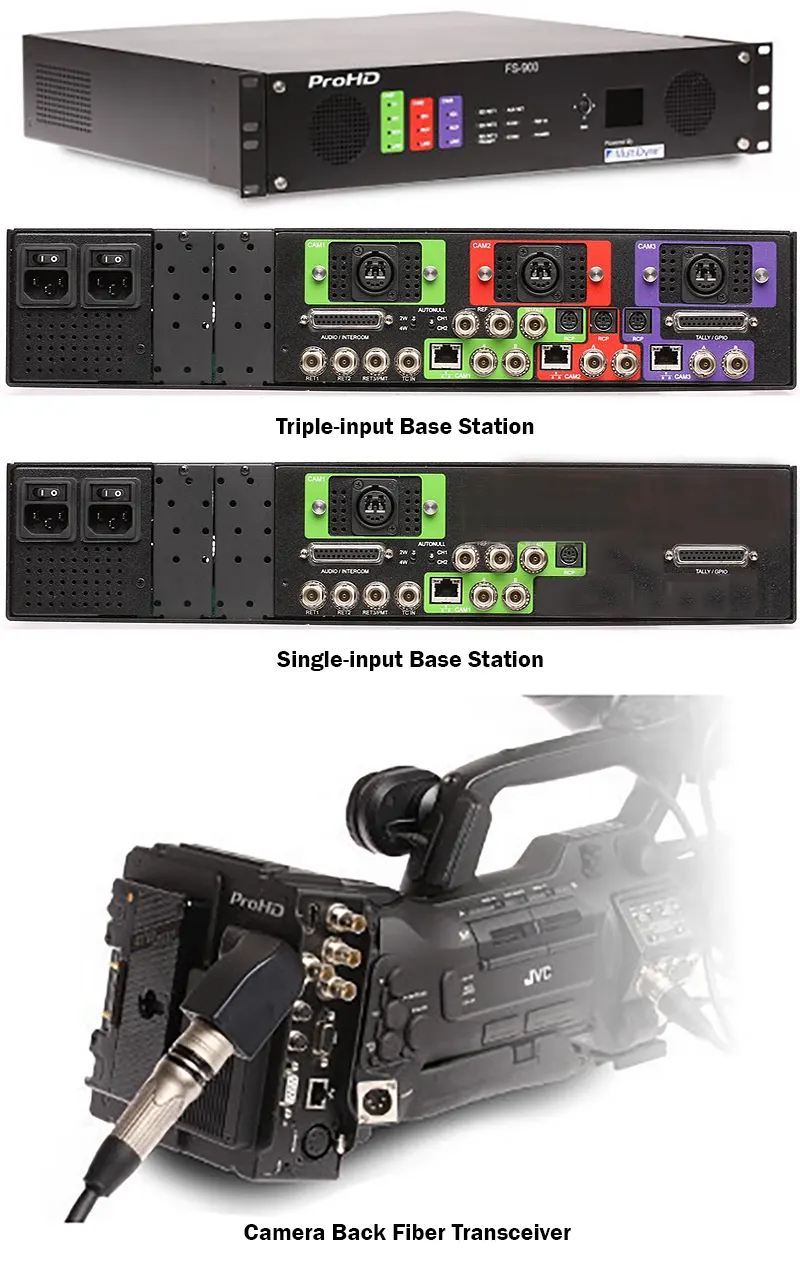

FS-900CAM1N - MULTIDYNE CAMERA BACK FIBER TRANSCEIVER - NEUTRIK OPTICALCON

• The camera module connects directly to the back of the camcorder via 68-pin interface—no external cables required—for full studio functionality.
• It transports multiple bi-directional 3G-SDI signals
• It transports control, audio, sync, and intercom between the camera and the FS-900 Base Station.
• The camera mounted module FS-900CAM1N has a Neutrik Opticalcon connector
• Up to three cameras are supported by the Base Station, and its power supplies provide up to 150 watts for each camera, as well as prompters and talent monitors. Its three-in-one configuration provides a more cost efficient solution than other multi-camera solutions previously offered by JVC and other manufacturers.
• The high quality 1080p video signals are ideal for webcasts, virtual sets, and image magnification (I-MAG)
• The system integrates easily with any studio, mobile truck, or portable flypack, and connects directly with a facility's switcher, router, intercom, and house sync systems.
• Cost-efficient three-camera studio configuration with single base station.
• Supports 1080 50/60p 3G-SDI camera feed and returns.
• Camera adapter design allows to use VF-HP790 or generic SDI monitors as studio VF.
• HDMI / SDI feeds for high-quality HD teleprompters.
• Gigabit Ethernet for Video-over-IP and web-based RCU.
• Dual redundant power supplies.

MULTIDYNE 2RU TRIPLE INPUT and SINGLE INPUT FIBER BASE STATIONS - NEUTRIK OPTICALCON

The FS-900BS1N (Neutrik Opticalcon) base stations for JVC's unique 3-in-1 (or single input) fiber optic system designed for JVC's GY-HM890 and GY-HC900 camcorders. The system supports 3G-SDI 1080p/60 camera feeds and returns, and takes advantage of the camera's built-in streaming engine for video-over-IP functionality.

• Cost-efficient three-camera studio configuration with single base station.
• Supports 1080 50/60p 3G-SDI camera feed and returns.
• HDMI / SDI feeds for high-quality HD teleprompters.
• Gigabit Ethernet for Video-over-IP and web-based RCU.
• Dual redundant power supplies.
