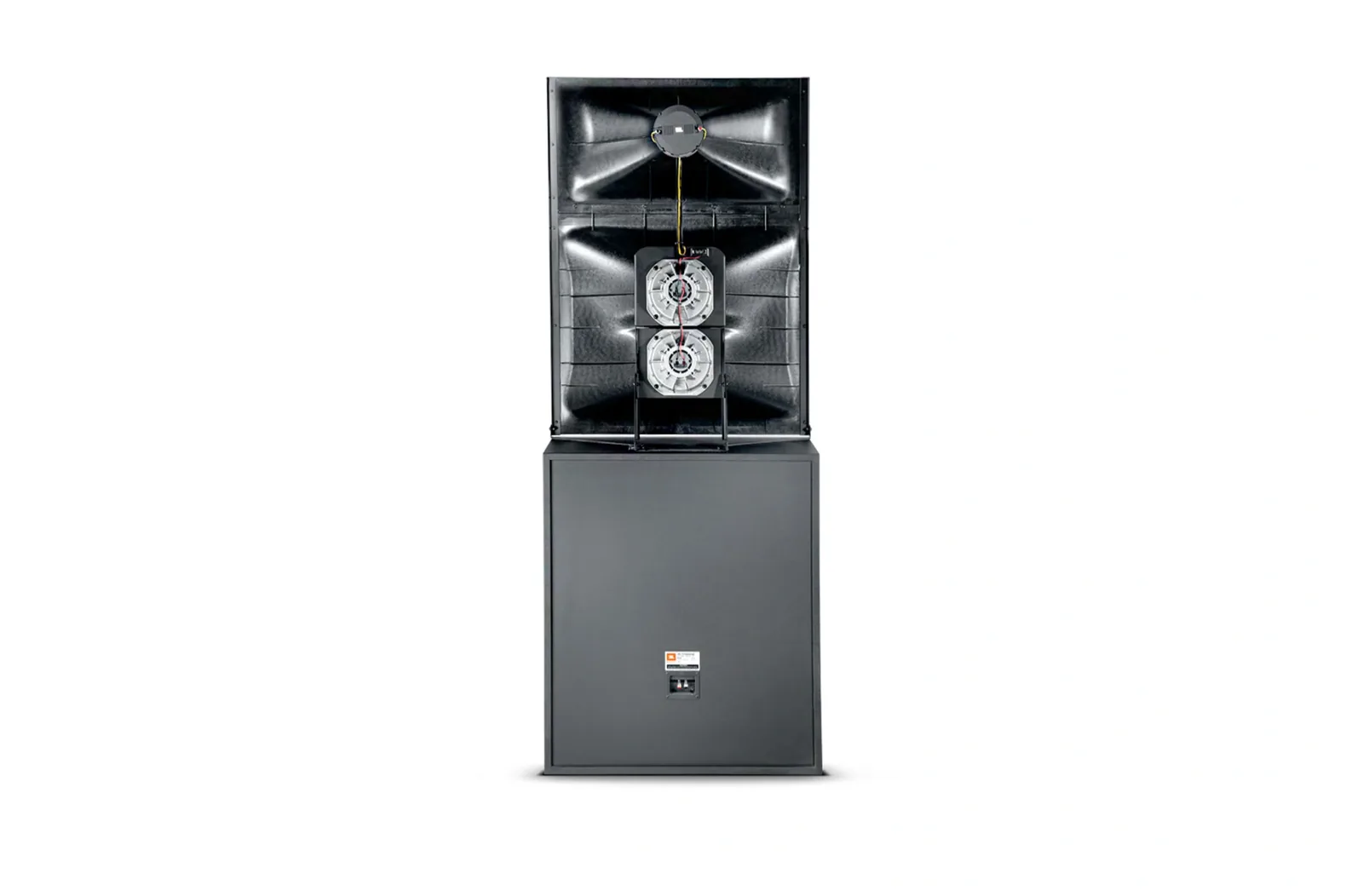

JBL 5732 3-Way High Power ScreenArray Loudspeakers

The 5732 are 3-Way high power ScreenArray loudspeakers. Frequency range is 30 Hz - 20 kHz. Maximum SPL at 1 m is 128 dB @ 1m, 134 dB Peak. Nominal impedance is 4. Sensitivity is 115 dB, 2.83V @ 1m (3.3 ft).

Connections are Push terminal binding posts. It measures 1937 mm x 762 mm x 450 mm(76.3 in x 30.0 in x 17.8 in). Net weight is 190 lbs (86 kg).

Type3-Way High Power ScreenArray Loudspeakers
Frequency Response (+/-3 dB)40 Hz - 19 kHz
Frequency Range (-10dB)30 Hz - 20 kHz
Sensitivity115 dB, 2.83V @ 1m (3.3 ft)
Maximum SPL (1m)128 dB @ 1m, 134 dB Peak
System Input Power RatingLF: 1200 WMF: 700WHF: 150W
Horizontal Coverage Angle (-6dB)90 degrees
Vertical Coverage Angle (-6dB)20 degrees up, 30 degrees down
Directivity Factor (Q)10.0
