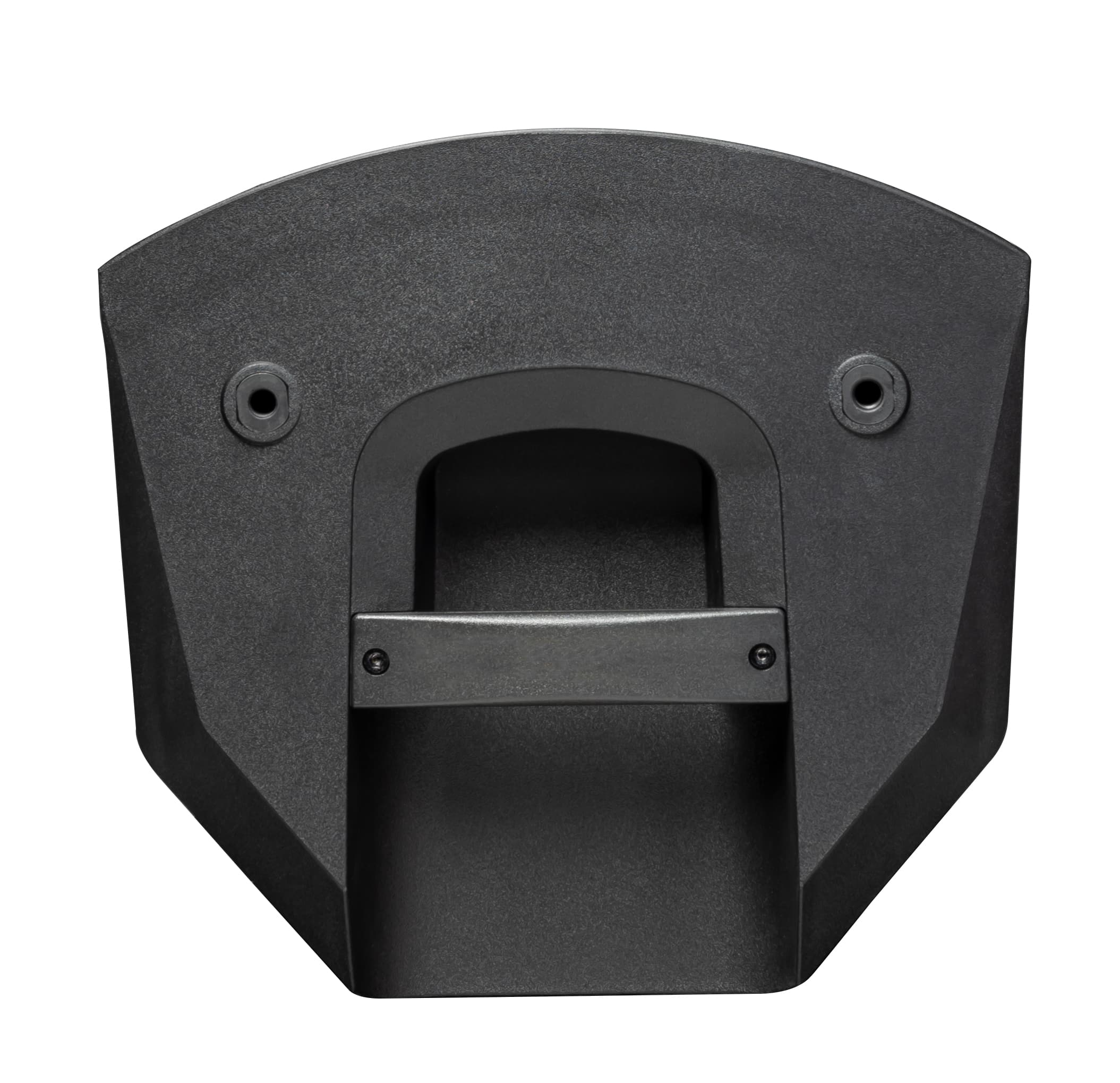

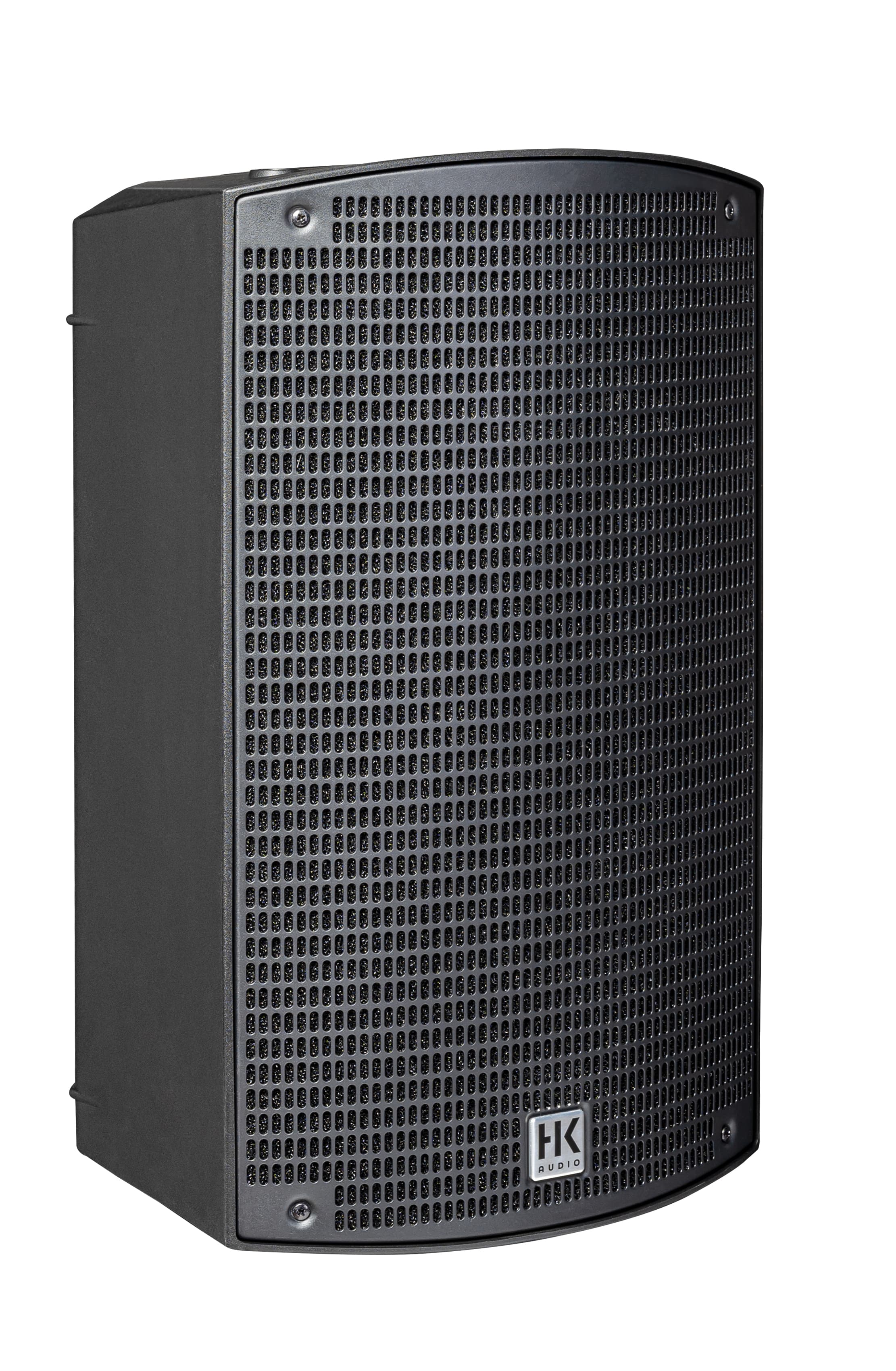

HK Audio SONAR 110 Xi Active 10 inch Loudspeaker

The SONAR 110 Xi is the compact member of the SONAR Xi range: a two-way bass reflex cabinet with a 10-inch cone driver and a 1-inch compression driver on a constant directivity horn, covering 90 by 60 degrees. An 800 W peak Class AB plus D amplifier drives it to 123 dB peak, and the whole box weighs 25.4 pounds, so it goes on a pole and off again without a second person.

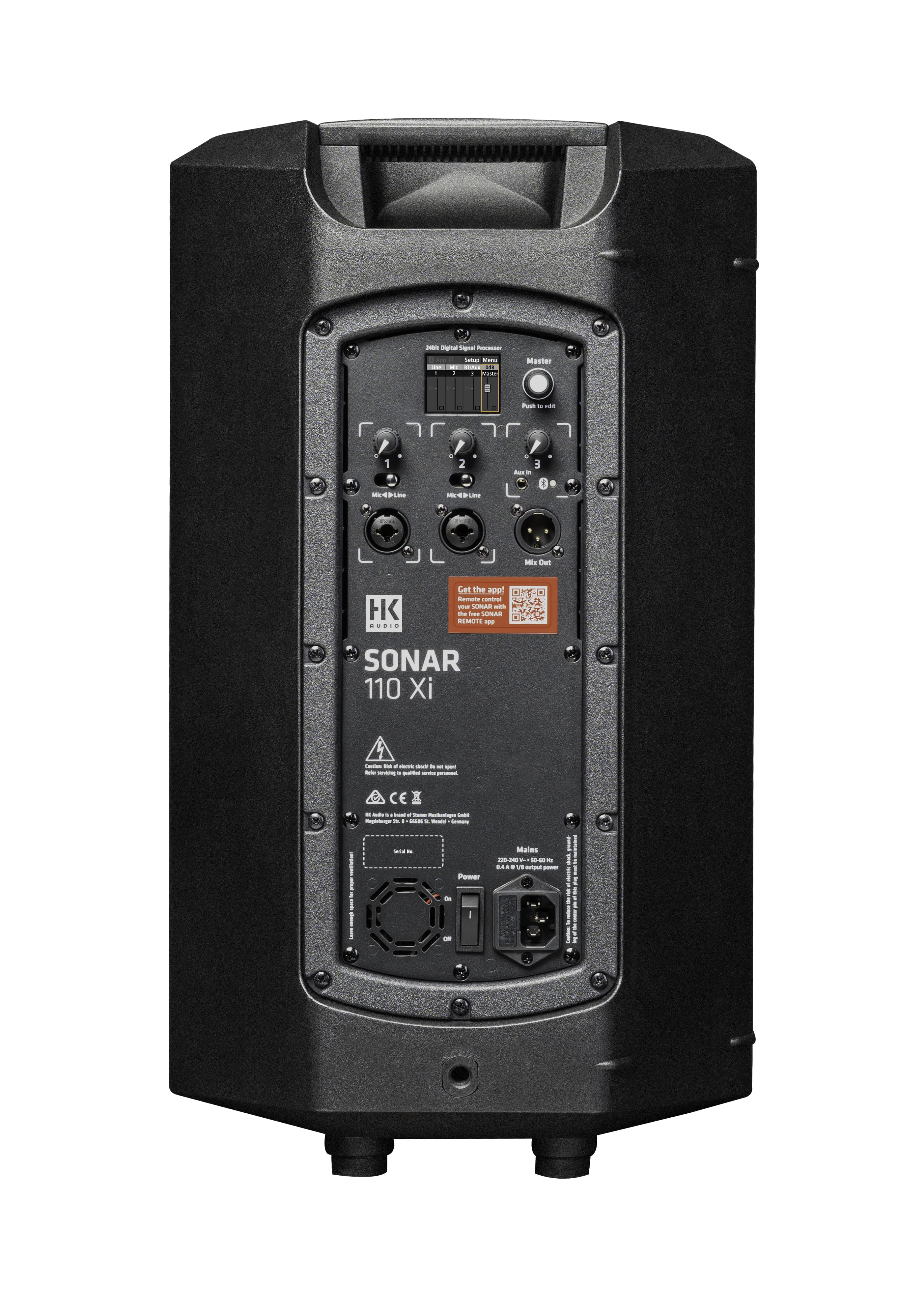

It works as a standalone system rather than just a powered box. Two XLR/jack combo inputs take microphone or line level, a 3.5 mm stereo mini jack and Bluetooth 5.0 handle playback, and each channel gets its own level and three-band EQ set through a rotary control and a 1.83-inch colour display. A mix output on XLR feeds a second cabinet, and DSP covers level metering, a low-cut filter, delay, and pre or post master output. The SONAR REMOTE app for iOS and Android reaches the same controls from the room.
