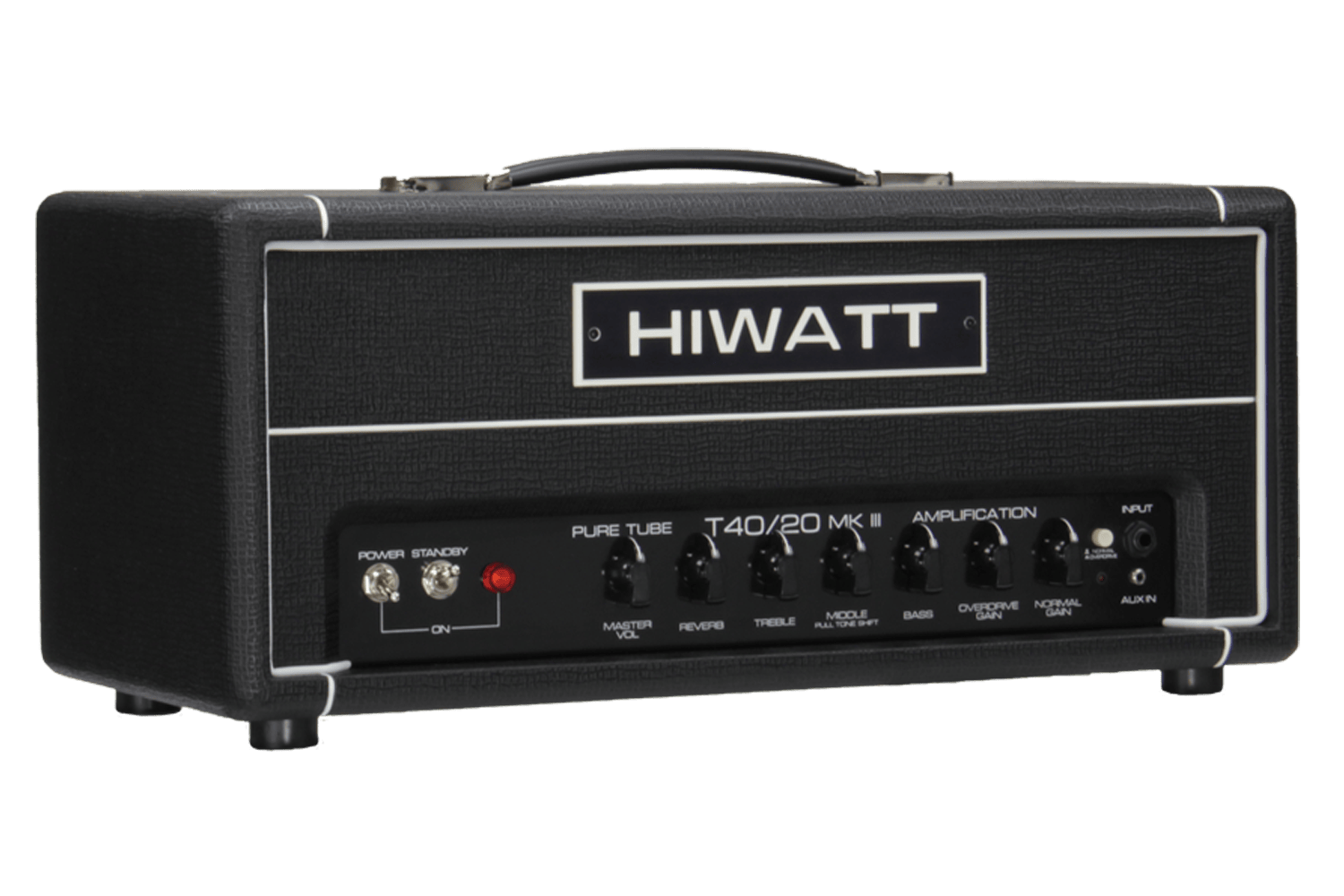

Hiwatt T40/20 Head

The T40/20 head is the top of Hiwatt's UK-designed Tube Series: the Hiwatt preamp into a touch-sensitive overdrive channel, pushed through four EL84s, with power scaling that halves the output when the room is smaller than the amp.

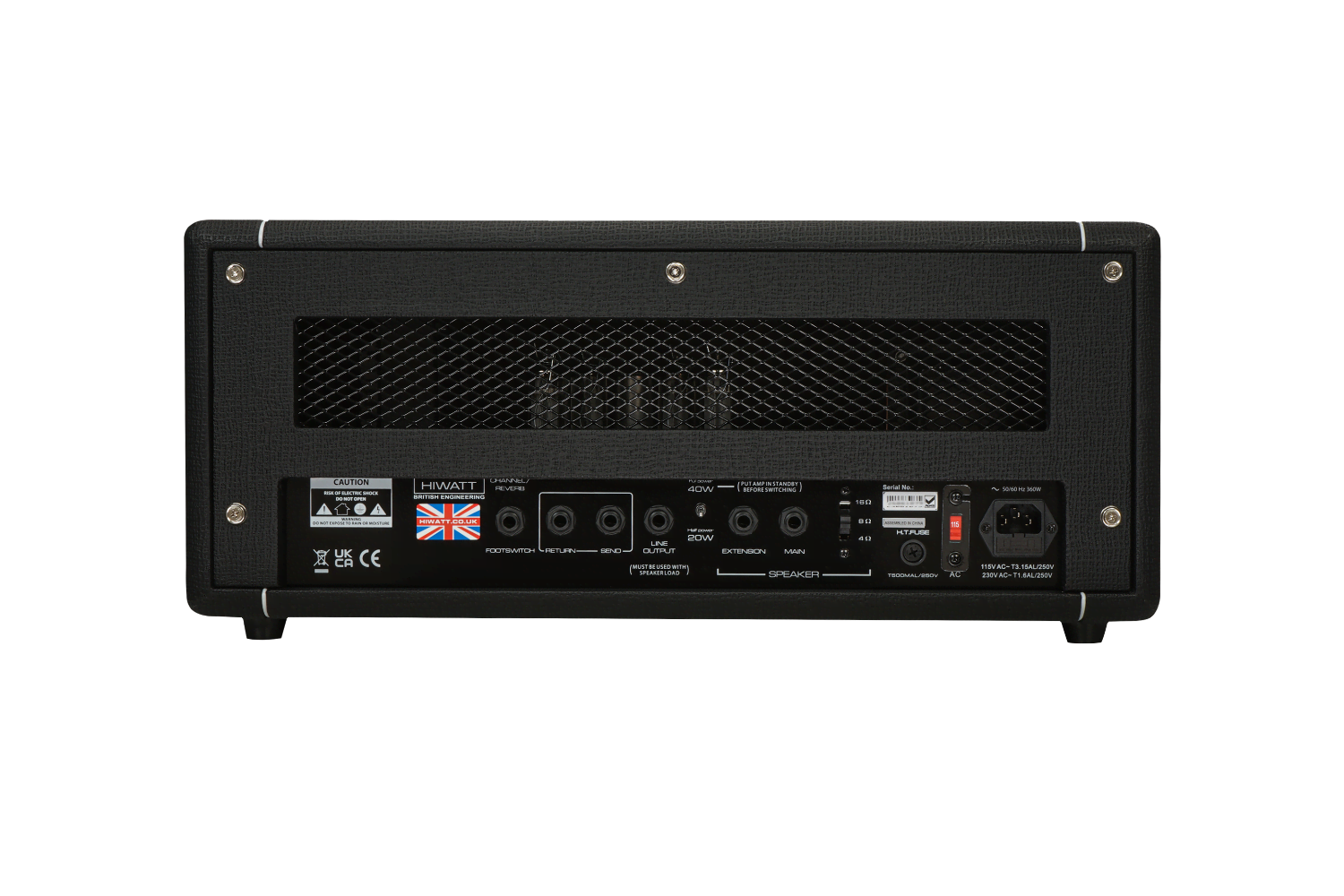

The 2024 redesign widened the EQ and revoiced the gain channel, and the Middle control pulls out for a further tone shift. Two ECC83s and an ECC82 handle the preamp, a true spring reverb tank and an effects loop are both footswitchable, and the rear panel carries an extension speaker jack and a line output.

Channels	Normal, Overdrive
Inputs	1/4" Normal/Overdrive (Channel Selector); 3.5mm AUX Input; 1/4" Effects Loop Return; 1/4" Channel/Reverb Footswitch Input
Outputs	1/4" Extension Speaker, 1/4" Effect Loop Send, 1/4" Line Output
Preamp Valves	2 x ECC83 (12AX7), 1 x ECC82 (12AU7)
Output Valves	4 x EL84
Controls	Master Volume; Reverb Level; 3-Band EQ shared by both channels - Treble, Middle (Pull potentiometer for Tone Shift), Bass; Overdrive Gain; Normal Gain; Normal/Overdrive Channel Toggle; Standby - On/Off; Mains - On/Off
Power Stage	Cathode-biased Class A
Construction	Birch ply
