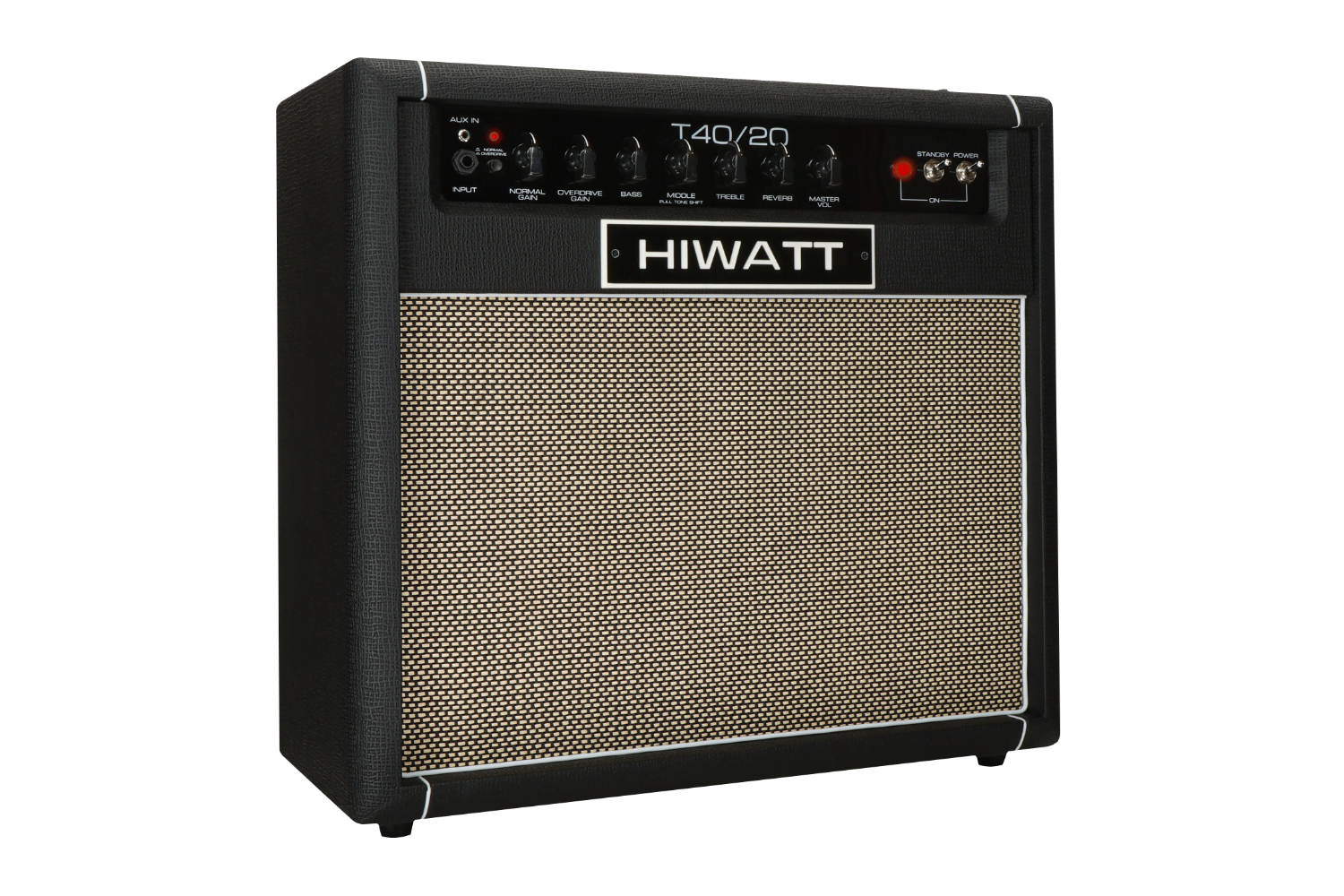

Hiwatt T40/20 Combo 1x12

Forty watts of EL84 power into one 12-inch Octapulse 100-12, wired at 8 ohms. The T40/20 1x12 combo is the Tube Series amp that covers most gigs on its own.

Power scaling takes it to 20 watts when the headroom is not wanted, and the 2024 redesign brought a wider EQ and a revoiced gain channel with more overdrive on tap. Two ECC83s and an ECC82 run the preamp; behind them sit a true spring reverb tank and an effects loop, both footswitchable, plus a line output.

Wattage	Switchable - 40W or 20W
Channels	Normal, Overdrive

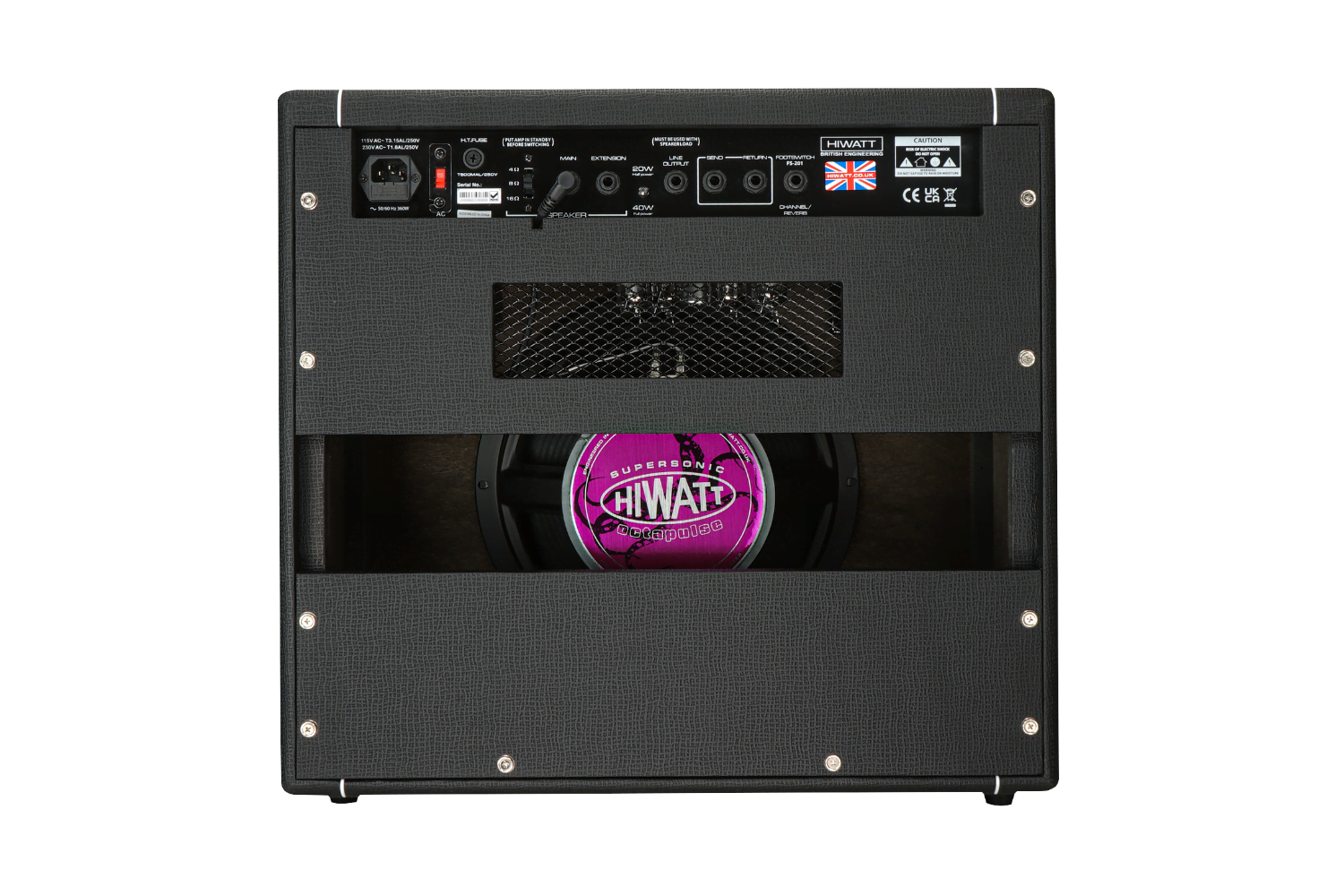

Inputs	1/4" Normal/Overdrive (Channel Selector); 3.5mm AUX Input; 1/4" Effects Loop Return; 1/4" Channel/Reverb Footswitch Input
Outputs	1/4" Extension Speaker, 1/4" Effect Loop Send, 1/4" Line Output
Preamp Valves	2 x ECC83 (12AX7), 1 x ECC82 (12AU7)
Output Valves	4 x EL84
Controls	Master Volume; Reverb Level; 3-Band EQ shared by both channels - Treble, Middle (Pull potentiometer for Tone Shift), Bass; Overdrive Gain; Normal Gain; Normal/Overdrive Channel Toggle; Standby - On/Off; Mains - On/Off
Impedance	8Ω
Speaker	Hiwatt Octapulse 100-12, 100 W, 12-inch
Reverb	True spring reverb, footswitchable
Power Stage	Cathode-biased Class A
Construction	Birch ply
