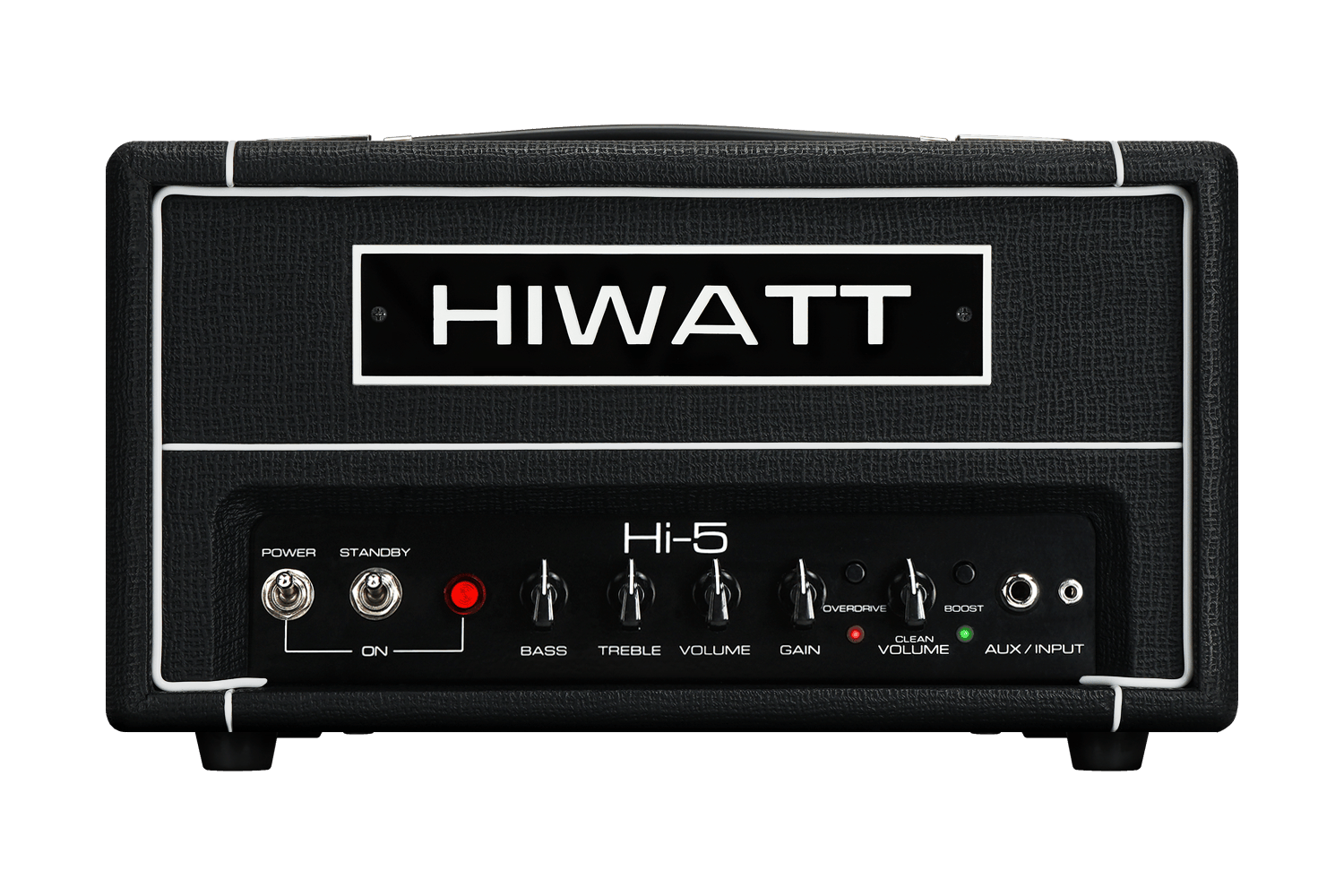

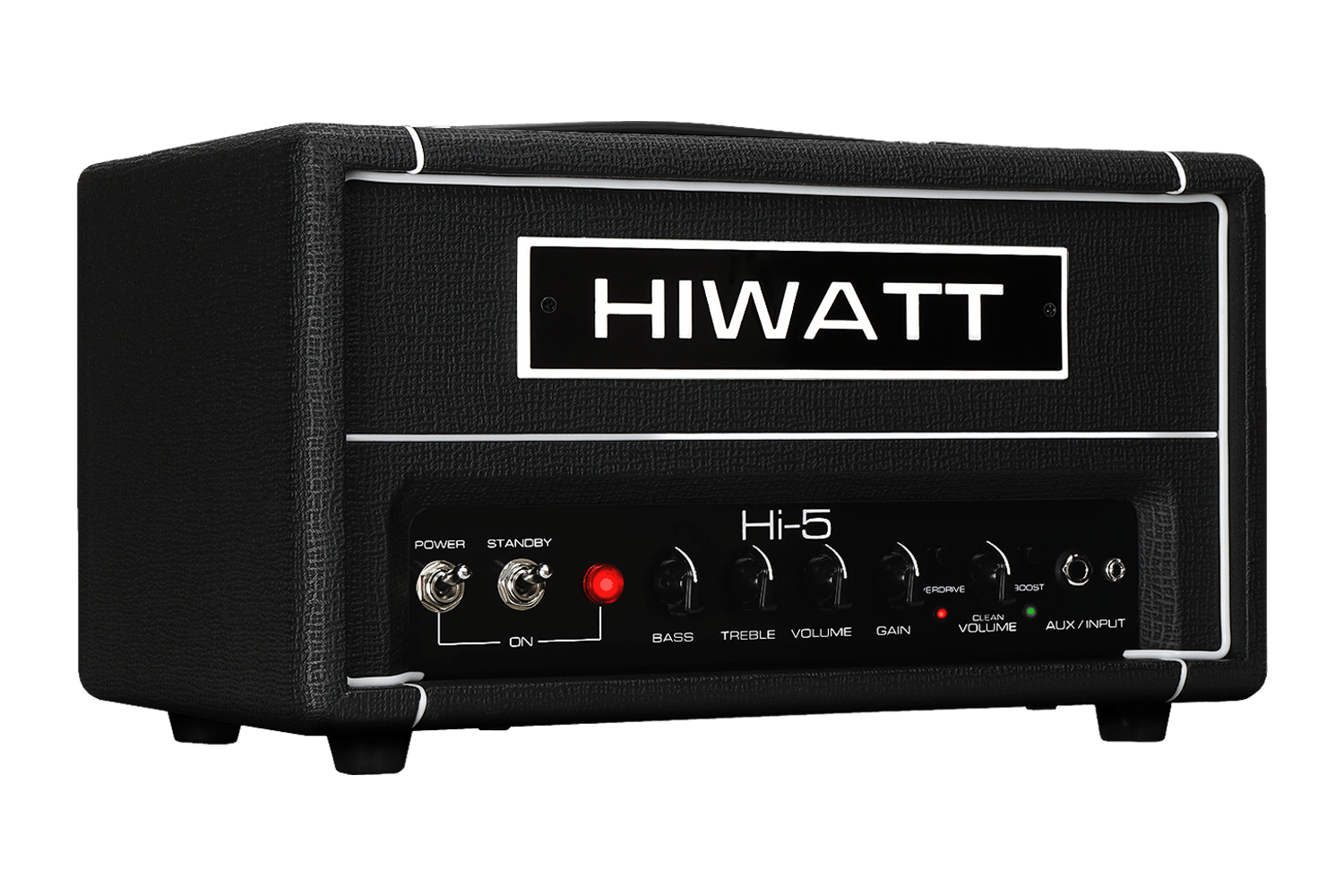

Hiwatt Hi-5 Head

The Hi-5 head is a five-watt valve amplifier the size of a lunchbox: one ECC83 into one EL84, cathode-biased Class A, running into whatever cabinet is already in the room.

Two channels came with the 2025 revision, along with a valve boost and a post-preamp effects loop. The clean side is voiced for the punchy, forward Hiwatt tone and the overdrive side goes from light compression to full growl without losing definition. Its speaker outputs cover a single 8-ohm cabinet or a 4-ohm and 2 x 8-ohm arrangement, and there is a 3.5mm aux input for playing along.

Wattage	5W
Channels	Clean, Overdrive
Inputs	1/4" Instrument Input; 3.5mm AUX Input

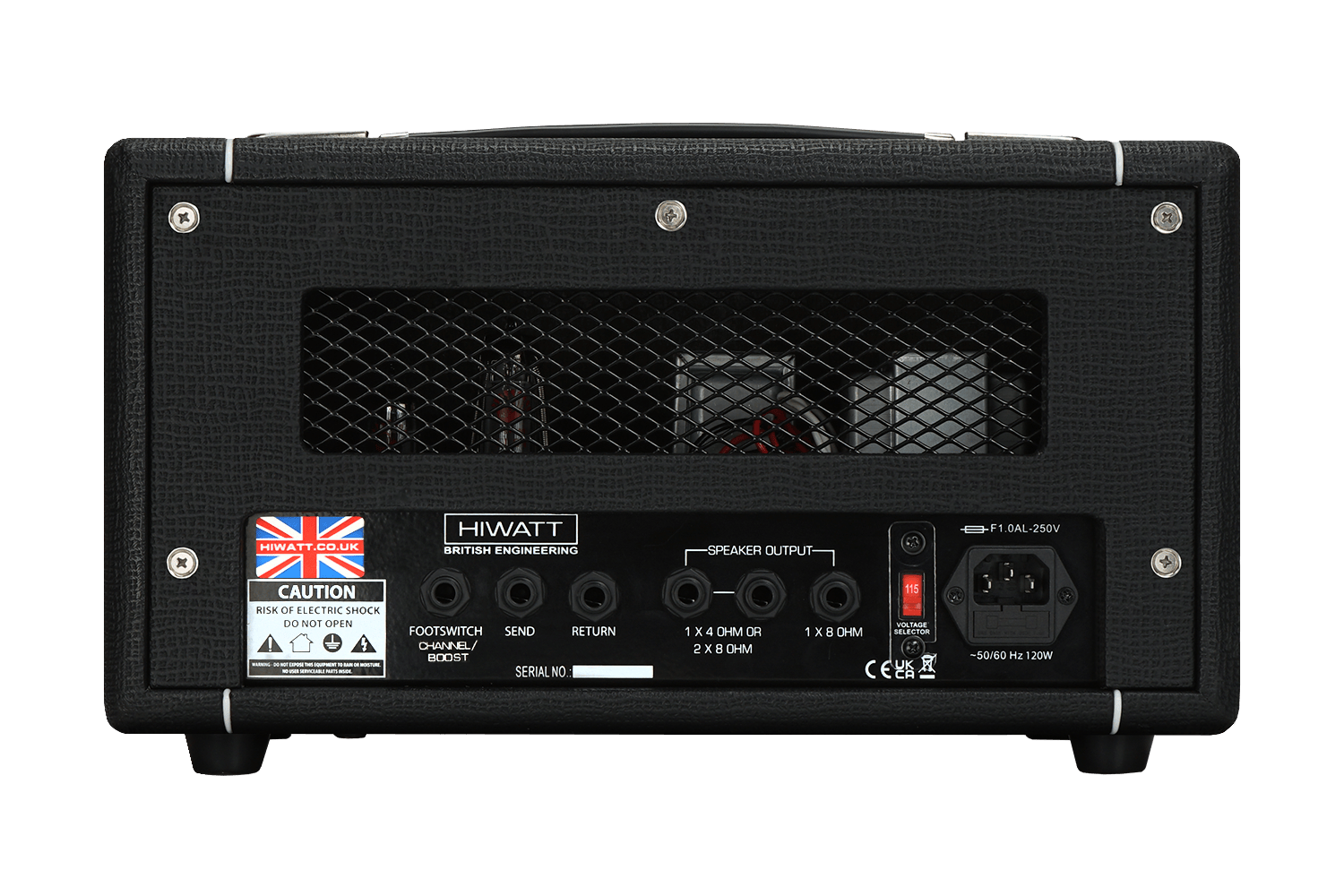

Outputs	1/4" Speaker Out (1x8 Ohm), 2 x 1/4" Speaker Out (1x4 Ohm or 2x8 Ohm)
Preamp Valves	1 x ECC83 (12AX7)
Output Valves	1 x EL84
Controls	Clean Channel Volume; Clean/Overdrive Channel Toggle; Overdrive Channel Gain; Overdrive Channel Volume; 2-Band EQ shared by both channels - Treble, Bass; Standby - On/Off; Mains - On/Off
Impedance	4 Ω or 8 Ω (see Outputs)
Power Stage	Cathode-biased Class A
Construction	Birch ply
