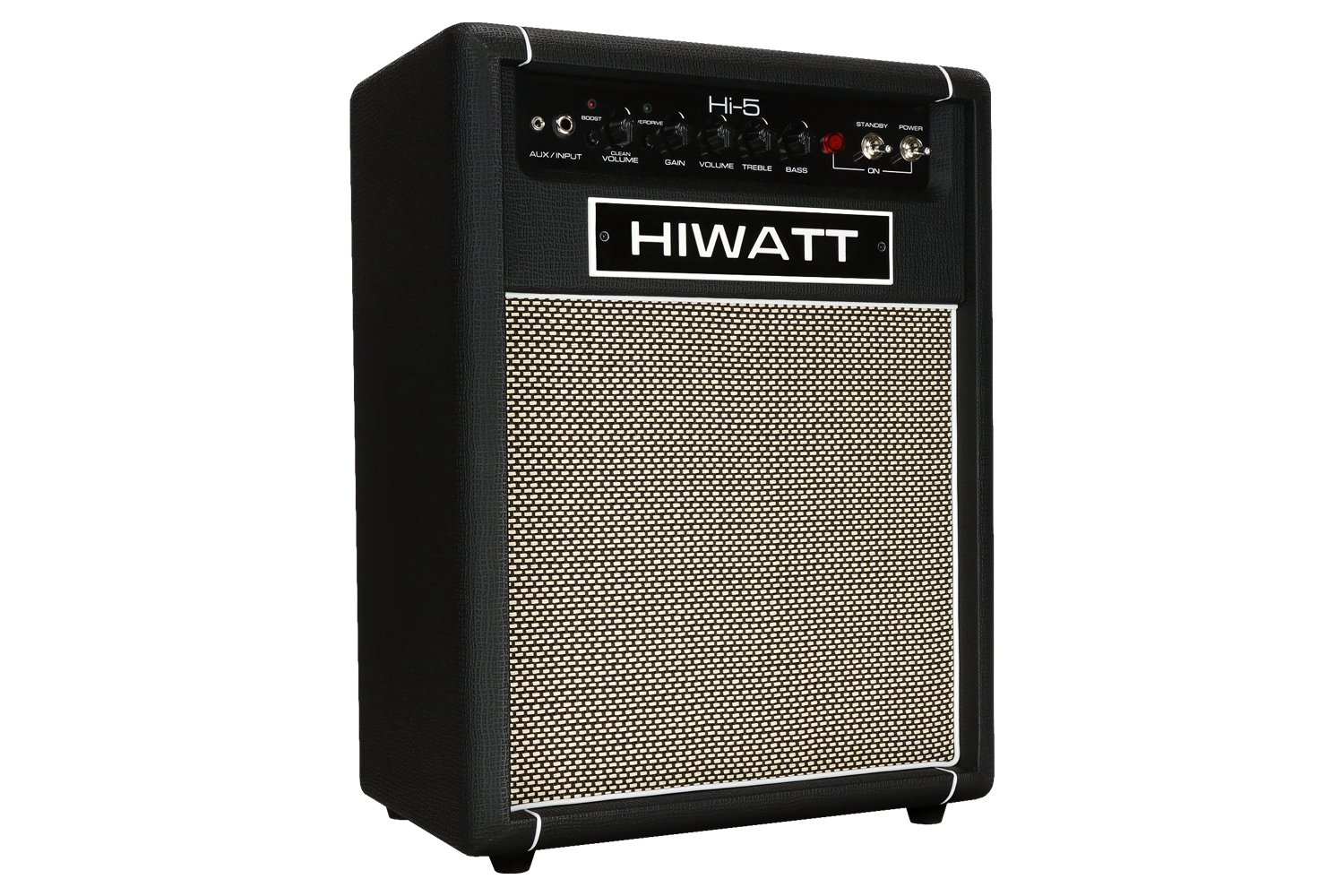

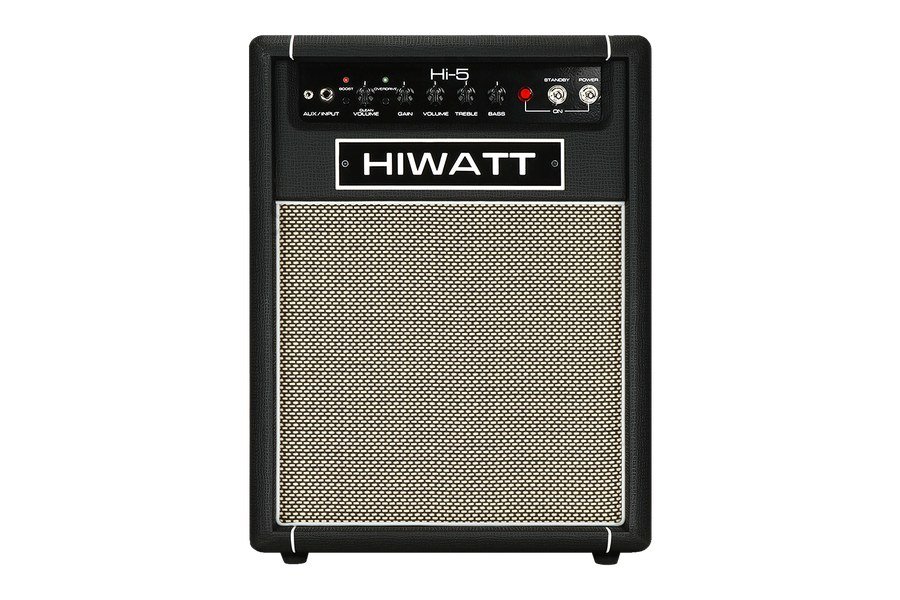

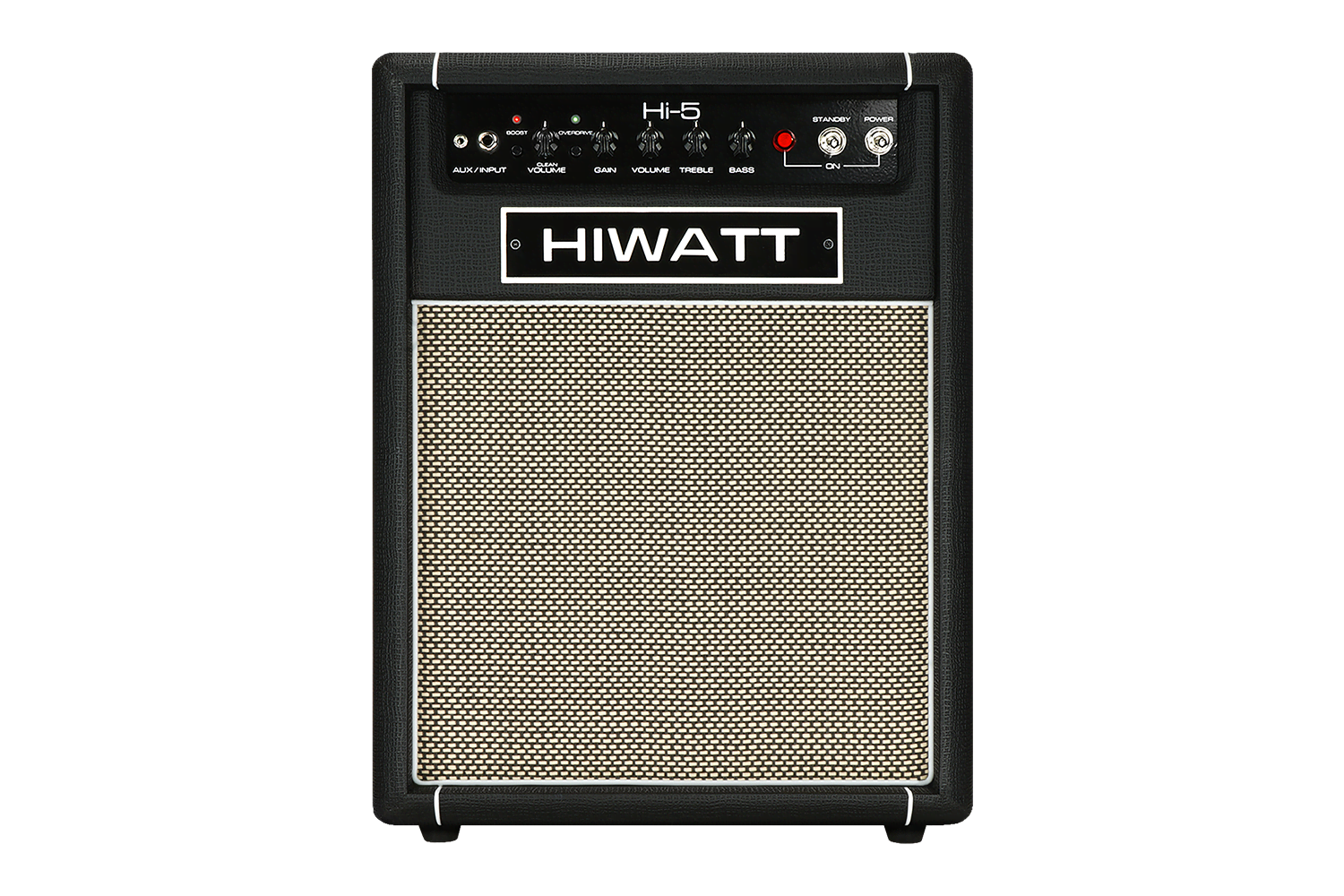

Hiwatt Hi-5 Combo 1x12

Five watts, one EL84, one ECC83, and a 12-inch Octapulse 100 to put it through. The Hi-5 combo is the lunchbox amp in Hiwatt's Tube Series, and the 2025 revision added channel switching, a valve boost and a post-preamp effects loop to what used to be a single-channel amp.

The clean channel is the sparkly, forward Hiwatt voice; the overdrive channel runs from lightly compressed breakup to a hard chug and keeps its touch sensitivity the whole way. The power stage is cathode-biased Class A. Outputs are one 1/4-inch jack and a pair for 4 or 8 ohm loads, and channel switching needs the FS202-LJ-Hi-5 footswitch.

Wattage	5W
Channels	Clean, Overdrive
Inputs	1/4" Instrument Input; 3.5mm AUX Input
Outputs	1/4" Speaker Out, 2 x 1/4" Speaker Out
Preamp Valves	1 x ECC83 (12AX7)
Output Valves	1 x EL84
Controls	Clean Channel Volume; Clean/Overdrive Channel Toggle; Overdrive Channel Gain; Overdrive Channel Volume; 2-Band EQ shared by both channels - Treble, Bass; Standby - On/Off; Mains - On/Off
Impedance	4 Ω or 8 Ω (see Outputs)
Speaker	Hiwatt Octapulse 100, 100 W, 12-inch
Power Stage	Cathode-biased Class A
Footswitch	FS202-LJ-Hi-5 required for channel switching
Construction	Birch ply
